HD F550 B - Weed Eater Front-Tine Tiller (1996) BELT GUARD AND PULLEY Parts Diagram

Front-Tine Tiller

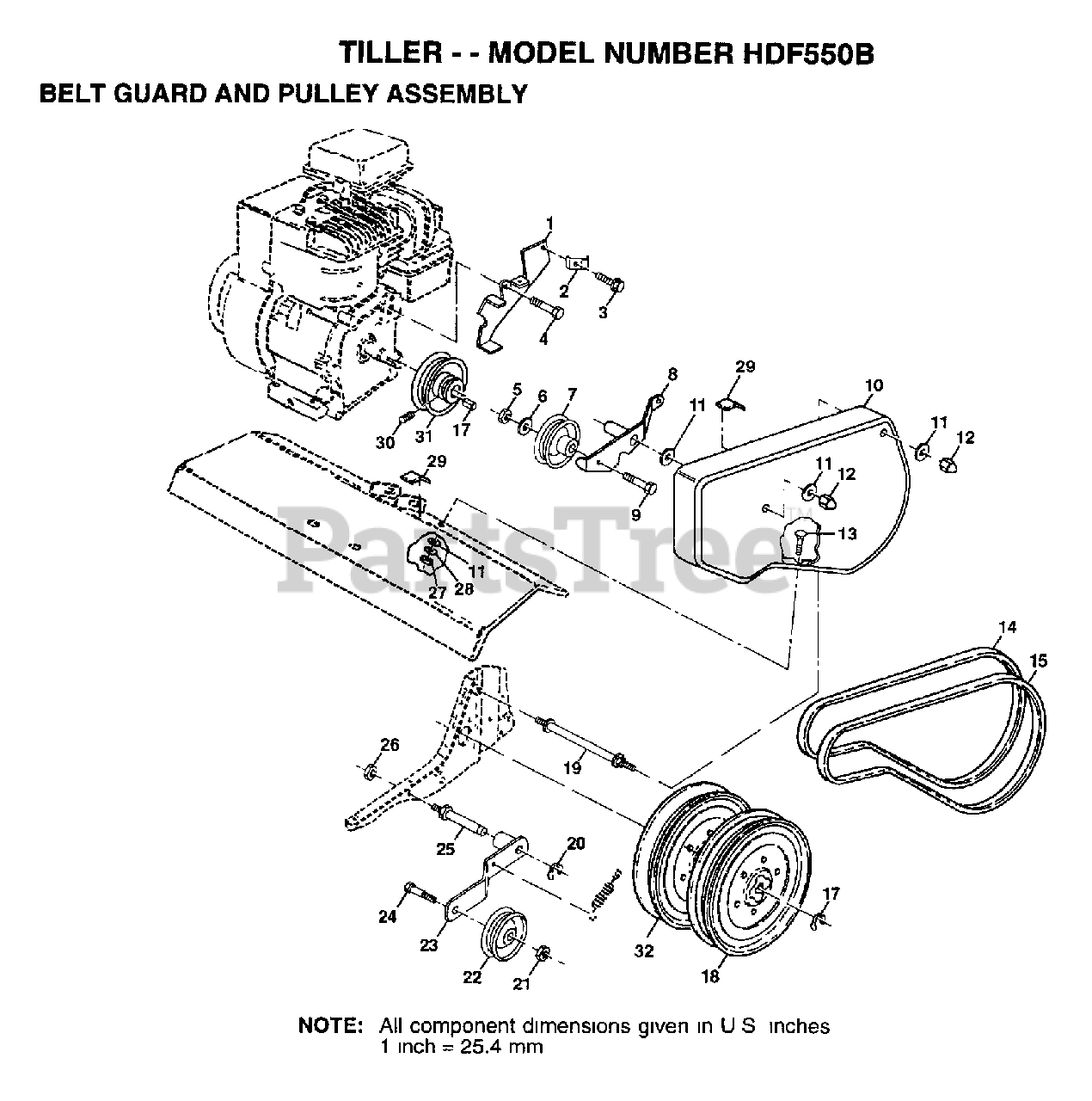

BELT GUARD AND PULLEY Parts Diagram

  • Title
1

Electrolux/AYP 123643X

SUB= 159268
(Superseded to 532446043)

$

$

Not available

2

Electrolux/AYP 9484R

CONDIUT CLIP T
(Superseded to 532009484)

$6.49

$

In Stock, only 4 left!

0

3

Electrolux/AYP 86777

SUB= 750097
(Superseded to 532086777)

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 2009J

PULLEY W/SPACER
(Superseded to 583728401)

$17.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 127180X

ARM.ASM.REV.IDLER
(Superseded to 583673101)

$11.99

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 106970X550

GUARD BELT
(Superseded to 583653501)

$14.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 104213X

NUT-CAP TI
(Superseded to 583644101)

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 72140405

BOLT T
(Superseded to 872140405)

$7.49

$

In Stock, Qty 7

0

14

Electrolux/AYP 133035

BELT-V
(Superseded to 532133035)

$42.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 2614J

SUB= TH3H440
(Superseded to 599385301)

$17.99

$

In Stock, Qty 5

0

17

Electrolux/AYP 12000028

SUB= 2267J
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

18

Electrolux/AYP 151236

"SHEAVE,TRANS.""D"""
(Superseded to 532151236)

$34.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 110550X

BOLT TI
(Superseded to 583660201)

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 12000036

KLIP RING TI
(Superseded to 812000036)

$6.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

22

$

$

Not available

23

Electrolux/AYP 674A30

IDLER ARM TI

$

$

Not available

24

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 106968X

SHAFT IDLER TI
(Superseded to 532106968)

$15.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73350500

JAM NUT TI
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 23200404

SET SCREW
(Superseded to 583610201)

$6.49

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 101189L

ENGINE PULLEY TI
(Superseded to 532101189)

$66.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 151223

SHEAVE.TRANS
(Superseded to 532151223)

$39.99

$

Usually ships in 3-10 days

0
