HD 800 HW - Husqvarna Walk-Behind Mower (Original) DRIVE Parts Diagram

Walk-Behind Mower

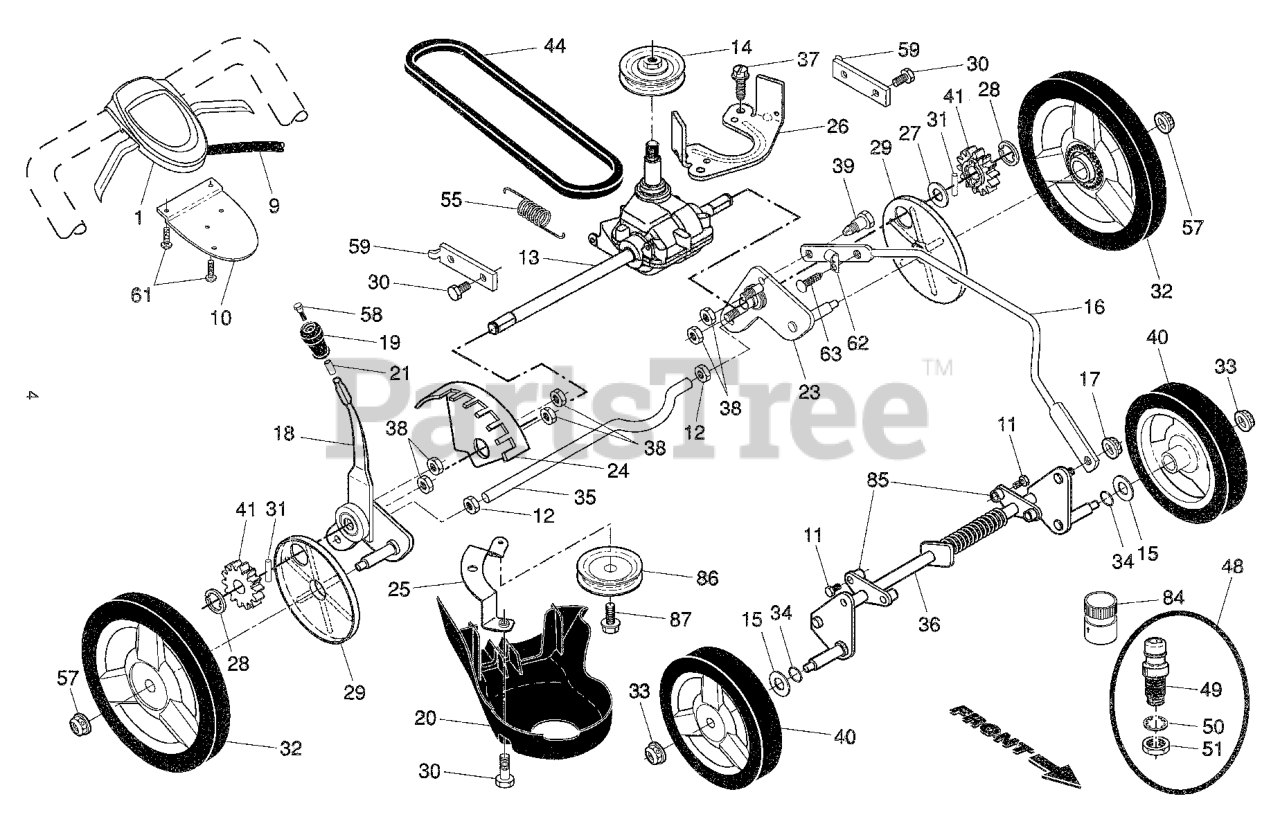

DRIVE Parts Diagram

  • Title

49

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

$18.99

$

In Stock, Qty 8

0

86

Husqvarna 580364301

RP PULLEY.AWD.IDLER
(Superseded to 587969201)

$14.99

$

In Stock, Qty 20+

0

20

Husqvarna 580806901

COVER.REAR.DRIVE.22+2013

$31.99

$

In Stock, Qty 14

0

48

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

$18.99

$

In Stock, Qty 8

0

25

Husqvarna 581313802

BRACKET.DRIVE.COVER.RGD.

$11.99

$

Usually ships in 3-10 days

0

32

Husqvarna 581336701

WHEEL.11X2.DRIVE.RAD2.BB.GREY

Note: For 96143008802, 96143008801

$56.99

$

In Stock, Qty 14

0

62

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 10

0

40

Husqvarna 532410831

WHEEL & TIRES ASSY, FRONT
(Superseded to 532401273)

Note: For 96143008803, 96143008802, 96143008801

$37.99

$

In Stock, Qty 15

0

38

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 9

0

55

Husqvarna 581351301

SPRING.RETURN.AUTO.

Note: For 96143008803, 96143008802, 96143008801

$10.99

$

In Stock, Qty 20+

0

34

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

85

Husqvarna 532439077

BRACKET.FRT.AXLE.SUPPORT

$26.99

$

In Stock, Qty 20+

0

87

Husqvarna 581127601

SCREW

$7.99

$

In Stock, Qty 20+

0

27

Husqvarna 819171216

WASHER
(Superseded to 734117771)

$6.49

$

In Stock, only 2 left!

0

50

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 532442824

WHEEL.11.ALPHA.GRY.EXT*
(Superseded to 581336701)

Note: For 96143008800

$56.99

$

In Stock, Qty 14

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

36

Husqvarna 532442207

AXLE.ASM.FRONT.RGD.CLEAR.ZINC

$

$

Not available

29

Husqvarna 532428781

COVER.DUST.WHEEL.RGD.HW

Note: For 96143008802, 96143008801, 96143008800

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532430030

ROD.CONNECTING.RGD.22+.HW.BLAC

$20.99

$

In Stock, only 1 left!

0

59

Husqvarna 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

37

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

15

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 14

0

61

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532194128

PULLEY

$20.99

$

In Stock, Qty 8

0

18

Husqvarna 586691701

KIT.SEL.ASM.22+RG.11"HW.BLKNB

$

$

Not available

29

Husqvarna 585270701

COVER.DUST.WHEEL.RGD.HW.NEW

Note: For 96143008803

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532442822

WHEEL.8IN.H3SPK.ALPHA.
(Superseded to 532442855)

Note: For 96143008800

$46.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532435242

SCREW.PLASTIC.ANCHOR.5/16

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532433996

KNOB.SEL.SPRING.22+.SP.RIB.BLK

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532406558

SPRING

Note: For 96143008800

$8.99

$

In Stock, Qty 15

0

44

Husqvarna 532406557

RP.BELT.DRIVE.RGD.SS.WALK
(Superseded to 580364604)

Note: For 96143008803, 96143008802, 96143008801

$13.99

$

In Stock, Qty 20+

0

12

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, Qty 9

0

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, Qty 11

0

41

Husqvarna 532428783

PINION.12.TEETH.RGD.22+HW

$7.99

$

In Stock, Qty 14

0

57

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 20+

0

24

Husqvarna 532433511

BRACKET.WHL.ADJ.9.POS.W/PAD

$15.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532431650

CABLE.CONTROL.22RGD.GEN2

Note: For 96143008801, 96143008800

$43.99

$

In Stock, Qty 20+

0

30

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

32

Husqvarna 585265601

RP WHEEL.11.RAD3.460.BB2.NEW
(Superseded to 585265603)

Note: For 96143008803

$34.99

$

In Stock, Qty 20+

0

9

Husqvarna 581952101

CABLE.DRIVE.RWD.WALK.

Note: For 96143008803, 96143008802

$34.99

$

In Stock, Qty 20+

0

51

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

1

Husqvarna 581950505

CONTROL.AW2.22+RG.BS.GEN.BK/BK
(Superseded to 589818808)

$47.99

$

In Stock, Qty 20+

0

13

Husqvarna 581680801

TRANSMISSION.22+AWD.WALK.MOWER

$148.99

$

In Stock, Qty 19

0

58

Husqvarna 532435241

SCREW.12-14X1.500

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, Qty 20+

0

63

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, Qty 6

0

11

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

35

Husqvarna 532430598

AXLE.REAR.RGD

$45.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532421527

BELT.DRIVE.RGD.PLUS

Note: For 96143008800

$26.99

$

In Stock, Qty 12

0

26

Husqvarna 532426066

BRACKET.TRANS.BELT.KEEPER.BZP
(Superseded to 589318302)

$

$

Not available

84

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 20+

0

23

Husqvarna 585281901

ADJUSTER.ARM.ASM.LT.SP.HW.BZP

Note: LH

$

$

Not available
