HD 800 BBC (961430089-03) - Husqvarna Walk-Behind Mower (2014-01) FRAME Parts Diagram

Walk-Behind Mower

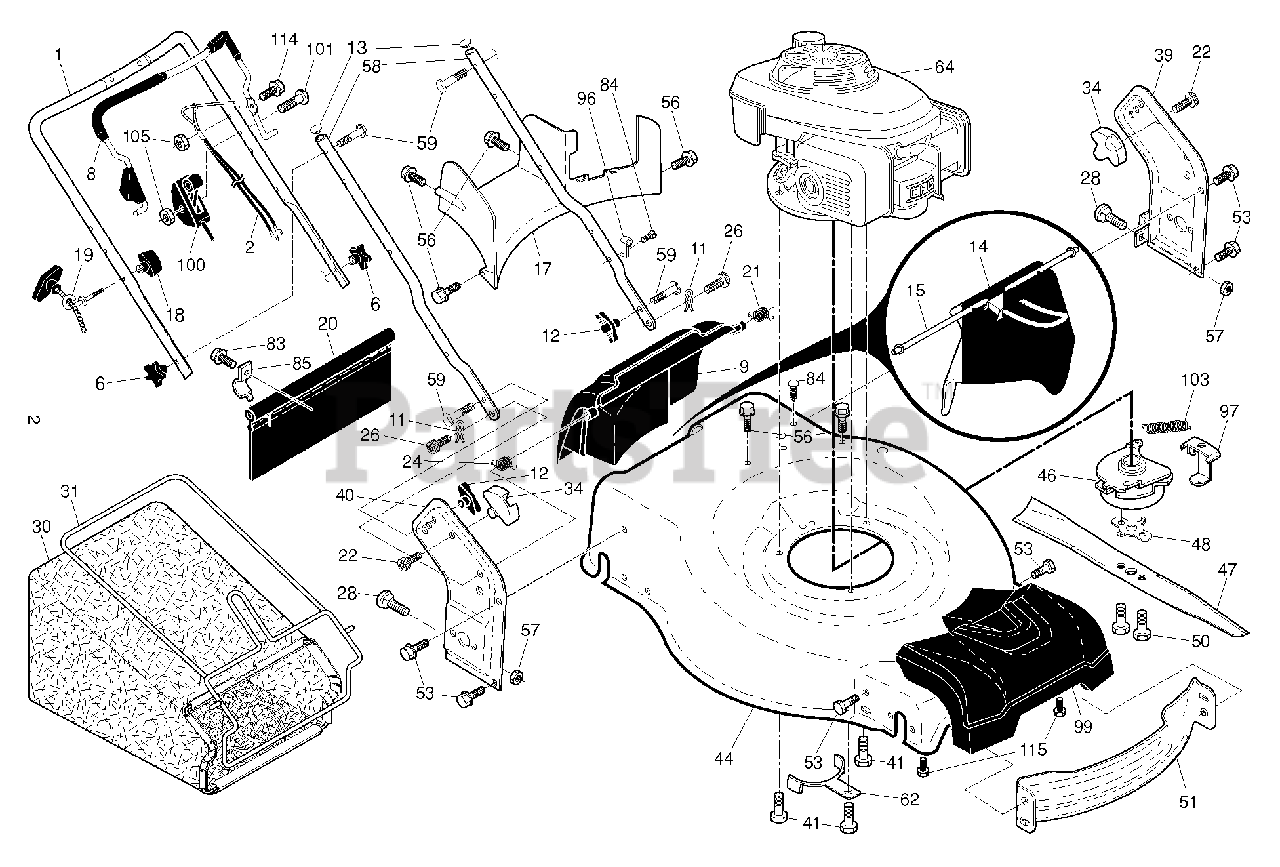

FRAME Parts Diagram

  • Title

1

Husqvarna 585854806

HANDLE.UP.3POS.BS.AW2.GREY

$

$

Not available

2

Husqvarna 583864201

CABLE.BBC.HONDA.NO.RDI.22+

$37.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 585645312

LEVER.ASM.BBC.HONDA.ERGO.OM.O
(Superseded to 587564112)

$

$

Not available

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$56.99

$

In Stock, Qty 20+

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 20+

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 20+

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532437132

DEFLECTOR.CHUTE.22+REAR

$

$

Not available

15

Husqvarna 532437273

HANDLE DEFLECTOR.22+REAR

$18.99

$

In Stock, only 2 left!

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, only 4 left!

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

20

Husqvarna 532444501

SKIRT.REAR.22PLUS.RGD.LW(2 2MC

$13.99

$

In Stock, Qty 20+

0

21

Husqvarna 532419949

SPRING.LH.BLACK

$6.49

$

In Stock, Qty 20+

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

24

Husqvarna 532419948

SPRING.RH.GRAY

$6.49

$

In Stock, Qty 20+

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.99

$

In Stock, Qty 20+

0

28

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 580943405

GBAG.BA85028ER.GRY/ORG
(Superseded to 580943401)

$56.99

$

In Stock, Qty 20+

0

31

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 585900703

BRACKET.ASM.HANDLE.LT.22+.GREY

$28.99

$

In Stock, Qty 7

0

40

Husqvarna 585900803

BRACKET.ASM.HANDLE.RT.22+.GREY

$

$

Not available

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 12

0

44

Husqvarna 581708341

HOUSING.22+R.RG.HD.WO.LT/ST.OR

$

$

Not available

46

000000000

Note: CONTACT HONDA 1-800-426-7701

$

$

Not available

47

Husqvarna 532438388

BLADE.3N1.22+W/HONDA.BBC.PREM

$27.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532441768

SPACER.BLADE.HONDA.BBC

$62.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532180460

BOLT.BLADE

$9.99

$

In Stock, Qty 12

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 585908203

HANDLE.LOWER.22+.BT.GRAY
(Superseded to 593270403)

$17.99

$

In Stock, Qty 7

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

62

Husqvarna 532425711

BRACKET.KEEPER.BELT

$

$

Not available

64

000000000

Note: HONDA GCV160-LAOBHH FOR SERVICE PARTS 1-800-426-7701

$

$

Not available

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 11

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, Qty 5

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 19

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 10

0

97

Husqvarna 580680302

BRACKET.ASM.BBC.MOUNTING.BZP

$20.99

$

Usually ships in 3-10 days

0

99

Husqvarna 585668702

COVER.ASM.FRONT.HUSQ.22+RGD

$43.99

$

Usually ships in 3-10 days

0

100

Husqvarna 532439468

CONTROL.THROTTLE.HOND.BBC.58.5

$74.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532188365

$

$

Currently unavailable

103

Husqvarna 532180393

SPRING.BBC

$7.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

114

Husqvarna 532199687

SCREW

$4.99

$

Usually ships in 3-10 days

0

115

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

$4.99

$

In Stock, Qty 20+
