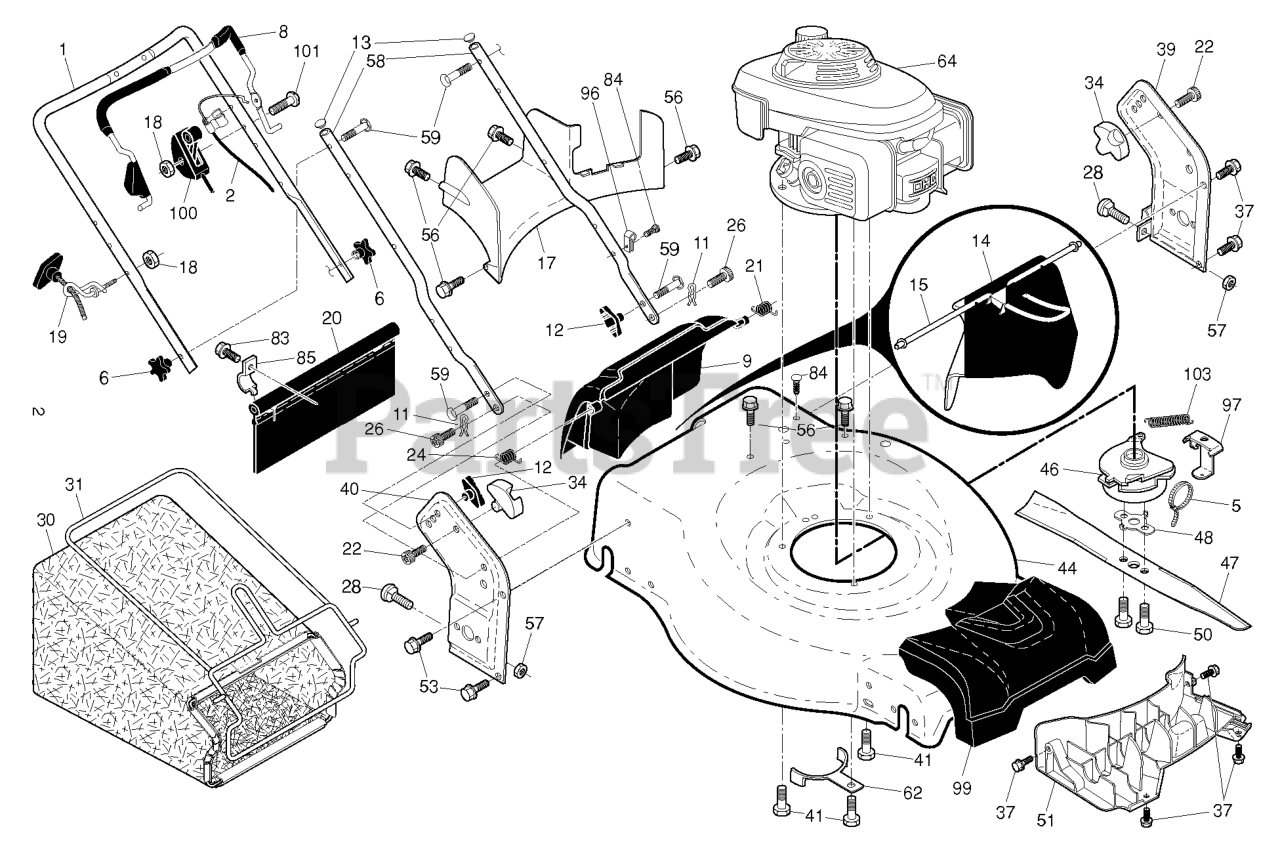

HD 800 BBC (961430089-02) - Husqvarna Walk-Behind Mower (2013-02) FRAME Parts Diagram

Walk-Behind Mower

FRAME Parts Diagram

  • Title
6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 4 left!

0

47

Husqvarna 532438388

BLADE.3N1.22+W/HONDA.BBC.PREM

$27.99

$

In Stock, only 2 left!

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$

$

Not available

30

Husqvarna 580943405

GBAG.BA85028ER.GRY/ORG
(Superseded to 580943401)

$45.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532437345

SCREW.HI-LO.5/16 X.75

$6.49

$

In Stock, Qty 20+

0

15

Husqvarna 532437273

HANDLE DEFLECTOR.22+REAR

$18.99

$

In Stock, only 2 left!

0

18

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 532437132

DEFLECTOR.CHUTE.22+REAR

$

$

Not available

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

8

Husqvarna 580749709

LEVER.ASM.BBC.HONDA.ERGO.OM.O
(Superseded to 587564112)

$

$

Not available

103

Husqvarna 532180393

SPRING.BBC

$5.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532419948

SPRING.RH.GRAY

$6.49

$

In Stock, only 4 left!

0

100

Husqvarna 532439468

CONTROL.THROTTLE.HOND.BBC.58.5

$74.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532438535

HOUSING.22+.RWD.HD.WO/PORT.ORA

$141.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

64

000000000

Note: HONDA GCV160-LAOBHH FOR SERVICE & PARTS 1-800-426-7701

$

$

Not available

20

Husqvarna 532444501

SKIRT.REAR.22PLUS.RGD.LW(2 2MC

$13.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 11

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

50

Husqvarna 532180460

BOLT.BLADE

$9.99

$

In Stock, only 2 left!

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

46

000000000

Note: CONTACT HONDA 1-800-426-7701

$

$

Not available

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

$

$

Currently unavailable

21

Husqvarna 532419949

SPRING.LH.BLACK

$6.49

$

In Stock, Qty 9

0

1

Husqvarna 581844701

HANDLE.UPPER.3.POS.BS.AW2.GREY
(Superseded to 580638706)

$

$

Not available

39

Husqvarna 581353702

BRACKET.ASM.HNDL.LT.22+.GREY

$

$

Not available

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

28

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 581353602

BRACKET.ASM.HNDL.RT.22+.GREY

$

$

Not available

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

37

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 6

0

62

Husqvarna 532425711

BRACKET.KEEPER.BELT

$

$

Not available

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

31

Husqvarna 532419951

RB FRAME.GBAG.22PLUS
(Superseded to 585054702)

$34.99

$

In Stock, Qty 6

0

99

Husqvarna 532437389

COVER.ASM.FRONT.SHROUD.HUSQ.

$66.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532441768

SPACER.BLADE.HONDA.BBC

$28.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$45.99

$

Usually ships in 3-10 days

0

2

Husqvarna 583864201

CABLE.BBC.HONDA.NO.RDI.22+

$37.99

$

Usually ships in 3-10 days

0

51

Husqvarna 581238901

BAFFLE.FRONT.22+PLASTIC.(2 2)

$47.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

97

Husqvarna 580680302

BRACKET.ASM.BBC.MOUNTING.BZP

$17.99

$

Usually ships in 3-10 days

0
