HD 800 BBC (961430089-01) - Husqvarna Walk-Behind Mower (2011-11) DRIVE Parts Diagram

Walk-Behind Mower

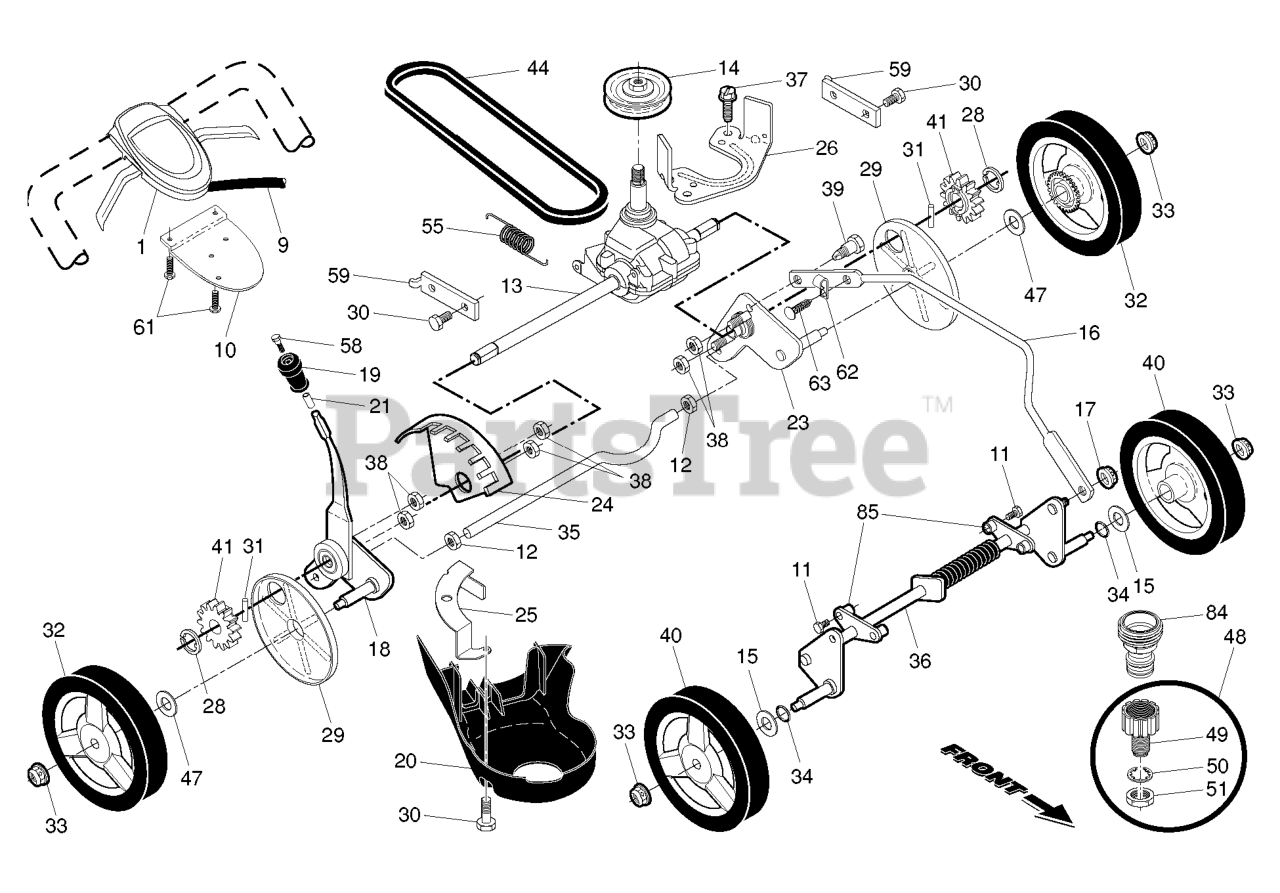

DRIVE Parts Diagram

  • Title

19

Husqvarna 532433996

KNOB.SEL.SPRING.22+.SP.RIB.BLK

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532434564

RP TRANSMISSION.22+.RGD.AW2/
(Superseded to 581680801)

$148.99

$

In Stock, Qty 20+

0

55

Husqvarna 532406558

SPRING

$8.99

$

In Stock, Qty 7

0

63

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 532430995

RB CTRL.AW2.22+RGD.BS.GRY/BLK
(Superseded to 589818808)

Note: Includes Cable

$47.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532435241

SCREW.12-14X1.500

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

84

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 5

0

30

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

59

Husqvarna 532442113

BRACKET.SUPPORT.22+RWGD.BZP

$

$

Not available

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532435242

SCREW.PLASTIC.ANCHOR.5/16

$5.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532404845

PAWL, DRIVE

$5.99

$

In Stock, Qty 5

0

37

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 6

0

10

Husqvarna 532432790

BRACKET.DRIVE.CONTR.GEN2.BLACK

$

$

Not available

44

Husqvarna 532437799

BELT.DRIVE.RGD.BBC

$

$

Not available

39

Husqvarna 532407059

SHOULDER BOLT SEMI GIMLET PT.

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 532404835

PINIION.14.TOOTH.RGD

$6.99

$

In Stock, only 2 left!

0

12

Husqvarna 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

48

Husqvarna 532438489

KIT.WASH-OUT.PORT.ZINC.WALK

$18.99

$

In Stock, only 1 left!

0

29

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, only 1 left!

0

25

Husqvarna 532426065

BRACKET.DRIVE.COVER.RGD.BZP

$

$

Not available

62

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

40

Husqvarna 532442822

WHEEL.8IN.H3SPK.ALPHA.
(Superseded to 532442855)

$46.99

$

Usually ships in 3-10 days

0

11

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

50

Husqvarna 532415585

WASHER.LOCK.INTERNAL.TOOTH

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 532442823

KIT.WHEEL.442789X460.8"
(Superseded to 532442856)

$

$

Not available

47

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 532439077

BRACKET.FRT.AXLE.SUPPORT

$26.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532193443

PULLEY.1.PIECE

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532430030

ROD.CONNECTING.RGD.22+.HW.BLAC

$20.99

$

In Stock, only 1 left!

0

61

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

15

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

17

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 2 left!

0

49

Husqvarna 532434994

WASHOUT.PORT.ZINC.RGD.22+
(Superseded to 532438489)

$18.99

$

In Stock, only 1 left!

0

26

Husqvarna 532442153

BRACKET.TRANS.BELTKEEP.22+RGD

$

$

Not available

18

Husqvarna 532437869

SELECTOR.ASM.22.PLUS
(Superseded to 532438536)

$

$

Not available

24

Husqvarna 532433511

BRACKET.WHL.ADJ.9.POS.W/PAD

$15.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532430598

AXLE.REAR.RGD

$45.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532415586

LOCKNUT.HEX.WITH.O-RING

$6.49

$

In Stock, only 4 left!

0

36

Husqvarna 532442207

AXLE.ASM.FRONT.RGD.CLEAR.ZINC

$

$

Not available

23

Husqvarna 532437870

ADJUSTER.ARM.ASM.AX.RT.SP.ZC

$

$

Not available

20

Husqvarna 532438397

RP.COVER.REAR.DRIVE.22+
(Superseded to 580806901)

$31.99

$

In Stock, only 1 left!

0

38

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 5

0

34

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532431650

CABLE.CONTROL.22RGD.GEN2

$43.99

$

In Stock, Qty 8

0
