HD 725 E (961430087-02) - Husqvarna Walk-Behind Mower (2013-12) FRAME ENGINE Parts Diagram

Walk-Behind Mower

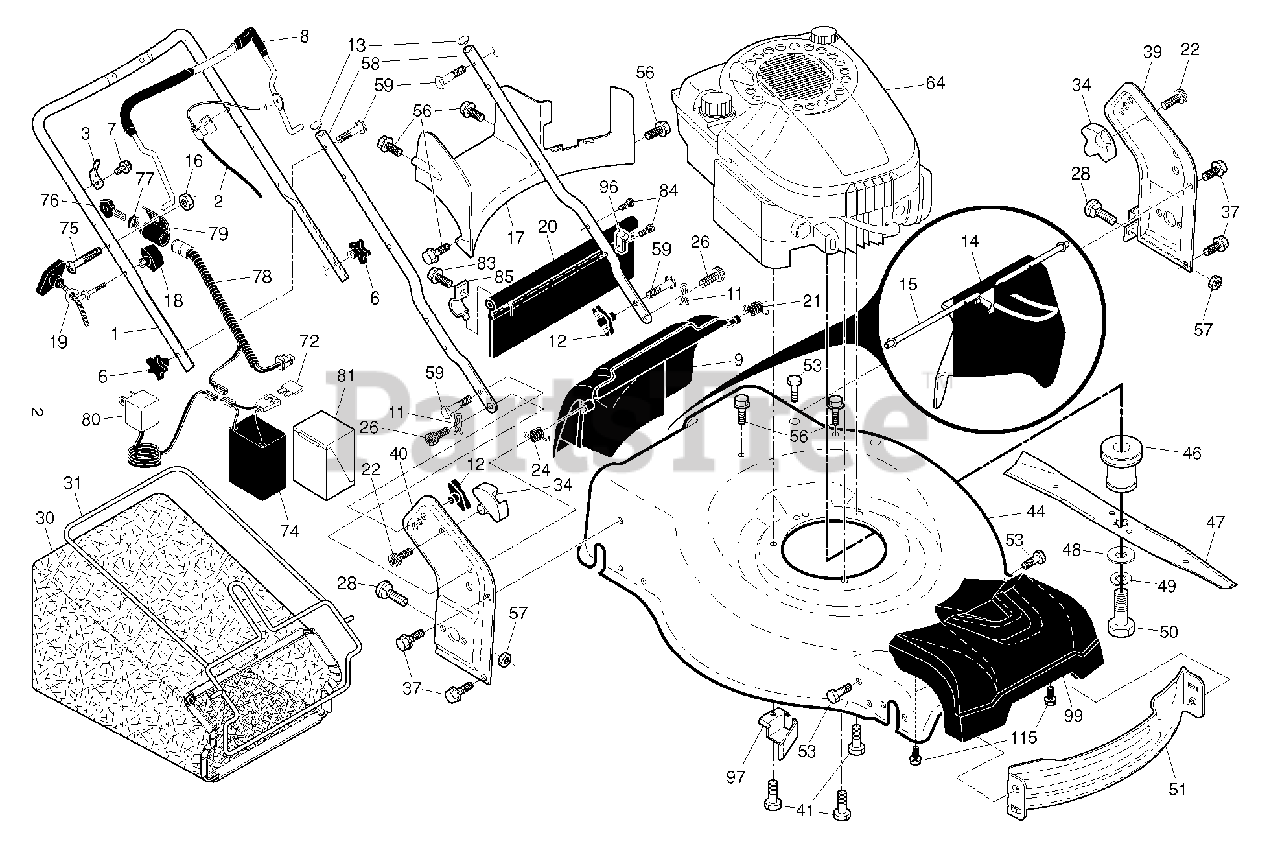

FRAME ENGINE Parts Diagram

  • Title

1

Husqvarna 580638706

HANDLE.UPPER.3.POS.BS.AW2.GREY

$

$

Not available

2

Husqvarna 532427497

CABLE.MZR.50.SNAP-IN

$14.99

$

In Stock, Qty 13

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 4 left!

0

7

Husqvarna 532178848

SCREW

$7.49

$

In Stock, Qty 20+

0

8

Husqvarna 580849102

BAIL.OVER.MOLD.ERGO.MZR.ORANGE

$66.99

$

In Stock, only 2 left!

0

9

Husqvarna 532431390

DOOR.REAR.ASM.22+.HUSQ.FG/RGD
(Superseded to 593304501)

$45.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 18

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$9.49

$

In Stock, Qty 18

0

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532437132

DEFLECTOR.CHUTE.22+REAR

$

$

Not available

15

Husqvarna 532437273

HANDLE DEFLECTOR.22+REAR

$18.99

$

In Stock, only 2 left!

0

16

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 581782101

BAFFLE.REAR.22+RGD.AWD.PLASTIC

$47.99

$

In Stock, Qty 6

0

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$

$

Not available

20

Husqvarna 532444501

SKIRT.REAR.22PLUS.RGD.LW(2 2MC

$13.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532419949

SPRING.LH.BLACK

Note: LH

$6.49

$

In Stock, Qty 9

0

22

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

24

Husqvarna 532419948

SPRING.RH.GRAY

Note: RH

$6.49

$

In Stock, only 4 left!

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

$4.99

$

In Stock, Qty 8

0

30

Husqvarna 580947315

GBAG.A361029ER.HUSQ.GRY/SIL
(Superseded to 580947302)

$87.99

$

Usually ships in 3-10 days

0

31

Husqvarna 585054702

FRAME.GBAG.22+.BLK

$34.99

$

In Stock, Qty 6

0

34

Husqvarna 532438134

BRACKET.GRASSBAG.ATTACHING.BLK

$

$

Not available

37

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

39

Husqvarna 585900703

BRACKET.ASM.HANDLE.LT.22+.GREY

Note: LH

$28.99

$

In Stock, only 2 left!

0

40

Husqvarna 585900803

BRACKET.ASM.HANDLE.RT.22+.GREY

Note: RH

$

$

Not available

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 581708330

HOUSING.22+RG.HD.WO.ORG.TRI.SB

$

$

Not available

46

Husqvarna 581851501

ADAPTER.BLADE.25MM.3MPH

$17.99

$

In Stock, Qty 20+

0

47

Husqvarna 532421825

BLADE.22+.PREMIUM/PREC.FGD/RGD

$20.99

$

In Stock, only 2 left!

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

53

Husqvarna 532437345

SCREW.HI-LO.5/16 X.75

$6.49

$

In Stock, Qty 20+

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

$17.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

64

000000000

Note: B S 128M05-0122-F1 FOR SERVICE PARTS 1-800-233-3723

$

$

Not available

72

Husqvarna 532425937

FUSE, 40A

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532431584

BATTERY.12V.22+RWGD
(Superseded to 584353901)

$103.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532186159

SCREW.(COMBINATION CONTROL)

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532180331

KEY.MOLDED

$8.99

$

In Stock, Qty 10

0

77

Husqvarna 532194848

NUT.CAP.SNAP-ON.KEY START

$7.49

$

Usually ships in 3-10 days

0

78

Husqvarna 532431713

HARNESS.22+.BATTERY.RWGD

$

$

Not available

79

Husqvarna 532194847

HOUSING.WIRING.HARNESS

$10.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532428626

RP CHARGER.12V.0.1A
(Superseded to 587007101)

$

$

Not available

81

Husqvarna 585152402

COVER.BATTERY.BOX 22+RDG.GRY

$43.99

$

Usually ships in 3-10 days

0

83

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

In Stock, only 2 left!

0

85

Husqvarna 532434530

BRACKET.SKIRT.22+.BZP

$6.49

$

In Stock, Qty 11

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 6

0

97

Husqvarna 581115302

BRACKET.BELT.GUIDE.22+.BZP

$

$

Not available

99

Husqvarna 585668702

COVER.ASM.FRONT.HUSQ.22+RGD

$28.99

$

Usually ships in 3-10 days

0

115

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

$4.99

$

In Stock, Qty 6

0
