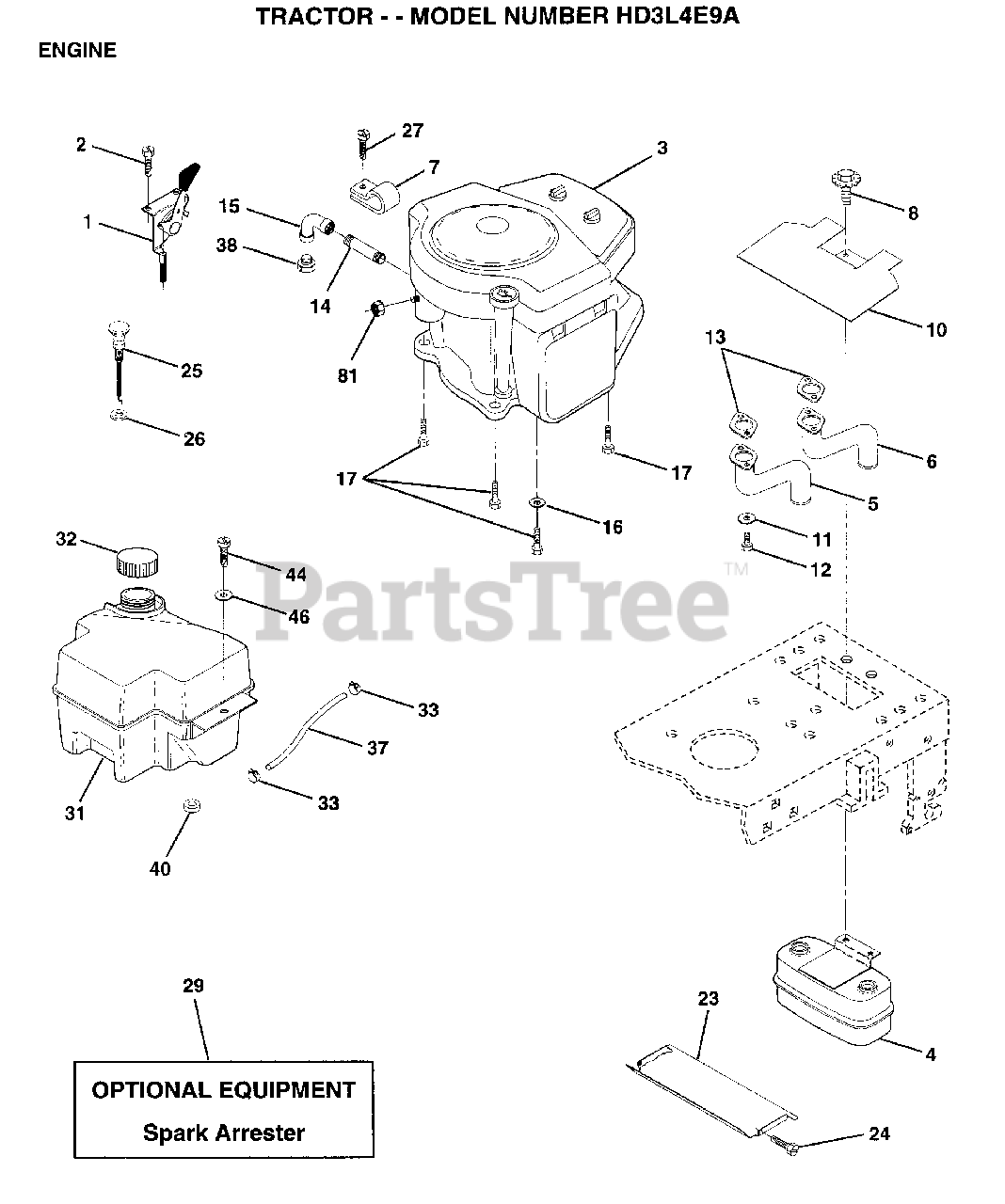

HD 3L4E9 A - Electrolux/AYP Lawn Tractor (1996) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 141295

CONTROL THRT 35.5
(Superseded to 532170803)

$30.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

REFER TO IMAGE

$

$

Not available

4

Electrolux/AYP 149723

MUFFLER.TW.LOTONE
(Superseded to 532149723)

$74.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 144069

EXHAUST.B&S.18.LH
(Superseded to 532144069)

$37.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 144068

EXHAUST.B&S.18.RH
(Superseded to 532144068)

$

$

Not available

7

Electrolux/AYP 138129

CLAMP.TUBE.DBL.EN
(Superseded to 532138129)

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 150176

BOLT.5/16-18.UNC
(Superseded to 532149741)

$7.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 145552

SHIELD.HEAT.
(Superseded to 532145552)

$7.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 100040400

SUB= 10040400

$

$

Not available

12

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

13

Electrolux/AYP 272250

GASKET MUFFLER
(Superseded to 532272250)

$18.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

23

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

24

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

25

Electrolux/AYP 145996

CONTROL.CHOKE.37
(Superseded to 532145996)

$

$

Not available

26

Electrolux/AYP 73920600

"NUT,KEPS 3/8-24IM"
(Superseded to 873920600)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 17541008

SCREW.10-24X1/2
(Superseded to 817541008)

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 140280

SUB= 161911
(Superseded to 532180645)

$

$

Not available

32

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 137040

LINE FUEL
(Superseded to 532137040)

$6.49

$

Usually ships in 3-10 days

0

38

REFER TO IMAGE

$

$

Not available

40

Murray 124028X

SUB= 532124028

$

$

Not available

44

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

81

Electrolux/AYP 128861

NUT
(Superseded to 539128861)

$31.99

$

Usually ships in 3-10 days

0
