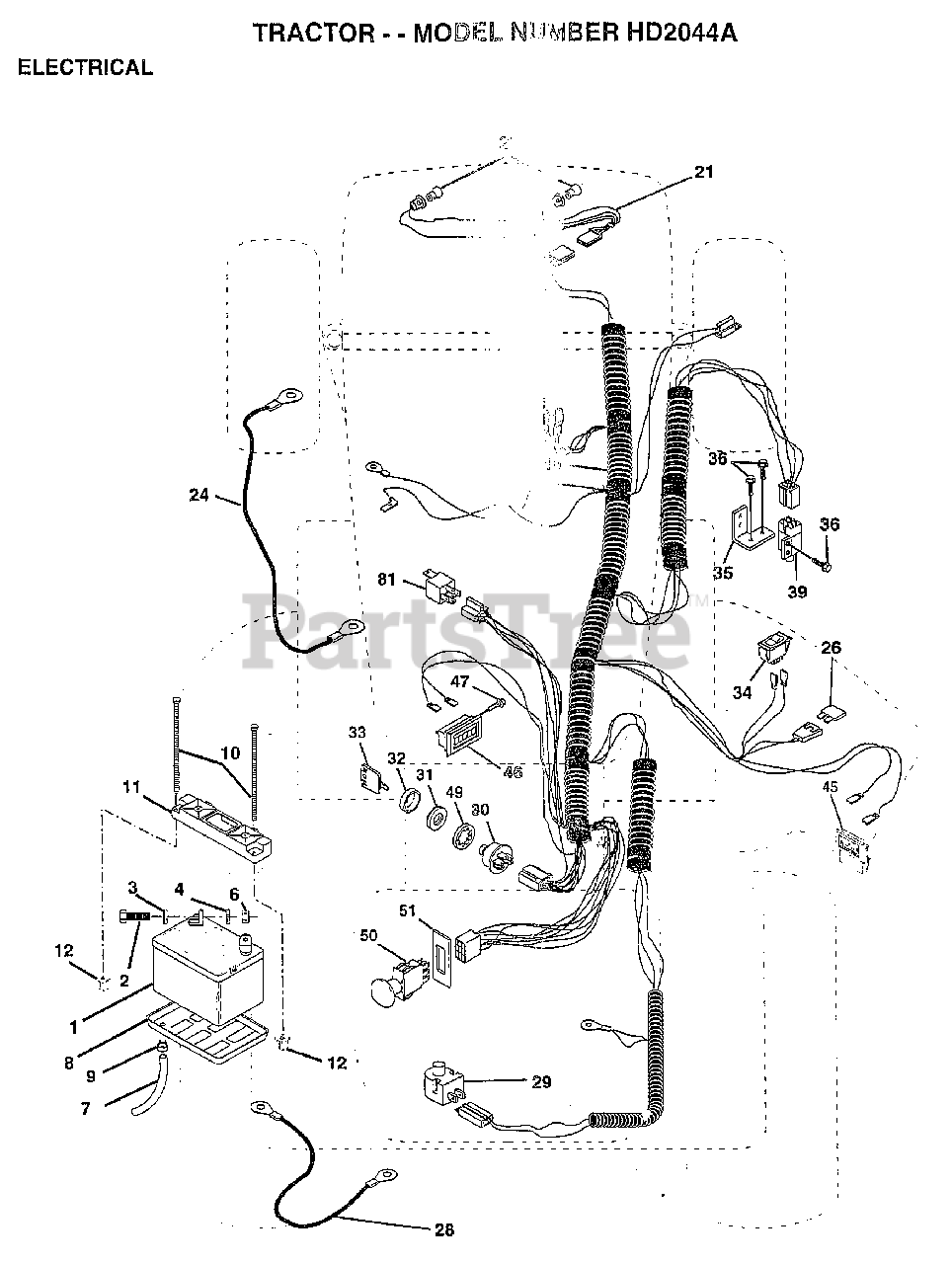

HD 2044 A - Electrolux/AYP Lawn Tractor (1995) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title
1

Electrolux/AYP 144927

SUB= 125603X
(Superseded to 532144927)

$

$

Not available

2

CHECK WITH SUPPLIER

$

$

Not available

3

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 7697J

"DRAIN TU T, BATT"

$

$

Not available

8

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 145211

SUB= 150177
(Superseded to 532145211)

$

$

Not available

11

Electrolux/AYP 145209

SUB= 150109
(Superseded to 532145209)

$

$

Not available

12

Electrolux/AYP 145769

SUB= 150177
(Superseded to 532145769)

$

$

Not available

21

Electrolux/AYP 136850

"HARNESS,LIGHT SOC"
(Superseded to 532136850)

$

$

Not available

22

Electrolux/AYP 4152J

HEADLAMP BULB
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 117J

CABLE.BATTERY.RED

$

$

Not available

26

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 145491

CABLE.GRND.6GA.21
(Superseded to 532145491)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 2683R

SWITCH T
(Superseded to 583731001)

$68.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 124211X

NUT IGNITION
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 123620X

SUB= 141226
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 122147X

KEY
(Superseded to 532122147)

$

$

Not available

34

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 4 left!

0

36

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

38

Electrolux/AYP 140336

BRACKET SWITCH IN
(Superseded to 532140336)

$

$

Not available

39

Electrolux/AYP 109553X

SWITCH INTERLOCKT
(Superseded to 539101080)

$17.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 148710

HARNESS.IGN.ONAN

$97.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 122822X

AMMETER
(Superseded to 532122822)

$20.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 110940X

HOUR METER T
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 17011008

SCREW
(Superseded to 817011008)

$

$

Not available

50

Electrolux/AYP 140404

SUB= 154959

$

$

Not available

51

Electrolux/AYP 140405

RING RETAIN PTO
(Superseded to 532140405)

$6.49

$

Usually ships in 3-10 days

0

55

CHECK WITH SUPPLIER

$

$

Not available

81

Electrolux/AYP 109748X

RELAY ASSY T
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0
