HD 145H42 C - Poulan Lawn Tractor (1997) 42" MOWER DECK Parts Diagram

Lawn Tractor

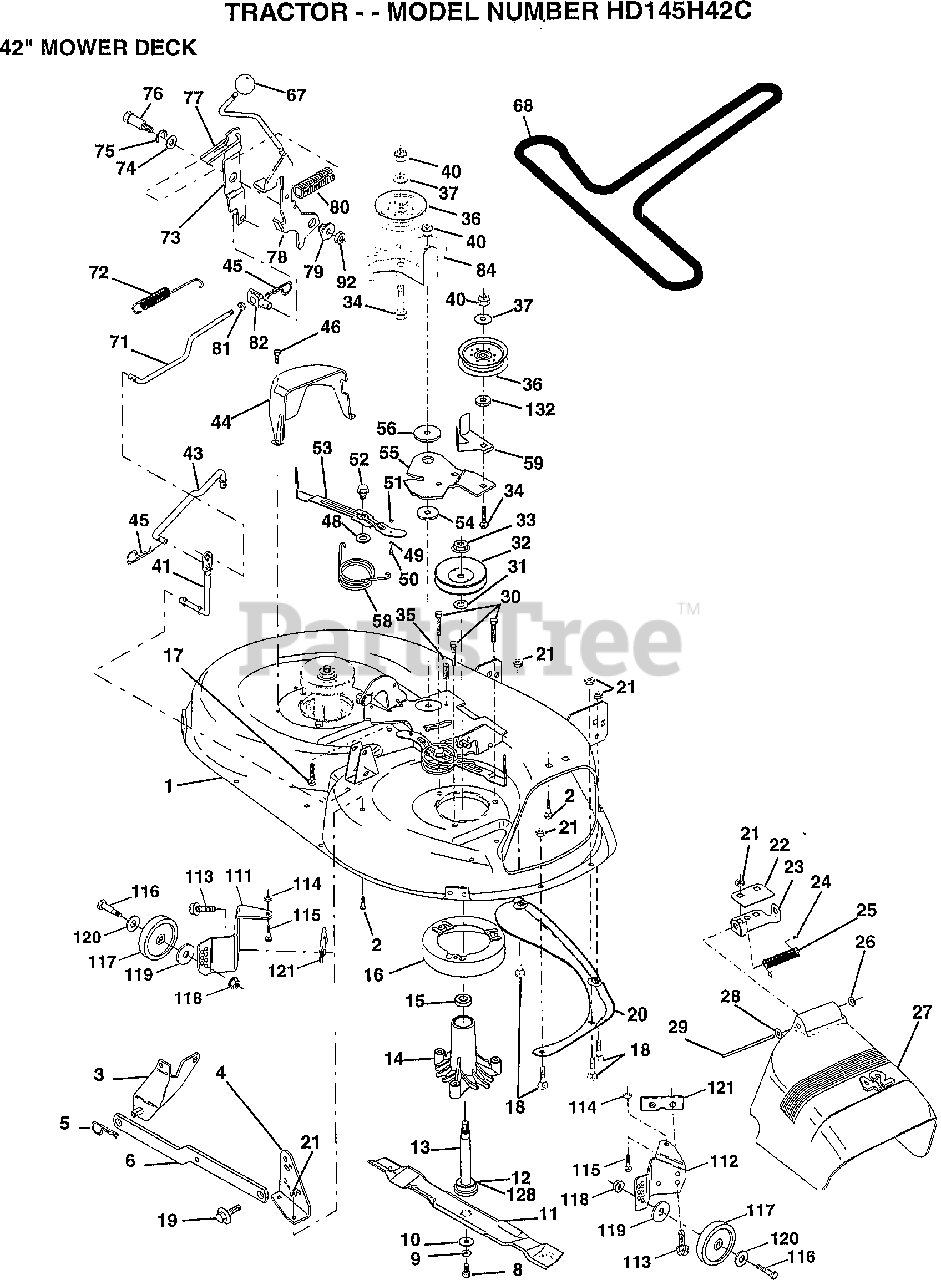

42" MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 144393

DECK.WELD.42.
(Superseded to 532176031)

$319.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 138017

BRKT ASM SWAY BAR
(Superseded to 532138017)

$12.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 138440

BRKT DECK SW BAR
(Superseded to 532138440)

$6.49

$

Usually ships in 3-10 days

0

5

Murray 4939M

SUB= 85902

$

$

Not available

6

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 138498

"BLADE.42"" HIPERF"
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137645

SUB= 137646
(Superseded to 532137645)

$34.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$34.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 140329

STRIPPER RND MWR
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 72110610

BOLT RDHD 3/8-16
(Superseded to 872140614)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 132827

BOLT SHD 5/16-18
(Superseded to 532132827)

$

$

Not available

20

Electrolux/AYP 136888

SUB= 918136888
(Superseded to 532159770)

$

$

Not available

21

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 134753

STIFFENER BRKT
(Superseded to 532177563)

$

$

Not available

23

Electrolux/AYP 131267

DEFLECTOR BRKT
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 130968

DEFLECTOR.SHIELD
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

28

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

29

Electrolux/AYP 131491

HINGE ROD
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 138776

SUB= 157722
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

32

Murray 153535

PULLEY.MANDREL.42
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 72110614

BOLT
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

35

Electrolux/AYP 133835

XMAS TREE FASTNER
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

37

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 133551

PIVOT ROD
(Superseded to 532133551)

$8.99

$

In Stock, only 1 left!

0

43

Electrolux/AYP 140083

ROD CLUTCH W/NIBS
(Superseded to 532140083)

$

$

Not available

44

Electrolux/AYP 140088

GUARD MAND LH BLK
(Superseded to 532140088)

$34.99

$

In Stock, Qty 10

0

45

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Electrolux/AYP 137729

SCREW.1/4-20X5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 133944

HARD SMALL WASHER
(Superseded to 532133944)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 155066

ROLLER ASM-CAM
(Superseded to 532174284)

$10.99

$

In Stock, only 4 left!

0

50

Electrolux/AYP 131340

SHOULDER BOLT
(Superseded to 532131340)

$

$

Not available

51

Electrolux/AYP 69180

LOCKNUT
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 139888

BOLT.SHLD.5/16-18
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

53

$

$

Not available

54

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 155046

ARM-IDLER
(Superseded to 532155046)

$15.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

58

Electrolux/AYP 140086

SPRING TORSN BRAK
(Superseded to 532140086)

$6.49

$

In Stock, only 1 left!

0

59

Electrolux/AYP 141043

GUARD IDLER TUV
(Superseded to 532141043)

$

$

Not available

67

Electrolux/AYP 106932X

KNOB T(3/8 HOLE)
(Superseded to 532106932)

$7.99

$

In Stock, Qty 5

0

68

Electrolux/AYP 144959

BELT-V.SEC.46.KEL
(Superseded to 532144959)

$43.99

$

In Stock, Qty 20+

0

71

Electrolux/AYP 142427

ROD CLUTCH 38/42
(Superseded to 532142427)

$

$

Not available

72

Electrolux/AYP 131870

RETURN SPRING
(Superseded to 532131870)

$18.99

$

In Stock, only 1 left!

0

73

Electrolux/AYP 127847

CLUTCH ARM SECOND
(Superseded to 532127847)

$

$

Not available

74

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 20+

0

75

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 128903

SHOULDER BOLT
(Superseded to 532128903)

$6.99

$

In Stock, only 2 left!

0

77

Electrolux/AYP 127845

SPRING KEEPER
(Superseded to 532127845)

$

$

Not available

78

Electrolux/AYP 154809

LEVER ASM-CLUTCH
(Superseded to 532154809)

$17.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 127498

BUSHING
(Superseded to 532127498)

$

$

Not available

80

Electrolux/AYP 153701

SPRING.CLUTCH.MWR
(Superseded to 532153701)

$

$

Not available

81

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

82

Electrolux/AYP 142028

TRUNION ADJ
(Superseded to 532142028)

$

$

Not available

84

Electrolux/AYP 158824

BRACKET ASM IDLER
(Superseded to 584321901)

$6.49

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

111

Electrolux/AYP 155197

BRACKET.GWHL.LH.
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

112

Electrolux/AYP 155198

BRACKET.GWHL.RH.
(Superseded to 532181040)

$37.99

$

In Stock, only 1 left!

0

113

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

$2.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 72110504

SUB= 872110504
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

116

Electrolux/AYP 4898H

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

117

Electrolux/AYP 105455X

WHEEL.GAGE.BLK.PL
(Superseded to 532105455)

$18.99

$

In Stock, only 2 left!

0

118

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 19171512

WASHER
(Superseded to 819171512)

$3.99

$

Usually ships in 3-10 days

0

121

Electrolux/AYP 143723

BRACKET.EXTRD.GWL
(Superseded to 532143723)

$

$

Not available

132

Electrolux/AYP 19132203

WASHER GT
(Superseded to 819132203)

$6.49

$

In Stock, only 3 left!

0

128

Electrolux/AYP 153390

WASHER.FELT.
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, only 4 left!

0

Electrolux/AYP 159469

SUB= 144783

$

$

Not available
