HD 1442 A - Electrolux/AYP Lawn Tractor (1995) ENGINE Parts Diagram

Lawn Tractor

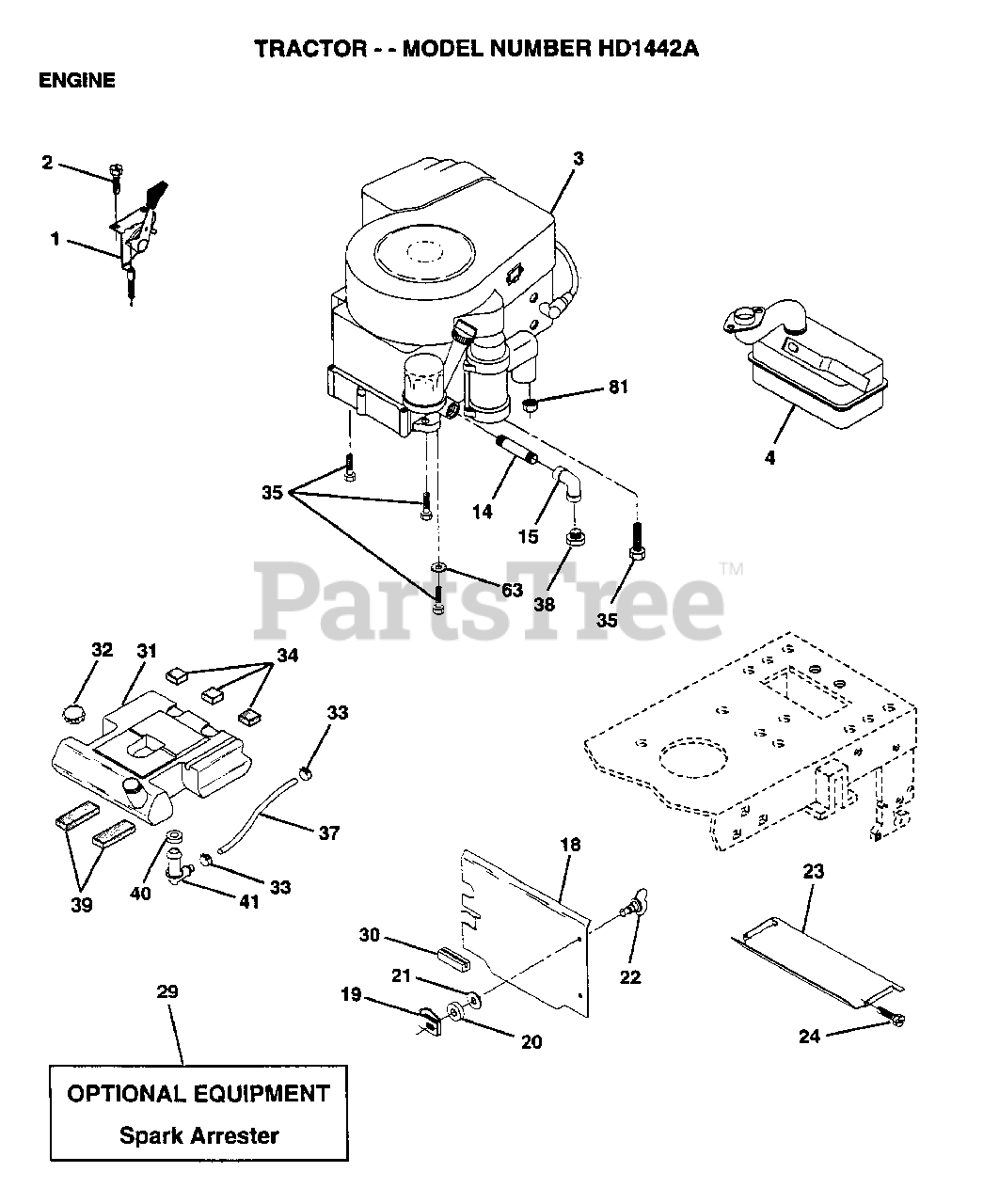

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 140310

CONTROL THROTTLE
(Superseded to 532170551)

$37.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

Electrolux/AYP E140V

ENGINE ONAN 14 ELITE

$

$

Not available

4

Electrolux/AYP 147047

MUFFLER EXHAUST

$

$

Not available

14

Electrolux/AYP 13280324

PIPE NIPPLE
(Superseded to 813280324)

$

$

Not available

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

18

Electrolux/AYP 136718

SHIELD HEAT
(Superseded to 532136718)

$

$

Not available

19

Electrolux/AYP 105839X

RECEPTACLE LT
(Superseded to 532105839)

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 105838X

RETAINER LT
(Superseded to 532105838)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 123650X

STUD.1/4.TURN
(Superseded to 532123650)

$6.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

24

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

30

Electrolux/AYP 127057X

SUB= 532127057

$

$

Not available

31

Electrolux/AYP 141069

SUB= 151346
(Superseded to 532151346)

$96.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

35

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 8543R

FUEL LINE T
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

38

CHECK WITH SUPPLIER

$

$

Not available

39

Electrolux/AYP 109227X

PAD IDLER TI
(Superseded to 532109227)

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 139277

STEM.TANK.FUEL
(Superseded to 532139277)

$8.99

$

In Stock, Qty 7

0

63

Electrolux/AYP 11050500

LOCKWASHER.5/16.E
(Superseded to 811050500)

$

$

Not available

81

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available
