HCS-3810 - Echo Hedge Trimmer (SN: U55912001001 - U55912999999) Cutter Parts Diagram

Hedge Trimmer

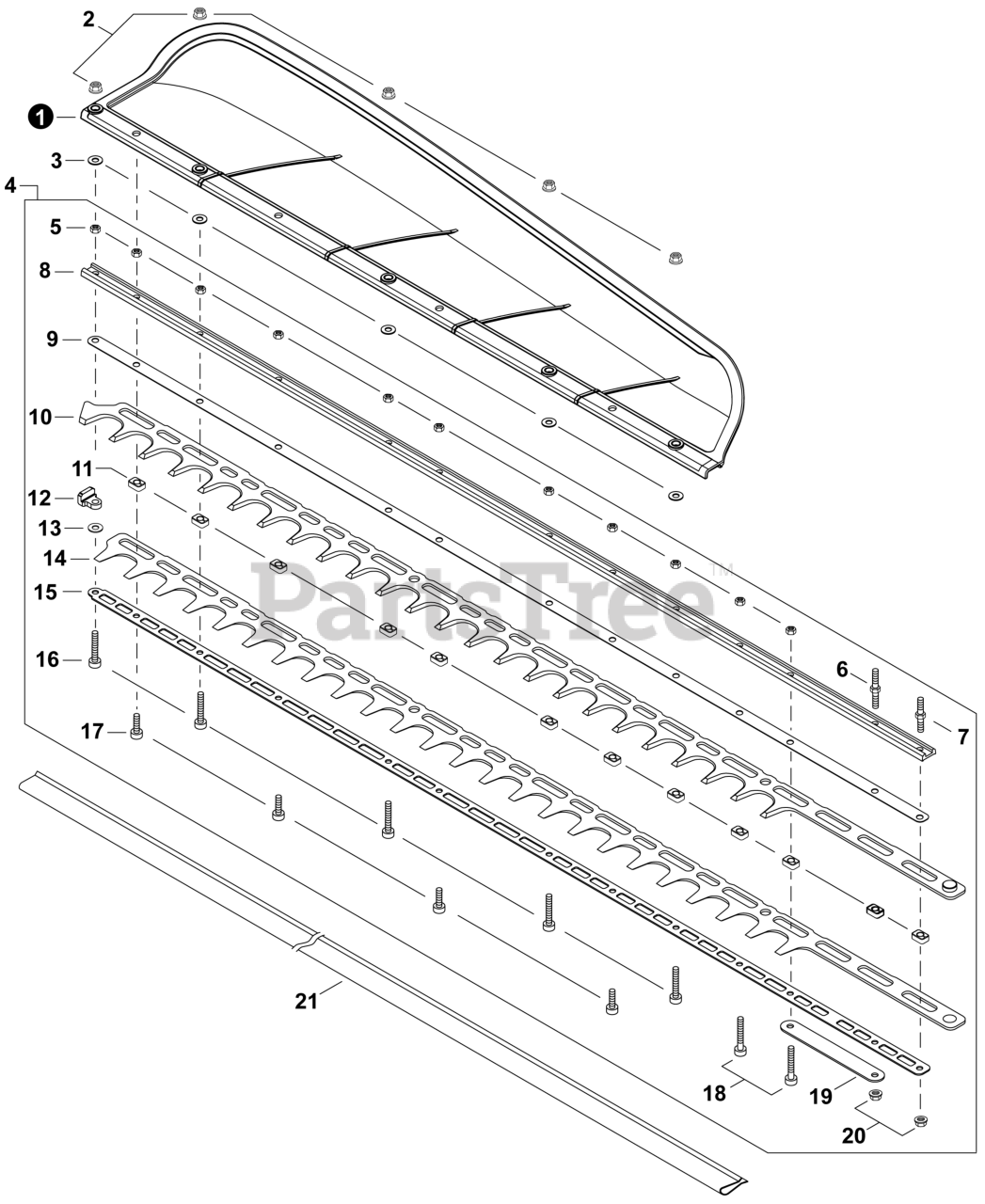

Cutter Parts Diagram

  • Title

1

Echo C571000170

DEFLECTOR, DEBRIS

$22.99

$

Usually ships in 2-4 days

0

2

Echo V263000250

NUT, FLANGE M5

$1.99

$

In Stock, Qty 12

0

3

Echo 90060000005

WASHER, FLAT 5.5x10x0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo X041000760

CUTTER ASSY, 37.6"

Note: Includes Items 5-20

$285.99

$

In Stock, only 1 left!

0

5

Echo 9202205000

NUT

$0.99

$

Usually ships in 2-4 days

0

6

Echo V223000090

STUD, MOUNTING M5x44

$2.49

$

In Stock, only 2 left!

0

7

Echo V223000020

STUD, MOUNTING M5x36

$1.99

$

Usually ships in 2-4 days

0

8

Echo X425000710

SUPPORT, BLADE 37.6"

$106.99

$

Usually ships in 2-4 days

0

9

Echo X425000720

SUPPORT, BLADE 37.6"

$52.99

$

Usually ships in 2-4 days

0

10

Echo X412000910

BLADE - UPPER - 37.6"
(Superseded to X412000830)

$86.99

$

In Stock, only 1 left!

0

11

Echo V376001390

SPACER

$3.49

$

In Stock, only 4 left!

0

12

Echo V376001380

SPACER

$10.99

$

In Stock, only 1 left!

0

13

Echo 9221705000

WASHER

$0.99

$

In Stock, Qty 9

0

14

Echo X412000920

BLADE - LOWER - 37.6"

$94.99

$

Usually ships in 2-4 days

0

15

Echo X425000730

SUPPORT, BLADE 37.6"

$87.99

$

In Stock, only 1 left!

0

16

Echo V805000170

BOLT, TORX 5x25

$0.99

$

Usually ships in 2-4 days

0

17

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

18

Echo V805000050

BOLT, TORX 5x30

$0.99

$

In Stock, Qty 20+

0

19

Echo V150003970

PLATE, EYE

$7.49

$

Usually ships in 2-4 days

0

20

Echo V263000250

NUT, FLANGE M5

$1.99

$

In Stock, Qty 12

0

21

Echo X495000950

SCABBARD

$7.49

$

Usually ships in 2-4 days

0
