HCS-3810 - Echo Hedge Trimmer (SN: U29115001001 - U29115999999) Exhaust Parts Diagram

Hedge Trimmer

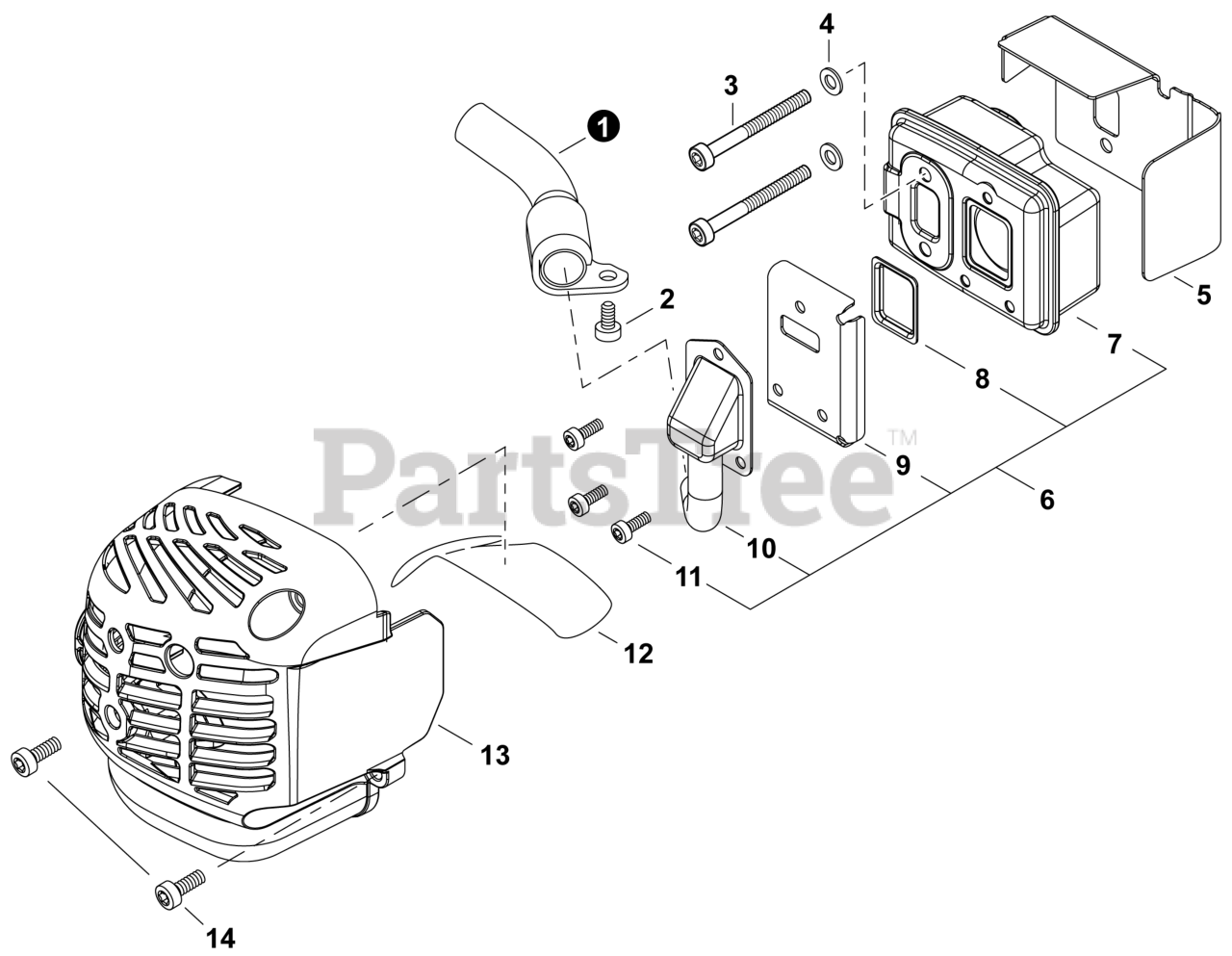

Exhaust Parts Diagram

  • Title

1

Echo A313001730

GUIDE, EXHAUST

$17.99

$

In Stock, only 1 left!

0

2

Echo V805000130

BOLT, TORX 5×10

$0.99

$

In Stock, Qty 20+

0

3

Echo V805000190

BOLT, TORX 5×55

$1.49

$

In Stock, Qty 20+

0

4

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

5

Echo V104001831

HEAT SHIELD, EXHAUST

$15.99

$

Usually ships in 2-4 days

0

6

Echo P021041970

MUFFLER ASSY

Note: Includes Items 7-11

$79.99

$

Usually ships in 2-4 days

0

7

Echo A300001600

MUFFLER

$83.99

$

Usually ships in 2-4 days

0

8

Echo A310000070

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

9

Echo V104000072

GASKET, EXHAUST

$5.49

$

Usually ships in 2-4 days

0

10

Echo A313001741

GUIDE, EXHAUST

$15.99

$

In Stock, only 1 left!

0

11

Echo V804000030

BOLT, TORX 4×8

$0.99

$

In Stock, Qty 20+

0

12

Echo A209000621

PLATE, INSULATOR

$5.99

$

Usually ships in 2-4 days

0

13

Echo A320001250

COVER, MUFFLER

$3.49

$

Usually ships in 2-4 days

0

14

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0
