HCS-3020 - Echo Hedge Trimmer (SN: T86813001001 - T86813999999) Control Handle Parts Diagram

Hedge Trimmer

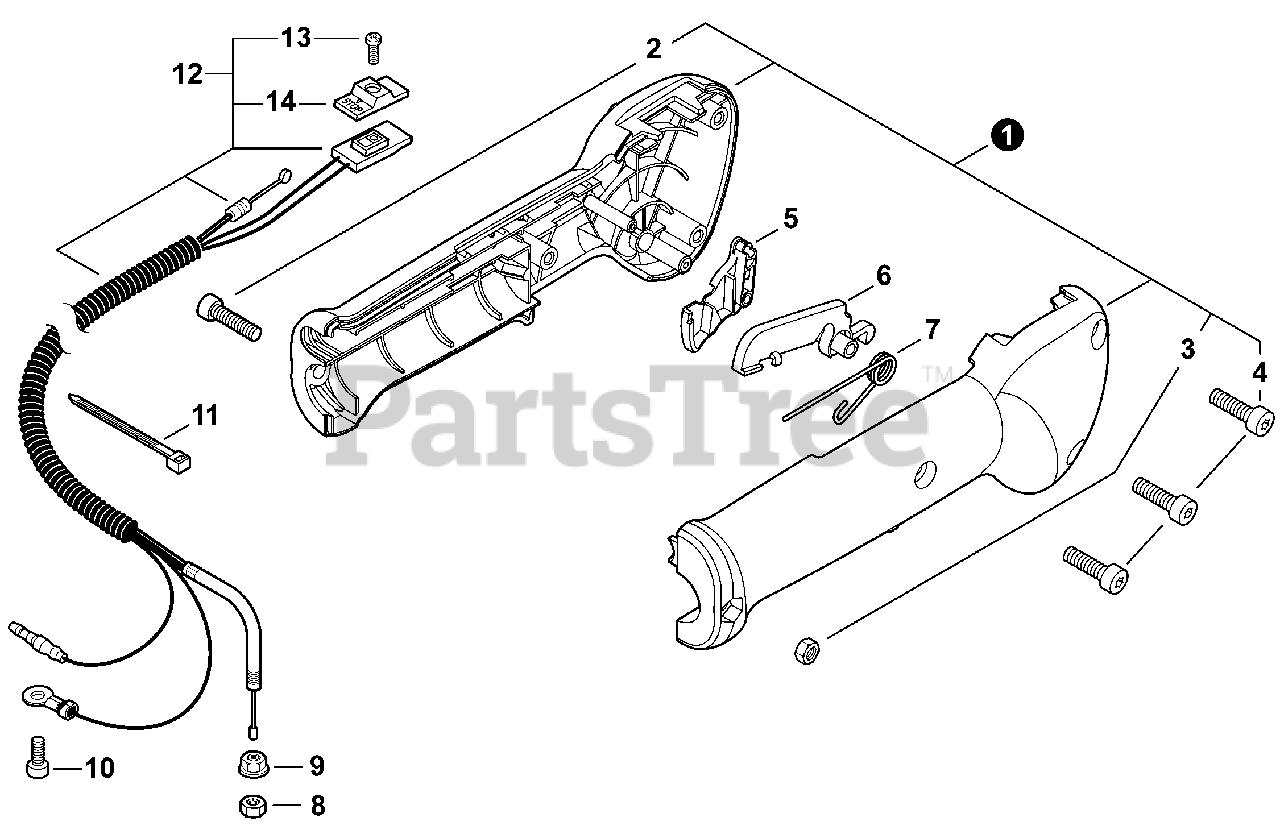

Control Handle Parts Diagram

  • Title

1

Echo P021014630

CONTROL HANDLE KIT

Note: Includes ITEMS 2-4

$17.99

$

In Stock, Qty 5

0

2

Echo V805000050

BOLT, TORX 5×30

$0.99

$

In Stock, Qty 20+

0

3

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

4

Echo V804000010

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 16

0

5

Echo C450000270

TRIGGER, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

6

Echo C460000111

LOCKOUT, THROTTLE

$4.49

$

Usually ships in 2-4 days

0

7

Echo V452000350

SPRING, TORSION

$2.49

$

Usually ships in 2-4 days

0

8

Echo 90050200006

NUT M6

$0.99

$

In Stock, only 1 left!

0

9

Echo 90051800006

NUT, FLANGE M6

$1.49

$

In Stock, Qty 13

0

10

Echo V804000040

BOLT, TORX 4×10

$0.99

$

In Stock, Qty 8

0

11

Echo 17812143230

STRAP, TIE

$3.49

$

In Stock, only 4 left!

0

12

Echo P021051430

CABLE ASSY, CONTROL

Note: Includes ITEMS 13-14

$29.99

$

In Stock, only 3 left!

0

13

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

14

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0
