HCS-3020 - Echo Hedge Trimmer (SN: T86514001001 - T86514999999) Starter Parts Diagram

Hedge Trimmer

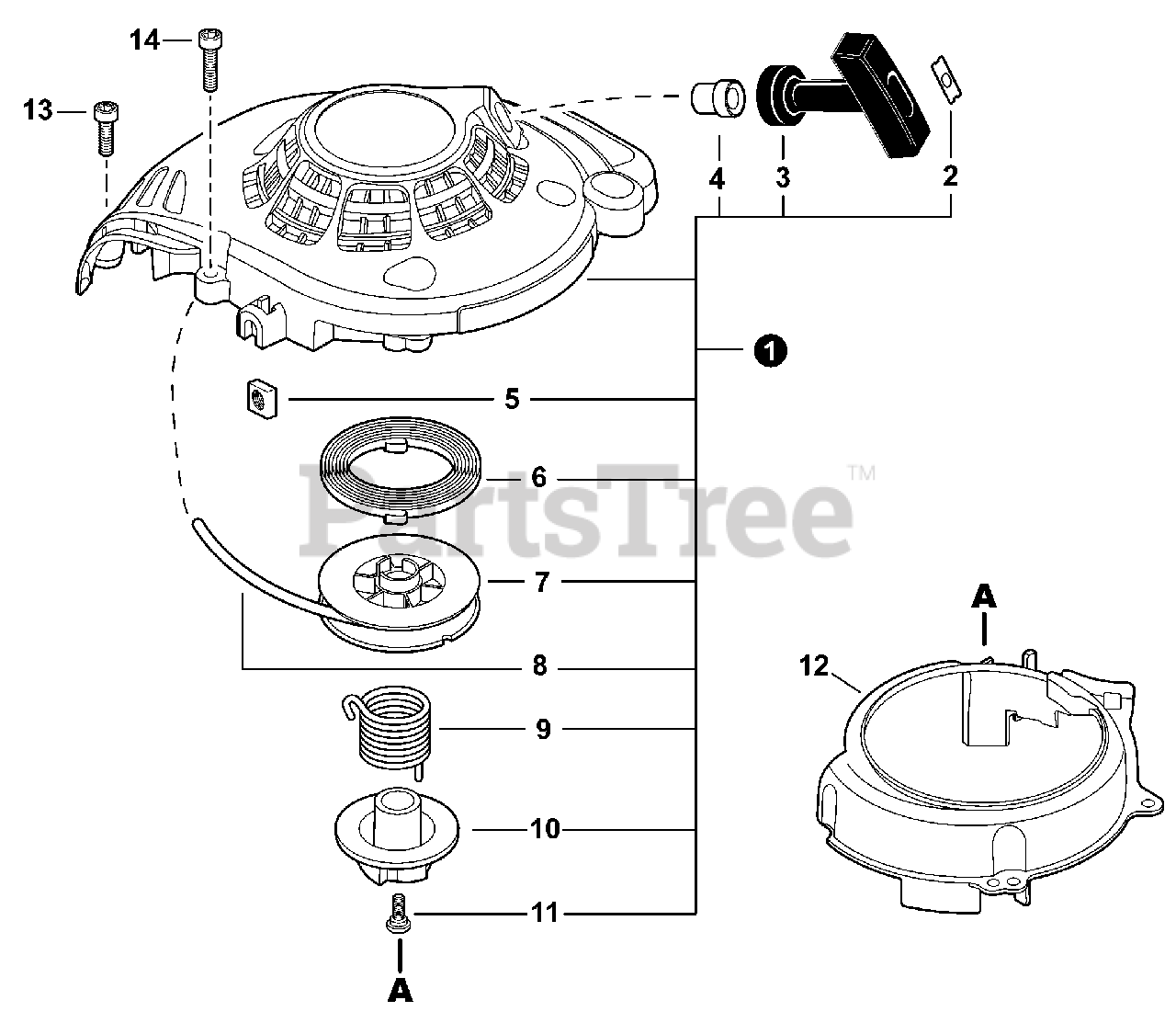

Starter Parts Diagram

  • Title

1

Echo A051002791

STARTER ASSY, RECOIL

Note: Includes ITEMS 2-11

$38.99

$

In Stock, only 3 left!

0

2

Echo P022037670

RETAINER, ROPE

$2.49

$

In Stock, Qty 7

0

3

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

4

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

5

Echo 90056500005

NUT M5
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 17722042030

SPRING, RECOIL
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

7

Echo P022027980

REEL, ROPE

$6.49

$

In Stock, only 3 left!

0

8

Echo P022008260

ROPE, STARTER 3×700

$

$

Not available

9

Echo P022008270

SPRING, TORSION

$8.99

$

In Stock, Qty 20+

0

10

Echo P022037310

PLATE, CAM

$7.99

$

In Stock, only 1 left!

0

11

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

12

Echo A172002610

COVER, FAN

$9.49

$

Usually ships in 2-4 days

0

13

Echo V804000010

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 16

0

14

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0
