HCS 13 F (965869401) - Husqvarna Collection System (2008-07) Blower Assembly Parts Diagram

Collection System

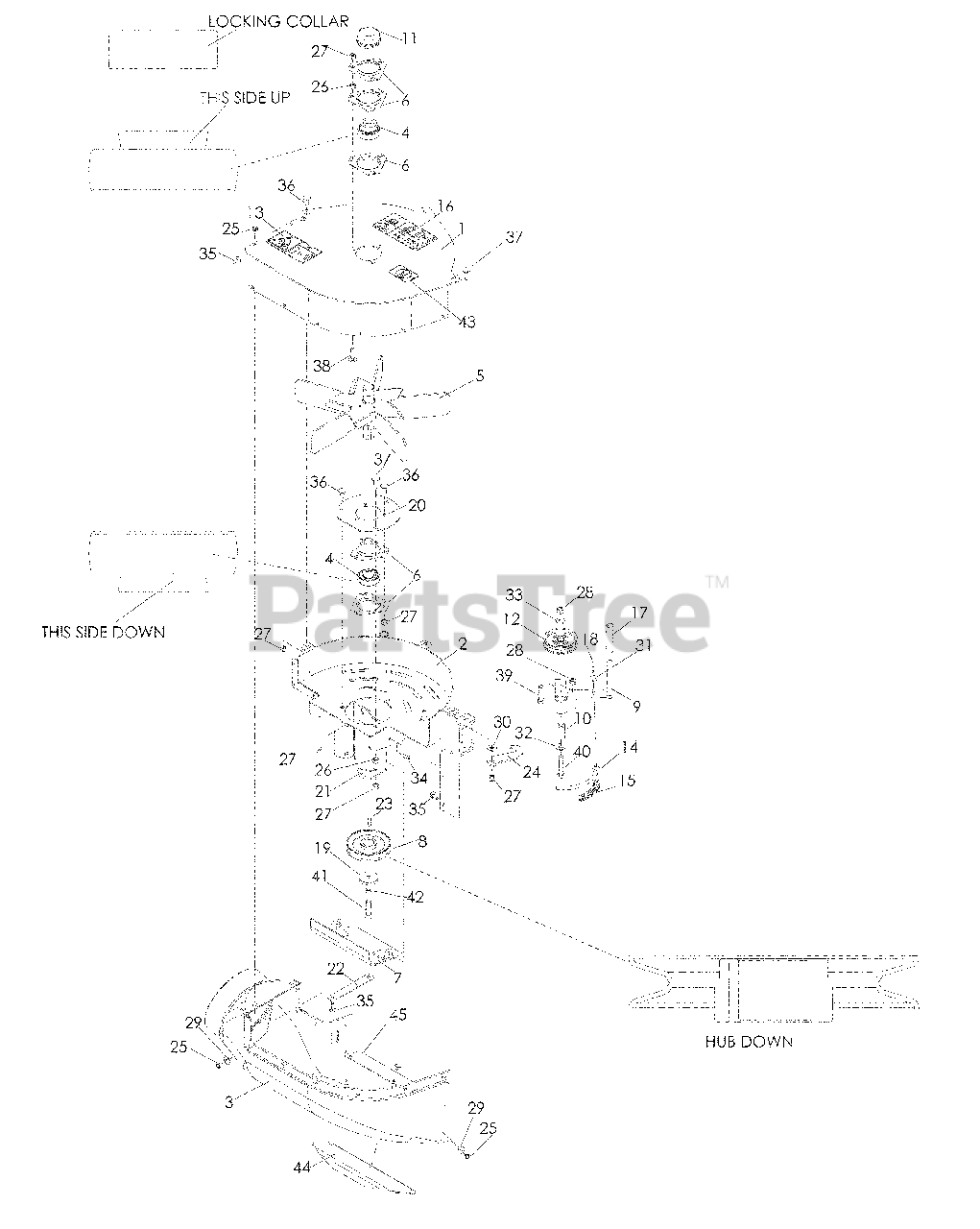

Blower Assembly Parts Diagram

  • Title

1

Husqvarna 539111331

FAN COVER W/DECALS

$

$

Not available

2

Husqvarna 539108941

BLOWER HOUSING

$485.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539109900

LOWER HOUSING

$182.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539106786

BEARING

$54.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539110111

FAN

$

$

Not available

6

Husqvarna 539102691

FLANGETTE

$

$

Not available

7

Husqvarna 539108301

COVER PLATE

$61.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539106713

SHEAVE 4"

$62.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539106715

IDLER ARM

$42.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539101836

SLEEVE BUSHING

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539106721

IDLER

$31.99

$

In Stock, only 2 left!

0

13

Husqvarna 539106741

DECAL, SEVERING

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539106801

SPRING ROD

$121.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539106720

SPRING

$27.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105785

DECAL, WARNING

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539101050

VINYL GRIP

$3.99

$

In Stock, only 4 left!

0

18

Husqvarna 539990037

PIN COTTER 3/32 x ¾

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

20

Husqvarna 539106809

BEARING PLATE

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539106811

BELT GUIDE

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539106812

BACKING

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539102067

KEY ¼ SQ x ¾

$6.49

$

In Stock, only 4 left!

0

24

Husqvarna 539111303

IDLER ARM KEEPER

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539108120

NUT ¼-20, THIN, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

26

Husqvarna 539990196

NUT 5/16-18

$1.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990546

NUT 3/8 -16 CENTERLOCK

$

$

Not available

29

Husqvarna 539990598

WASHER ¼

$

$

Not available

30

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539990188

WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990517

WASHER 3/8

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990122

WASHER 3/8 SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539111229

SCREW ¼-20 x 5/8 BTN

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990074

RHSNB ¼-20 x ¾ GR2
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539990208

RHSNB 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

40

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

41

Husqvarna 539100141

HCS 7/16-20 x 1½

$

$

Not available

42

Husqvarna 539990247

LOCKWASHER 7/16

$

$

Not available

43

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

44

Husqvarna 539111340

BLOWER SUPPORT

$27.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539110058

PLATE, BLOWOUT

$14.99

$

Usually ships in 3-10 days

0
