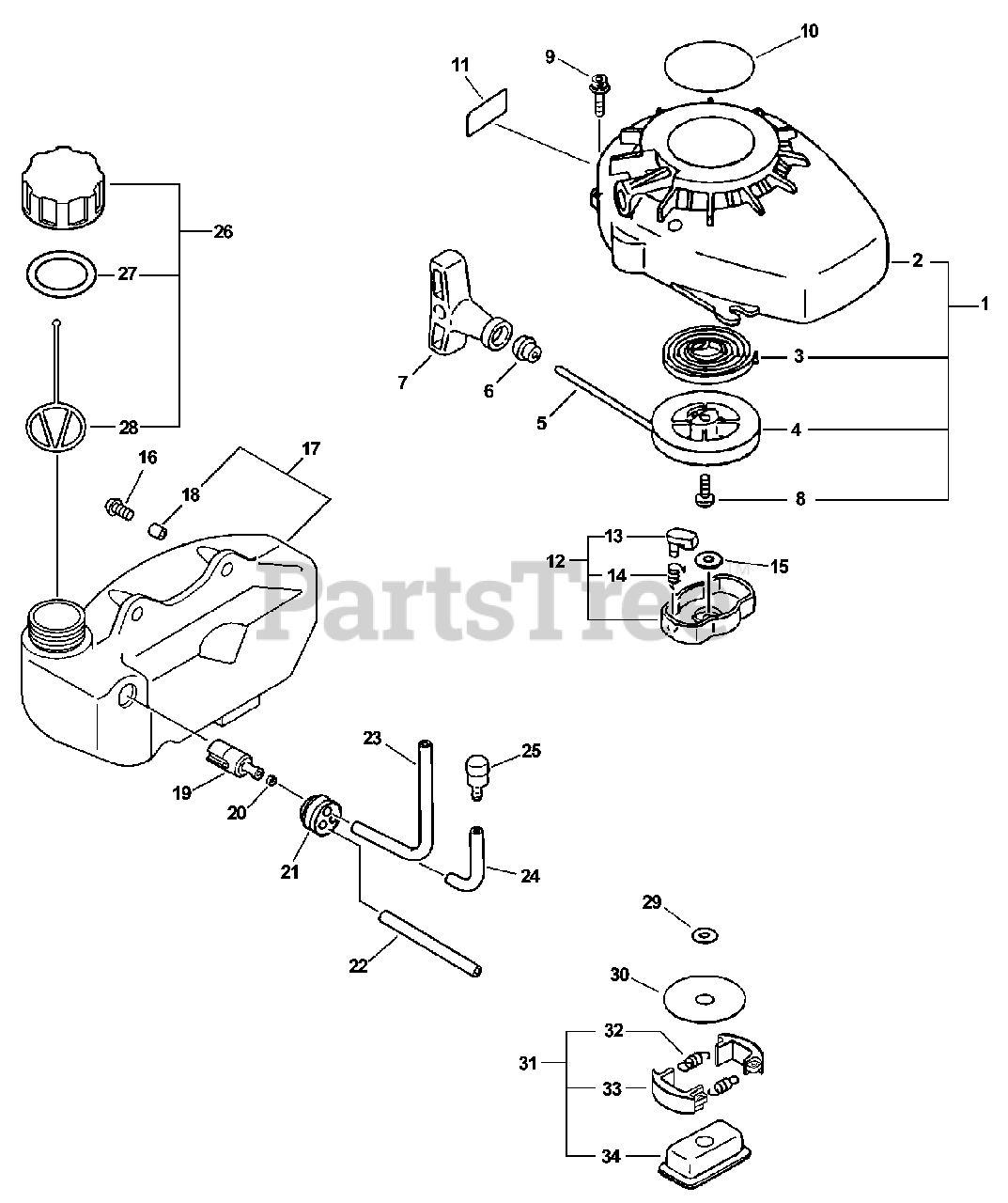

HCR-151 - Echo Rotating Hedge Trimmer (SN: 06001001 - 06999999) Starter, Fuel System, Clutch Parts Diagram

Rotating Hedge Trimmer

Starter, Fuel System, Clutch Parts Diagram

  • Title

1

Echo 17720012220

STARTER ASSY
(Superseded to 17720006563)

Note: INCLUDES ITEMS 2-8

$87.99

$

In Stock, only 4 left!

0

2

Echo 10151106562

CASE, FAN
(Superseded to 10151106563)

$37.99

$

Usually ships in 2-4 days

0

3

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

4

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

5

Echo 17722610120

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$5.99

$

In Stock, Qty 6

0

6

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

7

Echo 17722811120

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

8

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

9

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

10

Echo X503003710

LABEL - MODEL HC-150
(Superseded to X502000330)

$0.99

$

In Stock, Qty 20+

0

10

Echo X503003720

LABEL - MODEL HCR-150
(Superseded to Discontinued)

$

$

Not available

11

Echo 89012313360

LABEL - CAUTION

$5.99

$

Usually ships in 2-4 days

0

12

Echo A052000160

STARTER PAWL ASSY

Note: Includes ITEMS 13-14

$9.99

$

In Stock, Qty 20+

0

13

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

14

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

15

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

16

Echo 90027505015

SCREW - 5X15

$0.99

$

In Stock, Qty 12

0

17

Echo A350000040

TANK, FUEL
(Superseded to A350000041)

Note: Includes ITEM 18

$18.99

$

In Stock, Qty 5

0

18

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

19

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

20

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

22

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 16

0

23

Echo 13201007530

PIPE - 3X5X195 -- BLACK
(Superseded to 13201007531)

Note: RePower BULK OPTION: 90014

$9.99

$

In Stock, only 1 left!

0

24

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

25

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

26

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEM 27-28

$6.49

$

In Stock, only 2 left!

0

27

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

28

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

29

Echo 17501405360

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

30

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

31

Echo 17500006560

CLUTCH ASSY

Note: INCLUDES ITEMS 32-34

$28.99

$

In Stock, Qty 9

0

32

Echo 17501805960

SPRING, CLUTCH

$1.99

$

In Stock, Qty 5

0

33

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

34

Echo 17501604920

HUB, CLUTCH

$12.99

$

In Stock, only 1 left!

0
