HCR-1500 - Echo Rotating Hedge Trimmer (Type 1E) Handle, Throttle, Stop Switch Parts Diagram

Rotating Hedge Trimmer (Type 1E)

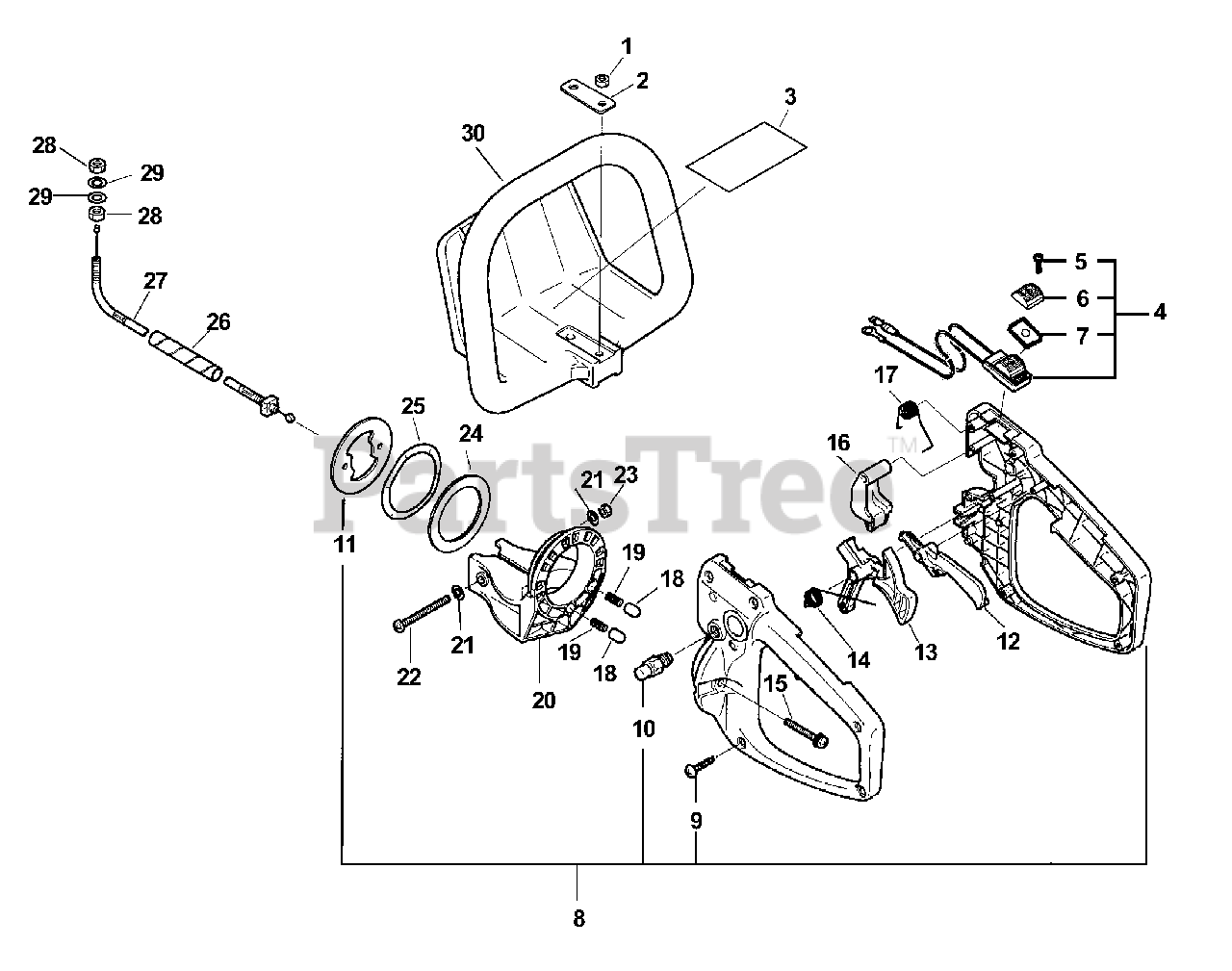

Handle, Throttle, Stop Switch Parts Diagram

  • Title
1

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

$7.49

$

In Stock, only 1 left!

0

3

Echo 89017740630

LABEL - CAUTION

$5.49

$

Usually ships in 2-4 days

0

3

Echo 89031705160

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

4

Echo 16340013360

IGNITION SWITCH ASSY

Note: INCLUDES ITEMS 5 - 7

$13.99

$

Usually ships in 2-4 days

0

5

Echo 90022003010

SCREW - 3X10

$0.99

$

In Stock, Qty 13

0

6

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

7

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 13

0

8

Echo 35110113360

HANDLE ASSY - REAR

Note: INCLUDES ITEMS 9 - 11

$59.99

$

Usually ships in 2-4 days

0

9

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

10

Echo 17830213360

LOCK, THROTTLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 35131313361

BRACKET, HANDLE

$24.99

$

Usually ships in 2-4 days

0

12

Echo 17801213360

LOCKOUT, THROTTLE

$6.49

$

Usually ships in 2-4 days

0

13

Echo 17801013361

TRIGGER, THROTTLE

$11.99

$

Usually ships in 2-4 days

0

14

$3.99

$

Usually ships in 2-4 days

0

15

Echo 90023805030

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

16

$11.99

$

In Stock, only 1 left!

0

17

Echo 17804313660

SPRING, TRIGGER

$6.49

$

Usually ships in 2-4 days

0

$5.99

$

Usually ships in 2-4 days

0

19

Echo 17804313360

SPRING, TRIGGER

$4.99

$

Usually ships in 2-4 days

0

20

Echo 35131213361

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

22

Echo 90022005047

SCREW - 5X40

$0.99

$

In Stock, Qty 20+

0

23

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

24

Echo 68902513361

WASHER - 50

$2.99

$

Usually ships in 2-4 days

0

25

Echo 17812913361

WASHER
(Superseded to Discontinued)

$

$

Not available

$6.49

$

Usually ships in 2-4 days

0

27

Echo 17800113360

CABLE, THROTTLE

$18.99

$

Usually ships in 2-4 days

0

28

$0.99

$

In Stock, only 1 left!

0

29

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

30

Echo 35161005360

HANDLE - FRONT

$40.99

$

Usually ships in 2-4 days

0
