HCR-150 - Echo Rotating Hedge Trimmer (SN: 07001001 - 07999999) Intake Parts Diagram

Rotating Hedge Trimmer

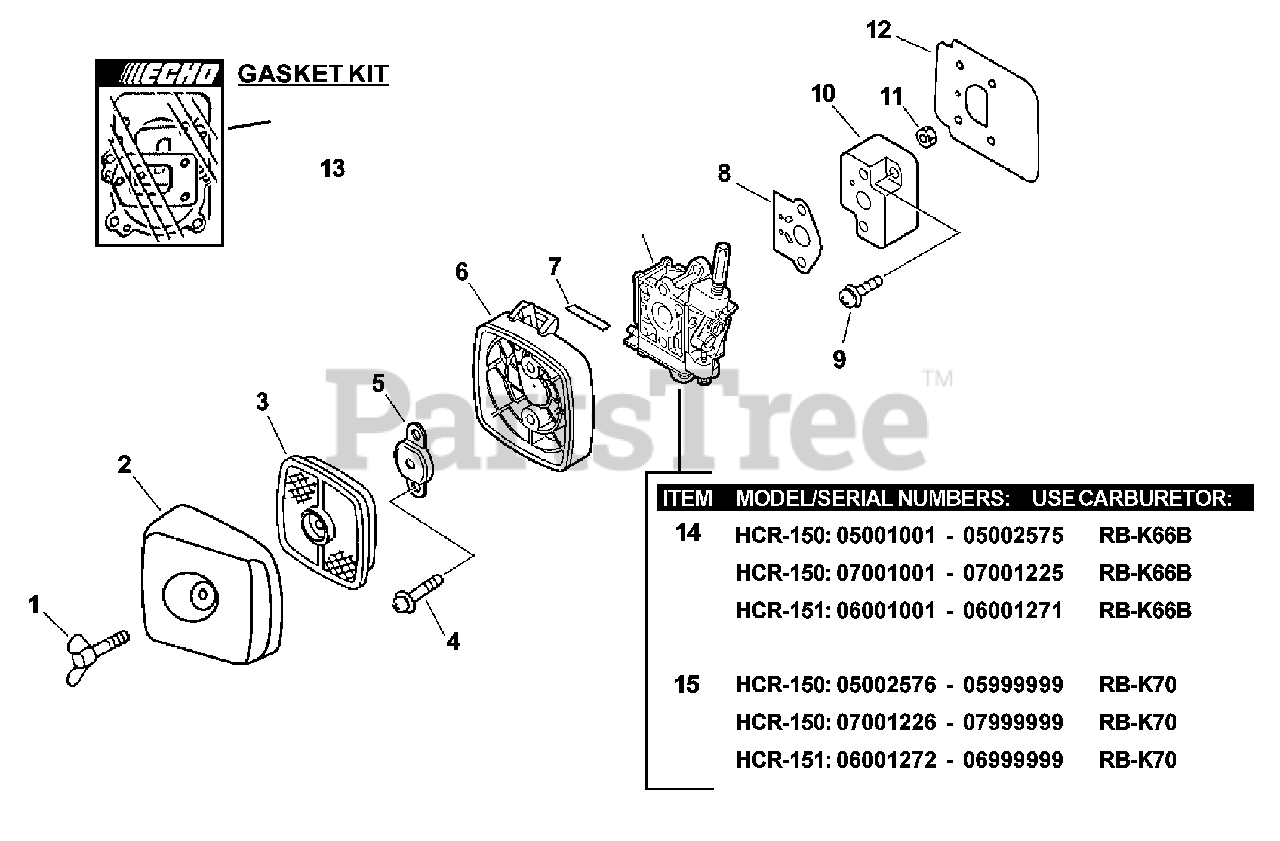

Intake Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

4

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

5

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

6

Echo P021000991

CASE, AIR FILTER - GRAY

$9.49

$

In Stock, Qty 20+

0

7

Echo 89012152730

LABEL - CHOKE

$1.49

$

In Stock, Qty 20+

0

8

Echo 13001013410

GASKET, INTAKE

$1.99

$

In Stock, Qty 20+

0

9

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

10

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.49

$

In Stock, only 1 left!

0

11

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

12

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0

13

Echo P021004710

GASKET KIT

$40.99

$

Usually ships in 2-4 days

0

14

Echo A021000382

CARBURETOR RB-K66B
(Superseded to A021000720)

Note: SUPERSEDES: A021000380 CARBURETOR - RB-K66; A021000381 CARBURETOR - RB-K66A

$82.99

$

In Stock, only 1 left!

0

15

Echo A021000720

CARBURETOR RB-K70
(Superseded to A021000721)

$82.99

$

In Stock, only 1 left!

0
