HCP 630 (UT-01613) - Homelite Pump Pump Parts Diagram

Pump

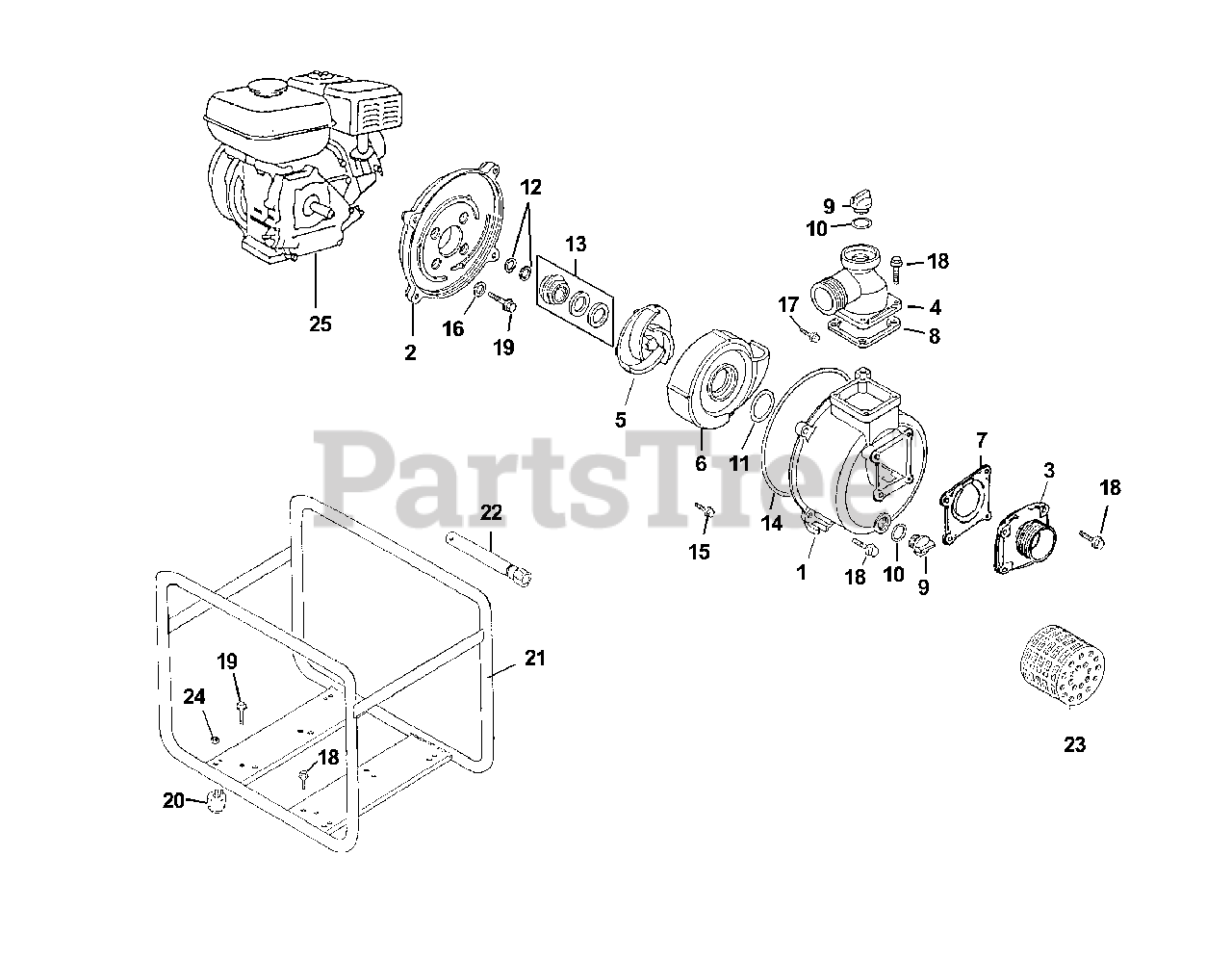

Pump Parts Diagram

  • Title

1

Homelite UP06627

Casing

$

$

Not available

2

Homelite UP06628

Cover, Casing

$

$

Not available

3

Homelite UP06629

Inlet Pipe 3" NPT

$

$

Not available

4

Homelite UP06630

Outlet Pipe 3" NPT

$

$

Not available

5

Homelite UP06631

Impeller

$

$

Not available

6

Homelite UP06632

Case, Volute

$

$

Not available

7

Homelite UP06633

Check Valve, Inlet

$

$

Not available

8

Homelite UP06675

O-Ring 86 x 3.5

$

$

Not available

9

Homelite UP06634

Cap, Filler

$

$

Not available

10

Homelite UP06676

O-Ring 24 x 3.5

$

$

Not available

11

Homelite UP06677

O-Ring 70 x 5.7

$

$

Not available

12

Homelite UP06635

Shim, Adjuster 3mm

$

$

Not available

Homelite UP06636

Shim Adjuster 6mm

$

$

Not available

13

Homelite UP06637

Seal, Mechanical

$

$

Not available

14

Homelite UP06678

O-Ring 225 x 3.5

$

$

Not available

15

Homelite UP06671

Bolt, Flange 6 x 60

$

$

Not available

16

Homelite UP06673

Washer, 8mm

$

$

Currently unavailable

17

Homelite UP06672

Bolt, Flange 6 x 50

$

$

Not available

18

Homelite UP06669

Bolt, Flange 8 x 25

$

$

Not available

19

Homelite UP06667

Bolt, Flange 8 x 28

$

$

Not available

20

Homelite UP06681

Foot, Rubber

$

$

Not available

21

Homelite UP06679

Frame Complete

$

$

Not available

22

Homelite UP06684

Wrench, Spark Plug

$

$

Not available

23

Homelite UP06683

Strainer

$

$

Currently unavailable

24

Homelite UP06682

Nut, Hex 6mm

$

$

Not available

25

Engine, 5.5HP

Note: Revision

$

$

Not available
