HCP 420 (UT-01609) - Homelite Centrifugal Pump Pump Parts Diagram

Centrifugal Pump

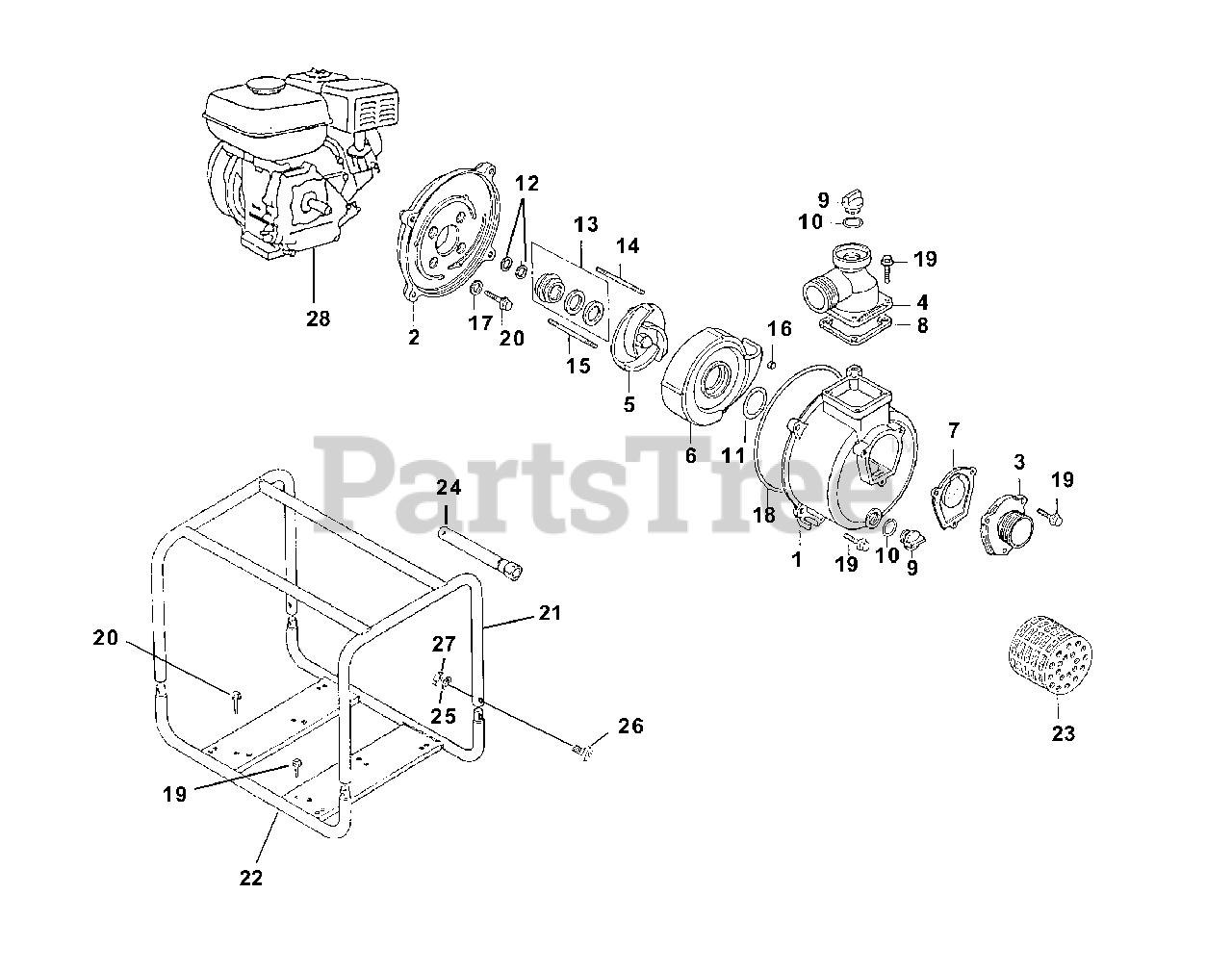

Pump Parts Diagram

  • Title

1

Homelite 0797401

Casing

$

$

Not available

2

Homelite 0797402

Cover, Casing

$

$

Not available

3

Homelite 0797403

Inlet Pipe 2" NPT

$

$

Not available

4

Homelite 0797404

Outlet Pipe 2" NPT

$

$

Currently unavailable

5

Homelite 0797405

Impeller

$

$

Not available

6

Homelite 0797406

Case, Volute

$

$

Not available

7

Homelite 0797407

Check Valve, Inlet

$

$

Not available

8

Homelite 0797408

Packing, Outlet

$

$

Not available

9

Homelite 0797409

Cap, Filler

$

$

Not available

10

Homelite 0797410

Ring, Seal

$

$

Not available

11

Homelite 0797411

O-Ring 49 x 5.7

$22.99

$

Usually ships in 3-7 days

0

12

Homelite 0797412

Shim, Adjuster

$

$

Not available

13

Homelite 0797413

Seal, Mechanical

$

$

Not available

14

Homelite 0797414

Stud, Threaded 6 x 50

$

$

Not available

15

Homelite 0797415

Stud, Threaded 6 x 50

$

$

Not available

16

Homelite 0797416

Nut, 6mm

$

$

Not available

17

Homelite 0797417

Washer, 8mm

$

$

Not available

18

Homelite 0797418

Seal Ring, Casing

$

$

Not available

19

Homelite 0797419

Bolt, Flanged 8 x 25

$

$

Not available

20

Homelite 0797420

Bolt, Flanged 8 x 28

$

$

Not available

21

Homelite 0797422

Upper Frame

$

$

Not available

22

Homelite 0797423

Lower Frame

$

$

Not available

23

Homelite 0797427

Strainer 2" NPT Female
(Superseded to UP03785)

$

$

Not available

24

Homelite 0797428

Wrench, Spark Plug

$

$

Not available

25

Homelite 0797429

Washer

$

$

Not available

26

Homelite 0797430

Screw, Truss Hd. 8 x 30

$

$

Not available

27

Homelite 0797431

Nut, Hex 8mm

$

$

Currently unavailable

28

Engine, 4.0HP

Note: Revision

$

$

Not available
