HCP 120 (UT-06044) - Homelite Plate Compactor Vibration Plate Parts Diagram

Plate Compactor

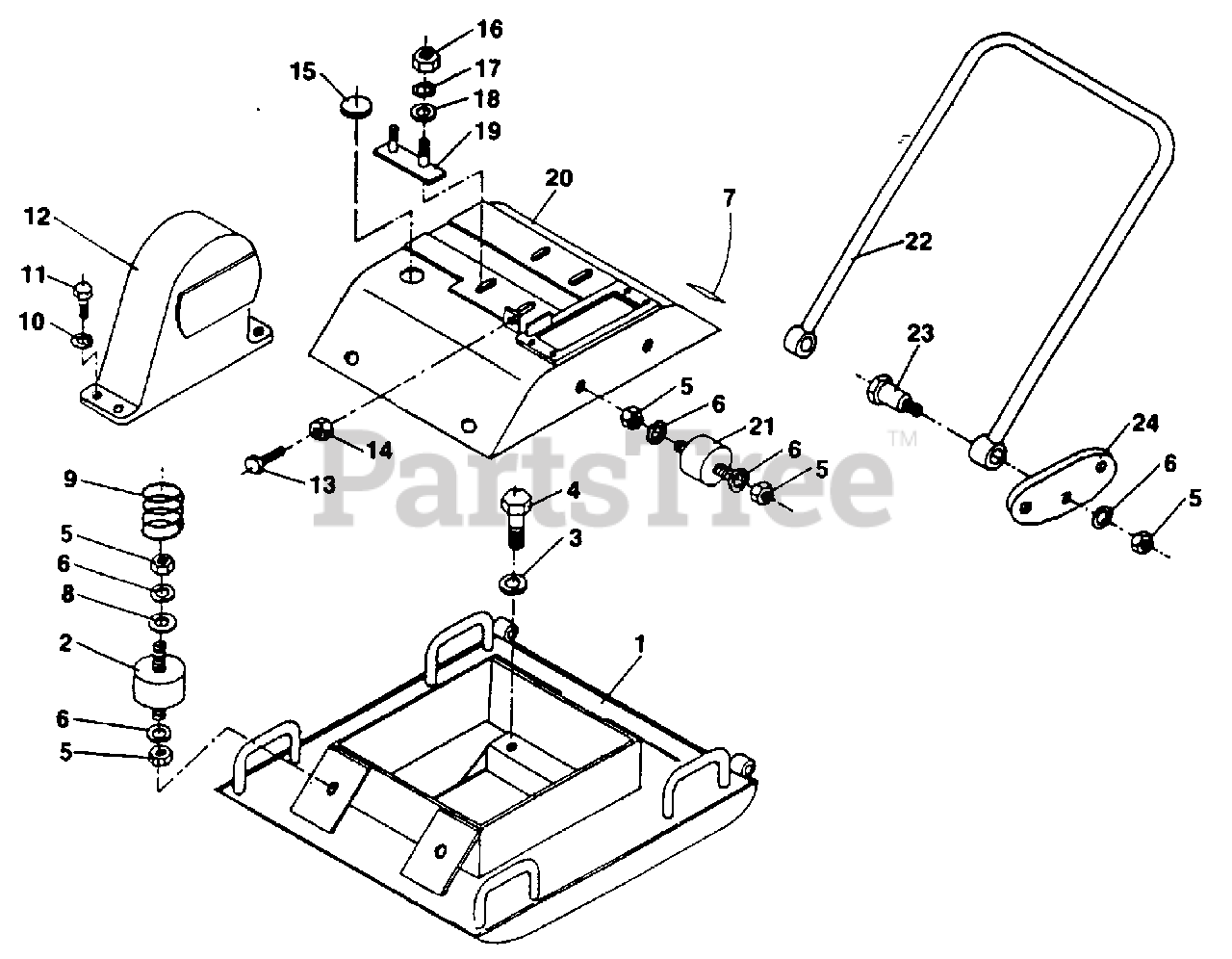

Vibration Plate Parts Diagram

  • Title

1

Homelite 4990602

PLATE- Vibration

$

$

Currently unavailable

2

Homelite 4990608

ABSORBER- Shock

$

$

Currently unavailable

3

Homelite 4990603

WASHER- Spring (m18)

$

$

Currently unavailable

4

Homelite 4990604

BOLT- Hex (m18 x 65)

$

$

Currently unavailable

5

Homelite 4990408

NUT- Hex (m12)

$

$

Currently unavailable

6

Homelite 4990407

WASHER- Spring (m12)

$

$

Currently unavailable

7

Homelite 4990459

DECAL- Caution

$7.49

$

Usually ships in 3-7 days

0

8

Homelite 4990406

WASHER- Plate (m12)

$

$

Currently unavailable

9

Homelite 4990607

SPRING- Earth

$

$

Currently unavailable

10

Homelite 4990411

WASHER-Spring (m10)

$

$

Currently unavailable

11

Homelite 4990433

BOLT- Hex (m10 x 25)

$

$

Currently unavailable

12

Homelite 4990620

COVER- Belt

$

$

Currently unavailable

13

Homelite 4990421

BOLT- Hex (m10 x 45)

$

$

Currently unavailable

14

Homelite 4990422

NUT- Hex (m10)

$

$

Currently unavailable

15

Homelite 4990612

CAP

$

$

Currently unavailable

16

Homelite 4990418

NUT- Hex (m8)

$

$

Currently unavailable

17

Homelite 4990417

WASHER- Spring (m8)

$

$

Currently unavailable

18

Homelite 4990416

WASHER- Plate (m8)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 4990611

SEAT- Engine

$

$

Currently unavailable

20

Homelite 4990610

COVER- Vibration Plate

$

$

Currently unavailable

21

Homelite 4990613

ABSORBER- Shock

$

$

Currently unavailable

22

Homelite 4990615

HANDLE

$391.99

$

Usually ships in 3-7 days

0

23

Homelite 4990616

PIN- Bracket

$

$

Currently unavailable

24

Homelite 4990617

BRACKET- Handle

$

$

Currently unavailable
