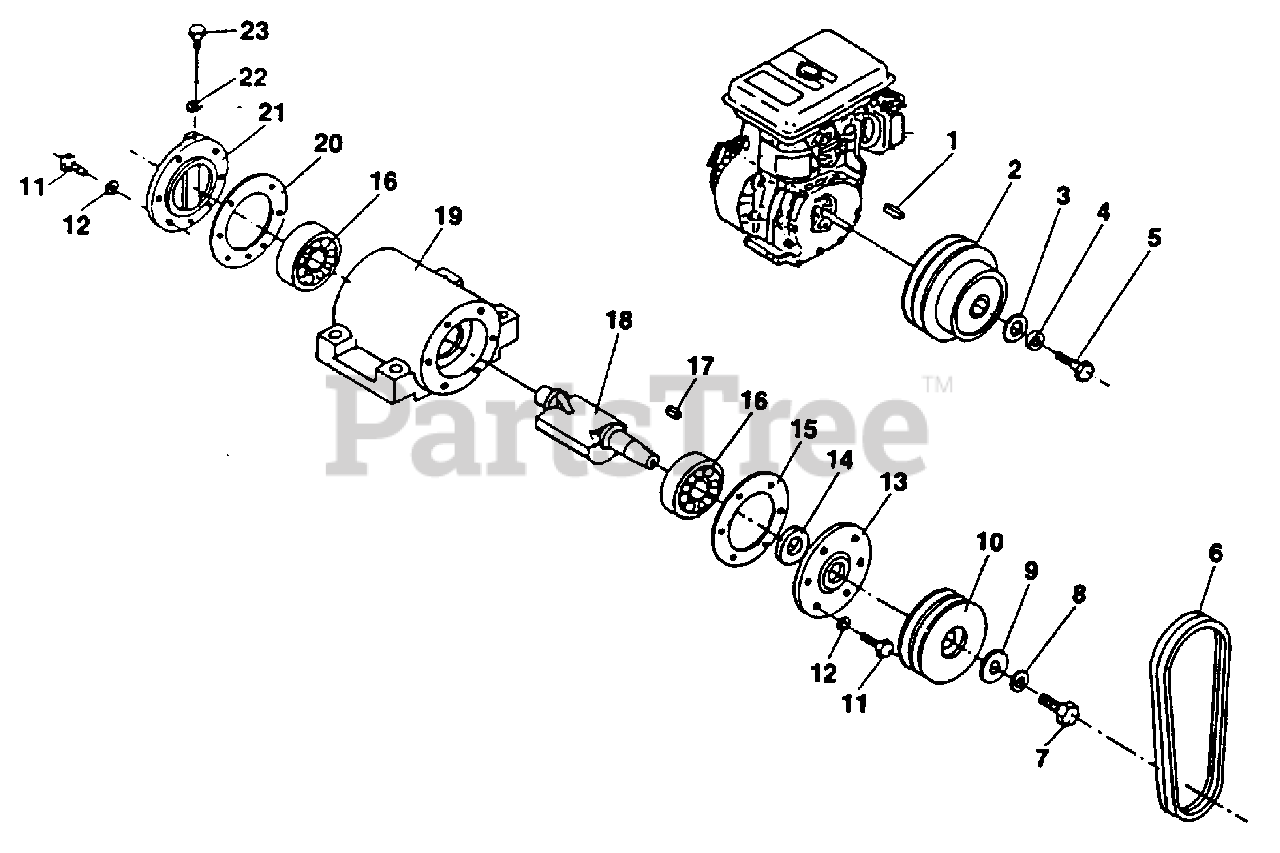

HCP 120 (UT-06044) - Homelite Plate Compactor Eccentric Parts Diagram

Plate Compactor

Eccentric Parts Diagram

  • Title

1

Homelite 4990623

KEY- Parallel

$

$

Currently unavailable

2

Homelite 4990622

CLUTCH- Centrifugal

$

$

Currently unavailable

3

Homelite 4990624

WASHER- Plate (3/8")

$

$

Currently unavailable

4

Homelite 4990625

WASHER- Spring (3/8")

$

$

Currently unavailable

5

Homelite 4990626

BOLT- Hex (3/8 x 1 1/2")

$

$

Currently unavailable

6

Homelite 4990639

BELT- V

$

$

Currently unavailable

7

Homelite 4990453

BOLT- Hex (m14 x 30)

$

$

Currently unavailable

8

Homelite 4990452

WASHER- Spring (m14)

$

$

Currently unavailable

9

Homelite 4990531

WASHER- Plate (m14)

$

$

Currently unavailable

10

Homelite 4990636

PULLEY- V

$

$

Currently unavailable

11

Homelite 4990446

BOLT- Hex (m8 x 20)

$

$

Currently unavailable

12

Homelite 4990417

WASHER- Spring (m8)

$

$

Currently unavailable

13

Homelite 4990632

HOLDER- Bearing

$

$

Currently unavailable

14

Homelite 4990631

SEAL- Oil

$

$

Currently unavailable

15

Homelite 4990630

GASKET

$

$

Currently unavailable

16

Homelite 4990633

BEARING

$

$

Not available

17

Homelite 4990635

KEY- Parallel (12 x 8 x 25)

$

$

Currently unavailable

18

Homelite 4990634

UNIT- Vibration

$

$

Currently unavailable

19

Homelite 4990628

CASE-Vibration Unit

$

$

Currently unavailable

20

Homelite 4990637

GASKET

$

$

Currently unavailable

21

Homelite 4990629

HOLDER- Bearing

$

$

Currently unavailable

22

Homelite 4990403

WASHER- Spring (m16)

$

$

Currently unavailable

23

Homelite 4990638

GAUGE- Oil level

$

$

Currently unavailable
