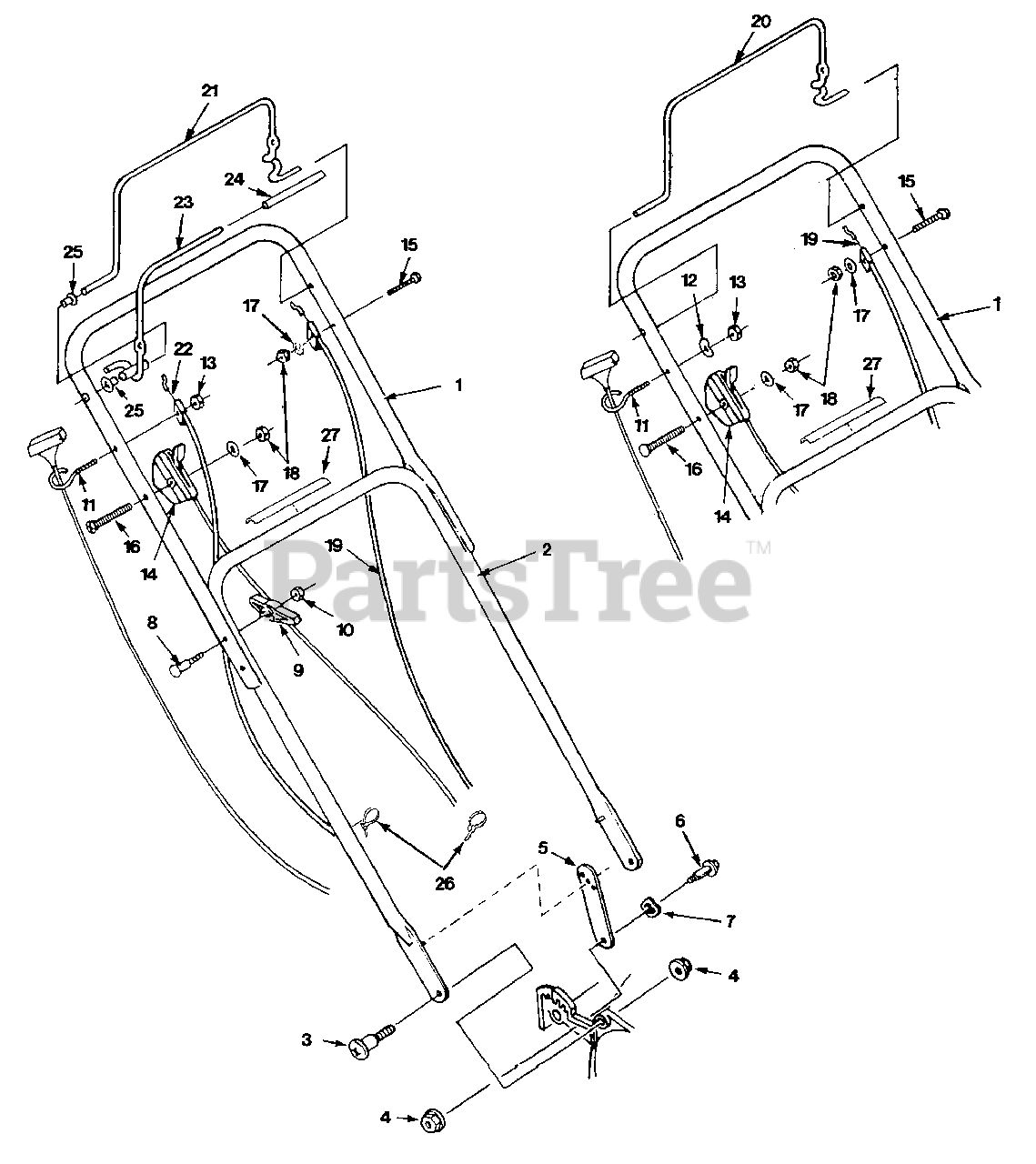

HCM 20 P5 (UT-30525) - Homelite 20" Mulcher Walk-Behind Mower Handles And Controls Parts Diagram

20" Mulcher Walk-Behind Mower

Handles And Controls Parts Diagram

  • Title
1

Homelite JA993637

Handle - upper

$

$

Not available

2

Homelite JA994100

Handle - lower

$

$

Currently unavailable

3

Homelite JA993700

Bolt-handle 5/16-18

$

$

Currently unavailable

4

Homelite JA445775

Nut - hex 5/16-18 flng lock
(Superseded to UP06674)

$

$

Not available

5

Homelite JA359239

Support - handle

$

$

Not available

6

Homelite JA993710

Bolt - handle support 5/16-18

$

$

Not available

7

Homelite JA454025

Washer - wave 5/16

$

$

Not available

8

Homelite JA359102

Bolt - carriage 5/16-18 x 2-1/4

$

$

Not available

9

Homelite JA339550

Knob - handle, plastic

$

$

Not available

10

Homelite JA443106

Nut - hex 5/16-18
(Superseded to 81018)

$

$

Not available

11

Homelite JA991952

Eyebolt-starter rope 1/4-20

$

$

Currently unavailable

12

Washer - curved 1/4

Note: Not Used On This Model

$

$

Not available

13

Homelite JA444708

Nut - hex 1/4-20 lock

$

$

Currently unavailable

14

Homelite JA994699

Control - throttle w/cable

$

$

Currently unavailable

15

Screw - truss hd 1/4-20 x 1-1/2

Note: Not Used On This Model

$

$

Not available

16

Homelite 82550

Screw - truss hd 1/4-20 x 1-3/4

$

$

Not available

17

Homelite JA993731

Washer - star 1/4

$

$

Currently unavailable

18

Homelite JA993730

Nut - hex 1/4-20

$

$

Not available

19

Homelite JA990532

Cable - engine/blade control

$

$

Not available

20

Bail - engine/blade control

Note: Not Used On This Model

$

$

Not available

21

Homelite GP094375

Bail - engine/blade control

$

$

Currently unavailable

22

Homelite JA990533

Cable - traction drive

$

$

Not available

23

Homelite JA993860

Bail - traction drive

$30.99

$

Usually ships in 3-7 days

0

24

Homelite JA993682

Sleeve - drive bail

$

$

Not available

25

Homelite JA993670

Bushing - drive bail

$

$

Not available

26

Homelite JA991636

Cable Tie

$

$

Not available

27

Homelite 04614

Decal - starting instructions

$

$

Currently unavailable
