HCM 20-5 (UT-30524-A) - Homelite 20" Mulcher Walk-Behind Mower Mower, Rear Wheels & Drive Parts Diagram

20" Mulcher Walk-Behind Mower

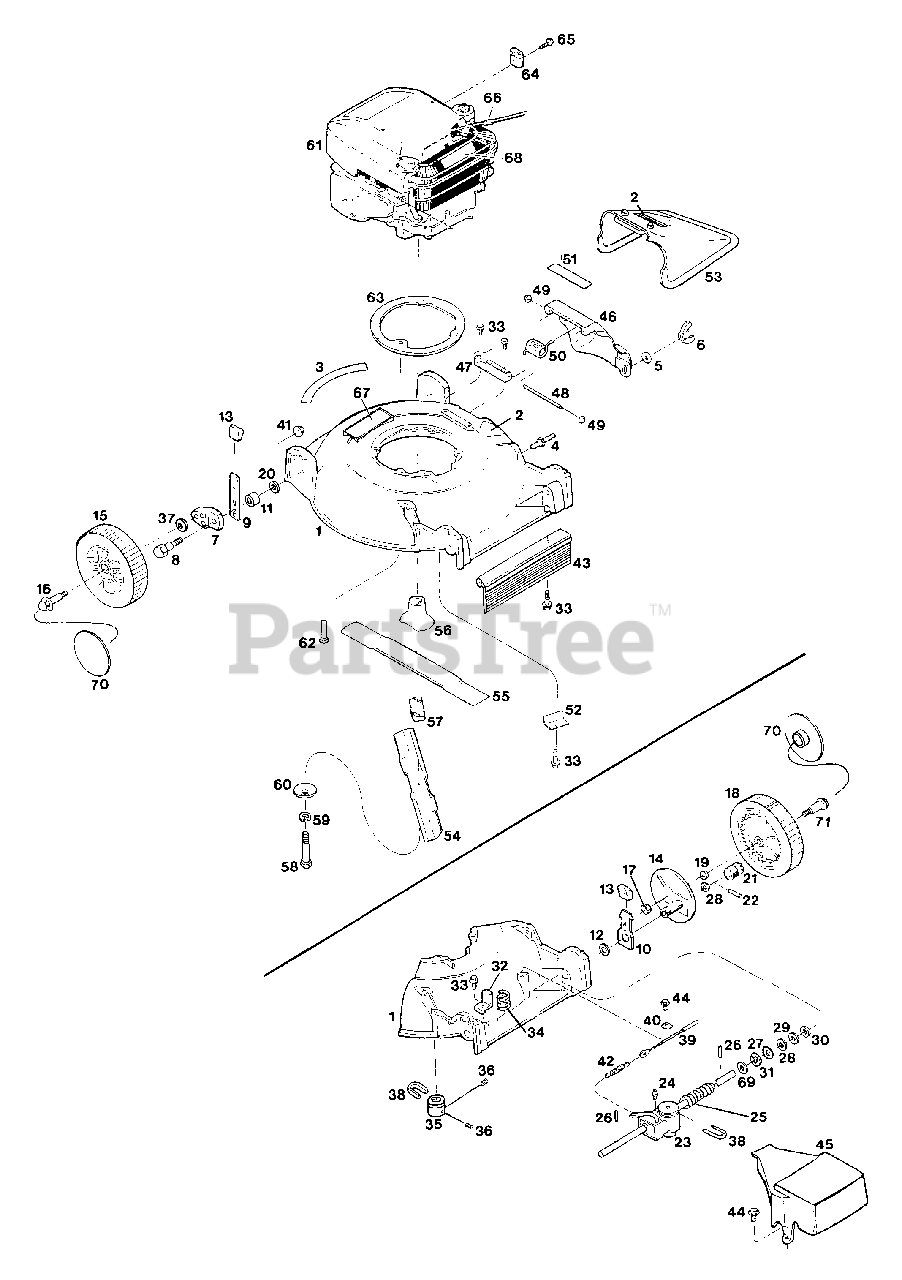

Mower, Rear Wheels & Drive Parts Diagram

  • Title

1

Homelite GP023902

Deck - 20" push
(Superseded to A04613)

$

$

Currently unavailable

2

Homelite JA992264

Decal - DANGER

$

$

Not available

3

Homelite JA995064

Decal - logo

$

$

Currently unavailable

4

Homelite JA992964

Stud - 1/4-20 x 3/4

$

$

Not available

5

Homelite GP615690

Washer - flat 1/4

$

$

Not available

6

Homelite JA992974

Nut - wing 1/4-20 nylok

$

$

Not available

7

Homelite GP023895

Arm - wheel mount

$

$

Currently unavailable

8

Homelite GP166730

Bolt - shoulder 5/16-18 x 1-5/8

$

$

Currently unavailable

9

Homelite JA993658

Lever - height adjuster (Left Front & Right Rear)
(Superseded to GP588452)

$

$

Not available

Homelite JA993657

Lever - height adjuster (Right Front & Left Rear)
(Superseded to GP588451)

$

$

Currently unavailable

10

Lever - height adjuster Right Rear

Note: Not Used On This Model.

$

$

Not available

Lever - height adjuster Left Rear

Note: Not Used On This Model.

$

$

Not available

Lever - height adjuster Right Front

Note: Not Used On This Model.

$

$

Not available

Lever - height adjuster Left Front

Note: Not Used On This Model.

$

$

Not available

11

Homelite JA358362

Spacer - lever

$

$

Not available

12

Spacer - lever, rear

Note: Not Used On This Model.

$

$

Not available

13

Homelite JA336623

Tip - adjuster lever
(Superseded to UP06697)

$

$

Not available

14

Support - drive wheel

Note: Not Used On This Model.

$

$

Not available

15

Homelite GP043250

Wheel - 8" with tire

$

$

Currently unavailable

16

Homelite GP166741

Bolt - wheel 3/8-16 x 2 1/8

$

$

Currently unavailable

17

Nut - hex 3/8-16 lock

Note: Not Used On This Model.

$

$

Not available

18

Wheel - 8" power propelled

Note: Not Used On This Model.

$

$

Not available

19

Washer - flat 3/8

Note: Not Used On This Model.

$

$

Not available

20

Homelite JA453009

Washer - flat 5/16
(Superseded to UP07173)

$

$

Not available

21

Pinion - drive RH

Note: Not Used On This Model.

$

$

Not available

Pinion - drive LH

Note: Not Used On This Model.

$

$

Not available

22

Pin - drive

Note: Not Used On This Model.

$

$

Not available

23

Transmission - 1 speed

Note: Not Used On This Model.

$

$

Not available

24

Vent - Transmission

Note: Not Used On This Model.

$

$

Not available

25

Shield - dust, plastic

Note: Not Used On This Model.

$

$

Not available

26

Pin - roll 1/8 x 7/8

Note: Not Used On This Model.

$

$

Not available

27

Washer - shim

Note: Not Used On This Model.

$

$

Not available

28

Washer - flat 9/16, thin

Note: Not Used On This Model.

$

$

Not available

29

Washer - flat 9/16, thick

Note: Not Used On This Model.

$

$

Not available

30

Washer - wave 9/16

Note: Not Used On This Model.

$

$

Not available

31

E - Ring

Note: Not Used On This Model.

$

$

Not available

32

Bracket - Transmission

Note: Not Used On This Model.

$

$

Not available

33

Homelite JA408878

Screw - hex tap 1/4-20 x 3/4

$

$

Not available

34

Spring - compression

Note: Not Used On This Model.

$

$

Not available

35

Pulley - drive

Note: Not Used On This Model.

$

$

Not available

36

Screw - set 1/4-20 x 3/8

Note: Not Used On This Model.

$

$

Not available

37

Homelite GP715607

Washer - Belleville

$4.49

$

Usually ships in 3-7 days

0

38

Belt - traction drive

Note: Not Used On This Model.

$

$

Not available

39

Cable - traction drive

Note: Not Used On This Model.

$

$

Not available

40

Clamp - drive cable

Note: Not Used On This Model.

$

$

Not available

41

Homelite JA445775

Nut - hex 5/16-18 flng lock
(Superseded to UP06674)

$

$

Not available

42

Spring - extension

Note: Not Used On This Model.

$

$

Not available

43

Homelite GP115468

Shield - trailing, plastic

$

$

Currently unavailable

44

Screw - tapping 1/4-20 x 1/2

Note: Not Used On This Model.

$

$

Not available

45

Cover - Rear Drive

Note: Not Used On This Model.

$

$

Not available

46

Homelite 02835

Cover - Mulch

$

$

Not available

47

Homelite GP095003

Bracket - Cover hinge

$

$

Currently unavailable

48

Homelite 02832

Pin - hinge

$

$

Not available

49

Homelite GP452128

Nut - push on 1/4

$

$

Currently unavailable

50

Homelite 02833

Spring - Mulch cover

$11.99

$

Usually ships in 3-7 days

0

51

Homelite 04465

Decal - DANGER, Mulch cover

$7.49

$

Usually ships in 3-7 days

0

52

Homelite JA994703

Cover - belt opening

$

$

Currently unavailable

53

Homelite 03076

Deflector - discharge opening

$

$

Not available

54

Homelite GP031420

Blade - mulcher 20

$

$

Currently unavailable

55

Homelite GP031421

Blade - recutter

$

$

Not available

56

Homelite GP095217

Adaptor - blade

$

$

Currently unavailable

57

Homelite GP094911

Spacer - blade

$

$

Not available

58

Homelite GP382846

Bolt - hex 3/8-24 x 3-1/2 Gde 8

$

$

Not available

59

Homelite GP156919

Washer - split lock 3/8 HD

$

$

Currently unavailable

60

Homelite GP164681

Washer - conical 3/8

$

$

Currently unavailable

61

Engine

Note: For engine replacement parts, locate the engine brand name, model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

62

Homelite GP382881

Bolt - hex 3/8-16 x 1-3/4 sems

$18.99

$

Usually ships in 3-7 days

0

63

Homelite GP023883

Ring - engine to deck

$

$

Currently unavailable

64

Homelite JA991876

Clamp - cable

$

$

Currently unavailable

65

Homelite GP150623

Screw - tap #10-16 x 5/8

$7.49

$

Usually ships in 3-7 days

0

66

Homelite JA990567

Stop - rope

$

$

Not available

67

Homelite 03482

Decal - recycle mulcher

$

$

Currently unavailable

68

Homelite 04443

Decal - blade warning

$10.99

$

Usually ships in 3-7 days

0

69

Washer - flat

Note: Not Used On This Model.

$

$

Not available

70

Homelite GP043254

Hubcap

$

$

Currently unavailable

71

Bolt-wheel 3/8-16 x 2

Note: Not Used On This Model.

$

$

Not available
