HCA-266 - Echo Articulating Hedge Trimmer (SN: T43213001001 - T43213999999) Cutting Head, Gear Case Parts Diagram

Articulating Hedge Trimmer

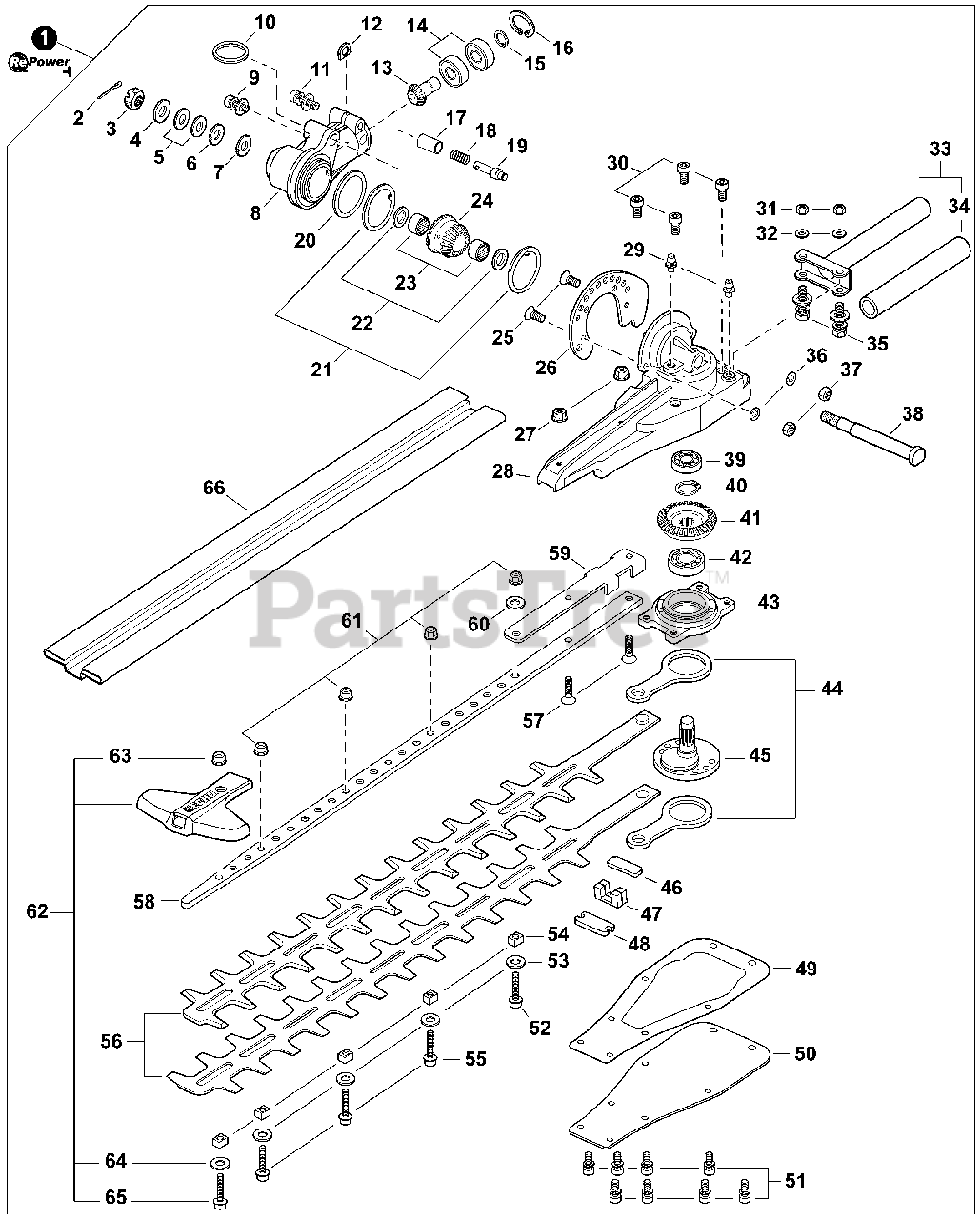

Cutting Head, Gear Case Parts Diagram

  • Title

1

Echo 90092

HEAD ASSY, CUTTING

Note: Includes Items 2 - 66

$552.99

$

In Stock, Qty 6

0

2

Echo 9300016180

PIN, COTTER 6×18

$0.99

$

In Stock, Qty 20+

0

3

Echo 90052900008

NUT 8

$8.49

$

Usually ships in 2-4 days

0

4

Echo V306000140

WASHER 8

$2.49

$

In Stock, only 1 left!

0

5

Echo V347000010

WASHER, CONICAL

$4.49

$

In Stock, Qty 9

0

6

Echo V340000110

WASHER

$24.99

$

In Stock, only 4 left!

0

7

Echo V110000040

GASKET, GEAR CASE

$4.99

$

Usually ships in 2-4 days

0

8

Echo C531000293

CASE, GEAR

$51.99

$

In Stock, only 1 left!

0

9

Echo 90016205012

BOLT 5×12

$0.99

$

In Stock, Qty 20+

0

10

Echo V583000050

RING, RETAINING

$2.49

$

In Stock, only 2 left!

0

11

Echo 90016205025

BOLT 5×25

$0.99

$

In Stock, Qty 20+

0

12

Echo V340000170

SHIM

$0.99

$

Usually ships in 2-4 days

0

13

Echo V651000240

GEAR, BEVEL

$44.99

$

In Stock, Qty 7

0

14

Echo 90085906900

BEARING, BALL 6900

$20.99

$

In Stock, Qty 20+

0

15

Echo V583000060

RING, SNAP

$5.99

$

In Stock, only 2 left!

0

16

Echo 90070200022

RING, SNAP 22

$1.99

$

In Stock, Qty 5

0

17

Echo V355000310

COLLAR 8

$6.49

$

Usually ships in 2-4 days

0

18

Echo V450000420

SPRING, COMPRESSION

$2.49

$

Usually ships in 2-4 days

0

19

Echo V642000020

LINCHPIN

$28.99

$

In Stock, only 2 left!

0

20

Echo 90072400032

O-RING 32

$15.99

$

In Stock, only 1 left!

0

21

Echo V340000120

WASHER

$8.99

$

In Stock, only 2 left!

0

22

Echo V307000150

WASHER 10

$1.99

$

In Stock, Qty 5

0

23

Echo V555000040

BEARING, NEEDLE 10

$11.99

$

In Stock, Qty 5

0

24

Echo V651000250

GEAR, BEVEL

$100.99

$

In Stock, Qty 8

0

25

Echo 90021204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

26

Echo C465000010

BRACKET, ADJUSTOR

$32.99

$

Usually ships in 2-4 days

0

27

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

28

Echo C531000302

CASE, GEAR - CUTTER

$168.99

$

Usually ships in 2-4 days

0

29

Echo 88011010860

FITTING, GREASE

$5.49

$

Usually ships in 2-4 days

0

30

Echo 90010505008

BOLT 5×8

$0.99

$

In Stock, Qty 20+

0

31

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

32

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

33

Echo 35130512360

ADJUSTOR ASSY, HANDLE

Note: Includes Item 34

$24.99

$

In Stock, Qty 12

0

34

Echo 35131512360

GRIP, HANDLE

$10.99

$

Usually ships in 2-4 days

0

35

Echo 90014205028

BOLT 5×28

$0.99

$

In Stock, Qty 20+

0

36

Echo 90060500004

WASHER, SPRING 4mm

$0.99

$

In Stock, Qty 20+

0

37

Echo 90056000004

NUT, LOCK 4

$0.99

$

In Stock, Qty 20+

0

38

Echo C534000260

SHAFT, GEAR

$55.99

$

Usually ships in 2-4 days

0

39

Echo 90085506900

BEARING, BALL 6900

$18.99

$

In Stock, Qty 5

0

40

Echo V583000040

RING, SNAP 11

$1.49

$

In Stock, Qty 19

0

41

Echo V651000260

GEAR, BEVEL

$86.99

$

In Stock, Qty 6

0

42

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$9.49

$

In Stock, only 3 left!

0

43

Echo C503000072

HOLDER, BEARING

$43.99

$

In Stock, Qty 8

0

44

Echo C532000121

ROD, CONNECTING

$23.99

$

In Stock, only 2 left!

0

45

Echo C533000041

CAM

$99.99

$

In Stock, only 4 left!

0

46

Echo C538000100

GUIDE, CUTTER
(Superseded to C538000101)

$1.49

$

In Stock, Qty 7

0

47

Echo V541000130

SEAL

$1.49

$

In Stock, Qty 20+

0

48

Echo C538000110

GUIDE, CUTTER
(Superseded to C538000111)

$1.49

$

In Stock, only 1 left!

0

49

Echo V110000051

GASKET, GEAR CASE

$2.49

$

In Stock, only 2 left!

0

50

Echo C539000010

COVER, GEAR CASE

$53.99

$

Usually ships in 2-4 days

0

51

Echo 90016204014

BOLT 4×14

$1.49

$

In Stock, Qty 5

0

52

Echo 9110705022

BOLT, FLANGE 5×22

$0.99

$

In Stock, Qty 20+

0

53

Echo 17721421860

WASHER 5

$2.49

$

In Stock, Qty 20+

0

54

Echo V353000250

GUIDE, BLADE 5

$5.49

$

In Stock, Qty 20+

0

55

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

56

Echo X411000710

CUTTER

$52.99

$

In Stock, Qty 8

0

57

Echo 90017505020

BOLT 5×20

$0.99

$

In Stock, Qty 14

0

58

Echo X425000480

SUPPORT, CUTTER L= 558.3 mm

$45.99

$

Usually ships in 2-4 days

0

59

Echo C538000120

GUIDE, CUTTER

$4.49

$

Usually ships in 2-4 days

0

60

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

61

Echo 9210805000

NUT, FLANGE M5

$0.99

$

In Stock, Qty 20+

0

62

Echo 99988802010

TIP GUARD KIT

Note: Includes Items 63-65

$9.99

$

Usually ships in 2-4 days

0

63

Echo 9210805000

NUT, FLANGE M5

$0.99

$

In Stock, Qty 20+

0

64

Echo 17721421860

WASHER 5

$2.49

$

In Stock, Qty 20+

0

65

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

66

Echo X495000061

SCABBARD

$14.99

$

Usually ships in 2-4 days

0
