Echo HCA-2620 - Echo Articulating Hedge Trimmer (SN: U00315001001 - U00315999999) Control Handle Parts Lookup with Diagrams

1

Echo P021052270

CONTROL HANDLE ASSY

Note: Includes Items 2-15

$35.99

$

In Stock, only 2 left!

2

Echo P021044371

CONTROL HANDLE KIT

Note: Includes Item 3

$10.99

$

In Stock, only 1 left!

3

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

4

Echo P100002240

CABLE ASSY, CONTROL

Note: Includes Items 5-7

$19.99

$

Usually ships in 2-4 days

5

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

6

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

7

Echo V541000600

SEAL, SWITCH

$1.49

$

Usually ships in 2-4 days

8

Echo 90051800006

NUT, FLANGE M6

$1.49

$

In Stock, Qty 11

9

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 8

10

Echo C453000482

TRIGGER, THROTTLE

$2.99

$

In Stock, Qty 20+

11

Echo V452001520

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

12

Echo C460000441

LEVER, THROTTLE LOCKOUT

$1.49

$

In Stock, Qty 20+

13

Echo V452001510

SPRING, TORSION

$1.49

$

In Stock, Qty 9

14

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

15

Echo V495003020

CLAMP

$1.49

$

In Stock, Qty 9

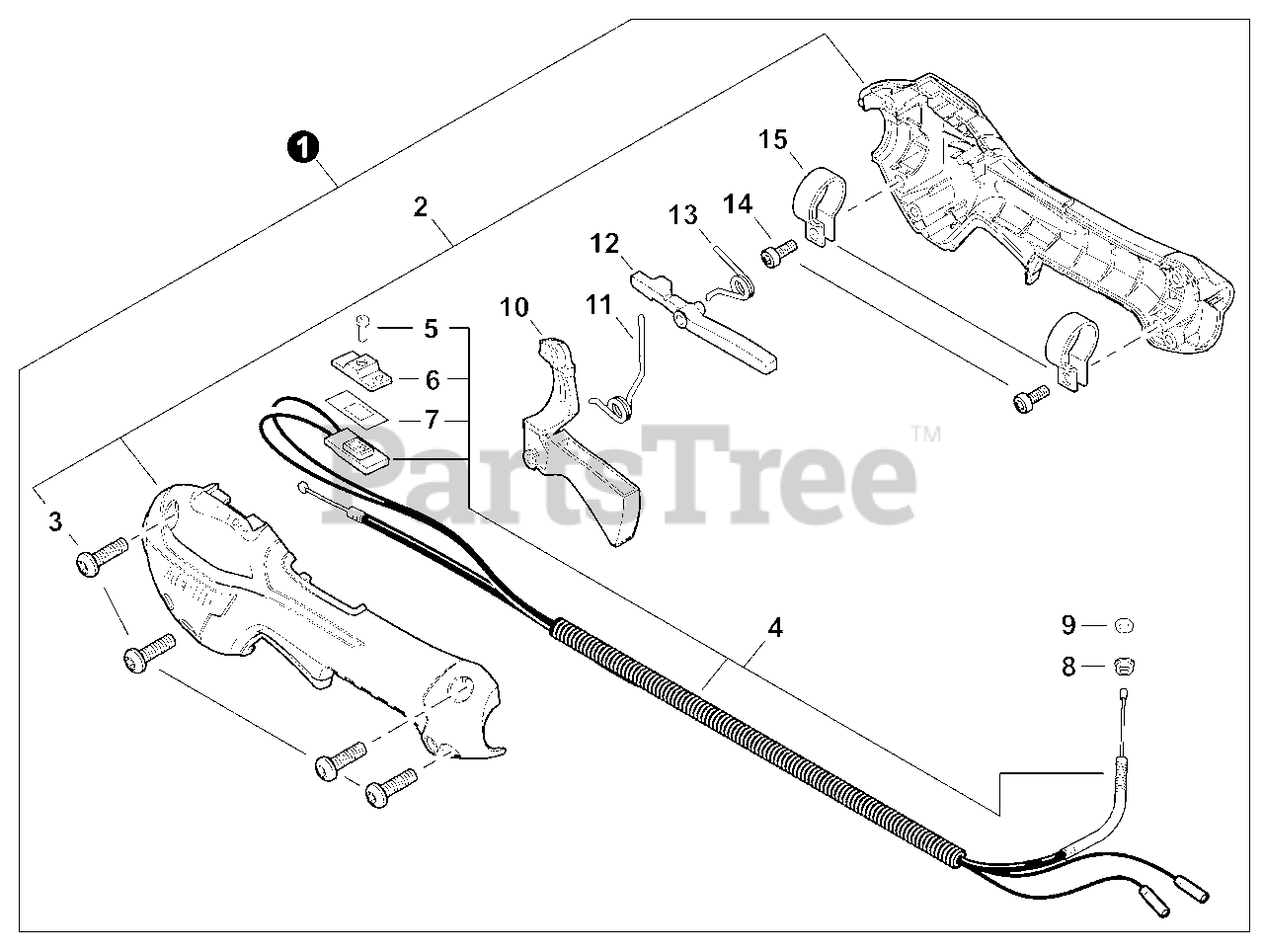

HCA-2620 - Echo Articulating Hedge Trimmer (SN: U00315001001 - U00315999999) Control Handle Parts Diagram

Control Handle Parts Diagram

Echo P021052270

Echo P021044371

Echo V805000000

Echo P100002240

Echo 9154503010

Echo A444000020

Echo V541000600

Echo 90051800006

Echo 90050200006

Echo C453000482

Echo V452001520

Echo C460000441

Echo V452001510

Echo V805000150

Echo V495003020
