HCA-261 - Echo Articulating Hedge Trimmer (SN: 02001001 - 02999999) Carburetor -- WYJ-276 Parts Diagram

Articulating Hedge Trimmer

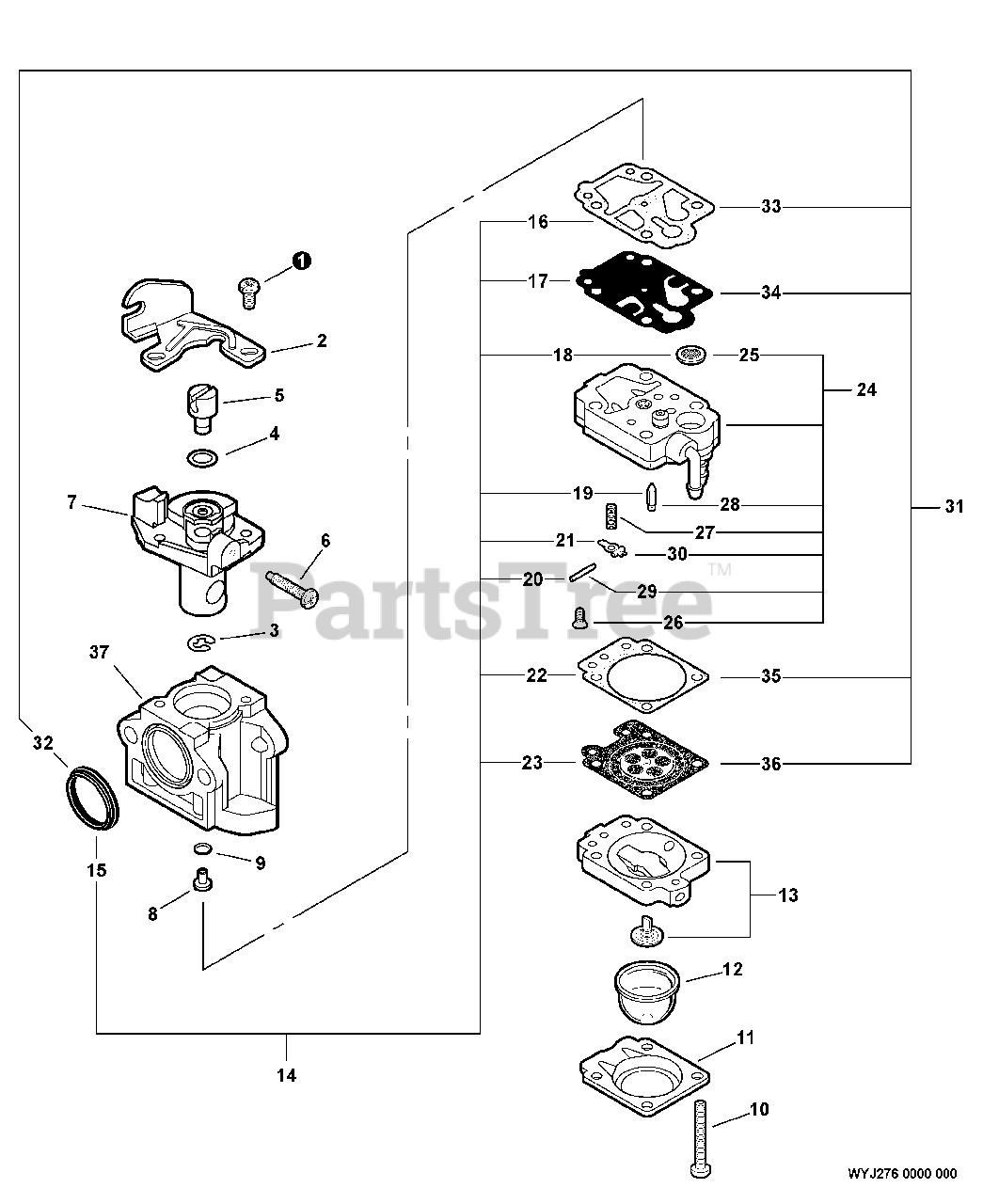

Carburetor -- WYJ-276 Parts Diagram

  • Title

Echo A021000240

CARBURETOR WYJ-276
(Superseded to A021000241)

$72.99

$

Usually ships in 2-4 days

0

1

Echo 12311440630

SCREW

$2.49

$

In Stock, only 3 left!

0

2

Echo P003000180

BRACKET, CABLE

$1.99

$

Usually ships in 2-4 days

0

3

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

4

Echo 12314954230

WASHER

$0.99

$

In Stock, only 1 left!

0

5

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

6

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

7

------------------

THROTTLE VALVE ASSY

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

8

Echo P003000470

JET

$4.49

$

Usually ships in 2-4 days

0

9

Echo 12318305960

O-RING

$1.99

$

In Stock, Qty 5

0

10

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+

0

11

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

12

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

13

Echo 12318005560

PURGE BASE ASSY

$7.49

$

In Stock, only 1 left!

0

14

Echo P003000190

REPAIR KIT

Note: Includes ITEMS 15-23

$14.99

$

In Stock, Qty 8

0

15

------------------

SEAL

$

$

Not available

16

------------------

GASKET, PUMP

$

$

Not available

17

------------------

DIAPHRAGM, PUMP

$

$

Not available

18

------------------

STRAINER

$

$

Not available

19

------------------

VALVE, INLET NEEDLE

$

$

Not available

20

------------------

PIN, METERING LEVER

$

$

Not available

21

------------------

LEVER, METERING

$

$

Not available

22

------------------

GASKET, METERING

$

$

Not available

23

------------------

DIAPHRAGM, METERING

$

$

Not available

24

Echo 12317905560

BASE, PURGE

Note: Includes ITEMS 25-30

$16.99

$

In Stock, only 1 left!

0

25

------------------

STRAINER

$

$

Not available

26

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

27

Echo 12312205560

SPRING, METERING LEVER

$3.99

$

Usually ships in 2-4 days

0

28

------------------

VALVE, INLET NEEDLE

$

$

Not available

29

------------------

PIN, METERING LEVER

$

$

Not available

30

------------------

LEVER, METERING

$

$

Not available

31

Echo P003000200

DIAPHRAGM/GASKET KIT

Note: Includes ITEMS 32-36

$8.99

$

In Stock, only 1 left!

0

32

------------------

SEAL

$

$

Not available

33

------------------

GASKET, PUMP

$

$

Not available

34

------------------

DIAPHRAGM, PUMP

$

$

Not available

35

------------------

GASKET, METERING

$

$

Not available

36

------------------

DIAPHRAGM, METERING

$

$

Not available

37

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available
