HCA-2400 - Echo Articulating Hedge Trimmer (Type 1E) Intake, Exhaust Parts Diagram

Articulating Hedge Trimmer (Type 1E)

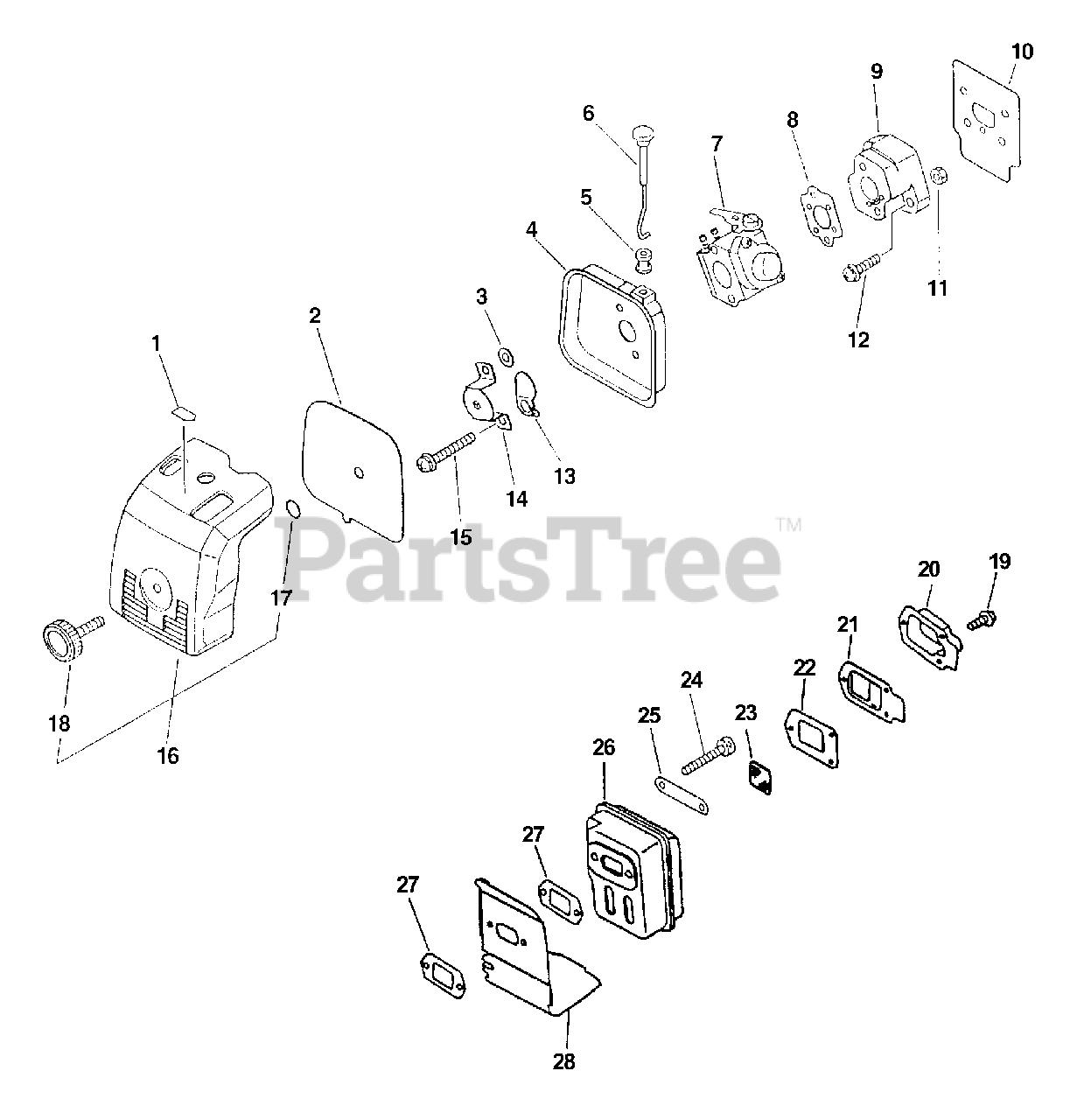

Intake, Exhaust Parts Diagram

  • Title
1

Echo 89012152130

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

2

Echo 13031051830

FILTER, AIR - HEAVY DUTY

$7.49

$

In Stock, Qty 20+

0

3

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 13031451730

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

5

$1.99

$

In Stock, Qty 8

0

6

Echo 17851051730

ROD, CHOKE

$4.99

$

In Stock, only 1 left!

0

7

Echo 12300052133

CARBURETOR WT-424C

$94.99

$

In Stock, only 1 left!

0

8

Echo 13001005960

GASKET, INTAKE

Note: Included In GASKET KIT

$1.99

$

In Stock, only 2 left!

0

9

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

10

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 16

0

11

$0.99

$

In Stock, Qty 20+

0

12

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, Qty 5

0

13

Echo 17851505060

SHUTTER, CHOKE

$2.99

$

In Stock, Qty 5

0

14

Echo 12901152130

PLATE, PREVENT
(Superseded to 12901152131)

$5.49

$

In Stock, only 3 left!

0

15

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

16

Echo 13030251731

AIR FILTER COVER ASSY
(Superseded to 13030252130)

Note: Includes ITEMS 17-18

$15.99

$

In Stock, Qty 6

0

17

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 11

0

18

Echo 13040616331

THUMBSCREW

$5.49

$

In Stock, only 1 left!

0

19

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 19

0

20

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

21

Echo 14581852130

GUIDE, EXHAUST - OUTER

$7.49

$

Usually ships in 2-4 days

0

22

Echo 14586642031

GASKET, EXHAUST

Note: Included In GASKET KIT

$2.49

$

In Stock, Qty 6

0

23

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

24

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 18

0

25

$1.49

$

In Stock, Qty 5

0

26

$46.99

$

In Stock, only 1 left!

0

27

Echo V104000160

GASKET, EXHAUST

Note: Included In GASKET KIT

$0.99

$

In Stock, Qty 16

0

28

Echo 14563142030

COVER, MUFFLER
(Superseded to A320000250)

$4.99

$

In Stock, Qty 14

0

29

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available
