HCA-2400 - Echo Articulating Hedge Trimmer (Type 1E) Engine, Crankcase, Cylinder Cover, Clutch Parts Diagram

Articulating Hedge Trimmer (Type 1E)

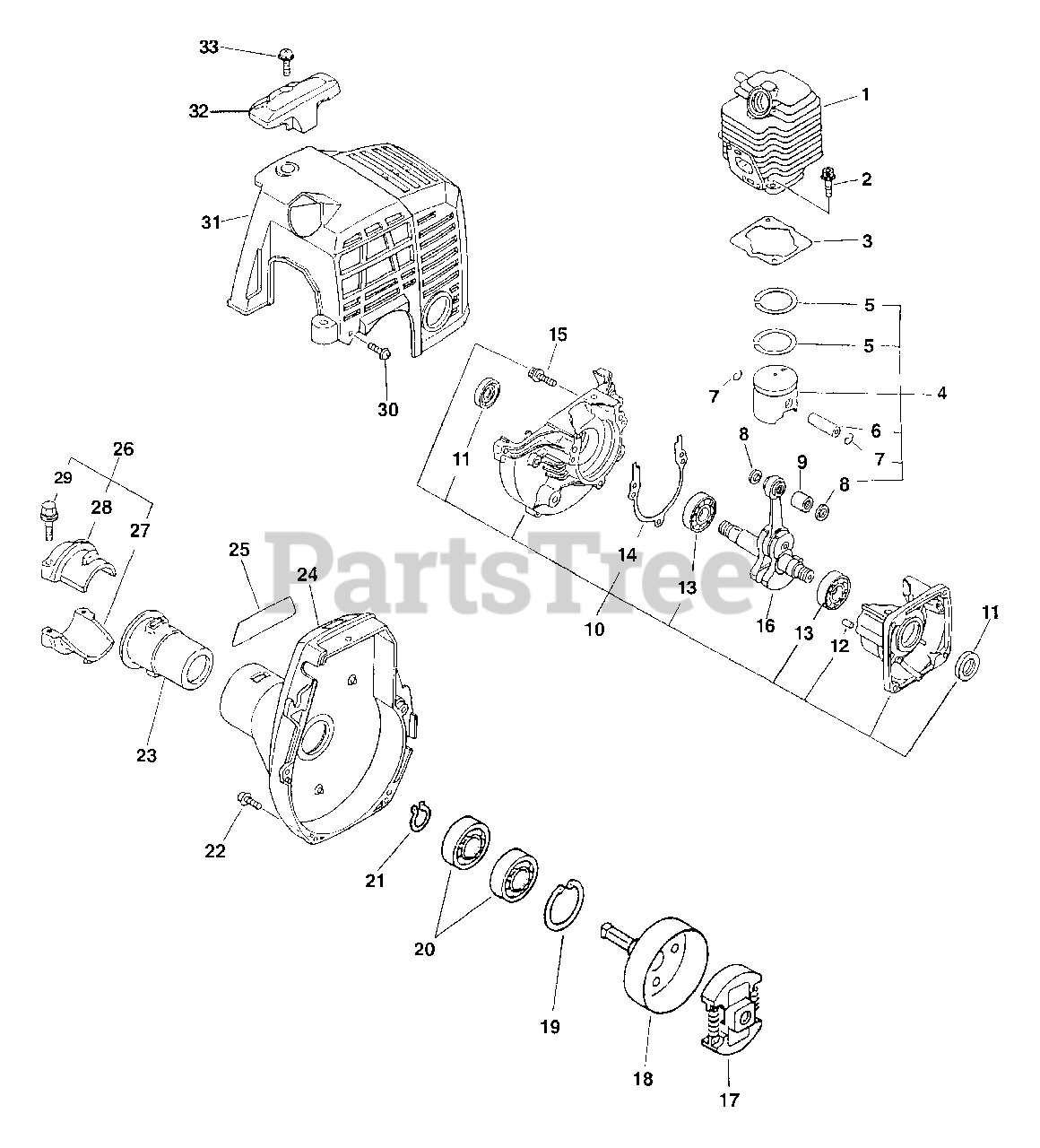

Engine, Crankcase, Cylinder Cover, Clutch Parts Diagram

  • Title

1

Echo 10100308960

CYLINDER KIT
(Superseded to P021035810)

$

$

Not available

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, only 4 left!

0

4

Echo 10000009563

PISTON KIT
(Superseded to 10000052130)

Note: Includes ITEMS 5-8

$70.99

$

In Stock, only 1 left!

0

5

Echo 10001109560

RING, PISTON

$8.49

$

In Stock, only 1 left!

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

$9.99

$

In Stock, only 2 left!

0

10

------------------

CRANKCASE KIT

Note: Includes ITEMS 11-15

$

$

Not available

11

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

12

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

13

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

14

------------------

GASKET, CRANKCASE

$

$

Not available

15

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

16

------------------

CRANKSHAFT ASSY

$

$

Not available

17

Echo 17500056830

CLUTCH ASSY
(Superseded to 17500056831)

$27.99

$

In Stock, Qty 5

0

18

Echo 17500548930

DRUM, CLUTCH
(Superseded to 17500548931)

$13.99

$

In Stock, Qty 6

0

19

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 13

0

20

Echo 9405106001

BEARING, BALL - 6001
(Superseded to 9406106001)

$6.49

$

In Stock, Qty 6

0

21

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

22

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

23

Echo 61091055230

CUSHION

$7.49

$

Usually ships in 2-4 days

0

24

Echo 10150352131

CASE, FAN

$65.99

$

In Stock, only 1 left!

0

25

Echo 89011512360

LABEL - MODEL

$6.99

$

Usually ships in 2-4 days

0

26

Echo 61090355230

MAIN PIPE CLAMP KIT

Note: Includes ITEMS 27-29

$18.99

$

Usually ships in 2-4 days

0

27

Echo A575000100

CLAMP, MAIN PIPE - LOWER

$8.49

$

Usually ships in 2-4 days

0

28

Echo 61092227432

CLAMP, MAIN PIPE - UPPER

$5.99

$

Usually ships in 2-4 days

0

29

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

30

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

31

Echo 10151448930

COVER, ENGINE

$11.99

$

In Stock, Qty 10

0

32

Echo 15991254130

GUARD - TOP

$7.99

$

In Stock, Qty 7

0

33

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

34

Echo SB1027

SHORT BLOCK -- SB1027
(Superseded to Discontinued)

$

$

Not available

35

Echo 88900005960

GASKET KIT
(Superseded to Discontinued)

$

$

Not available
