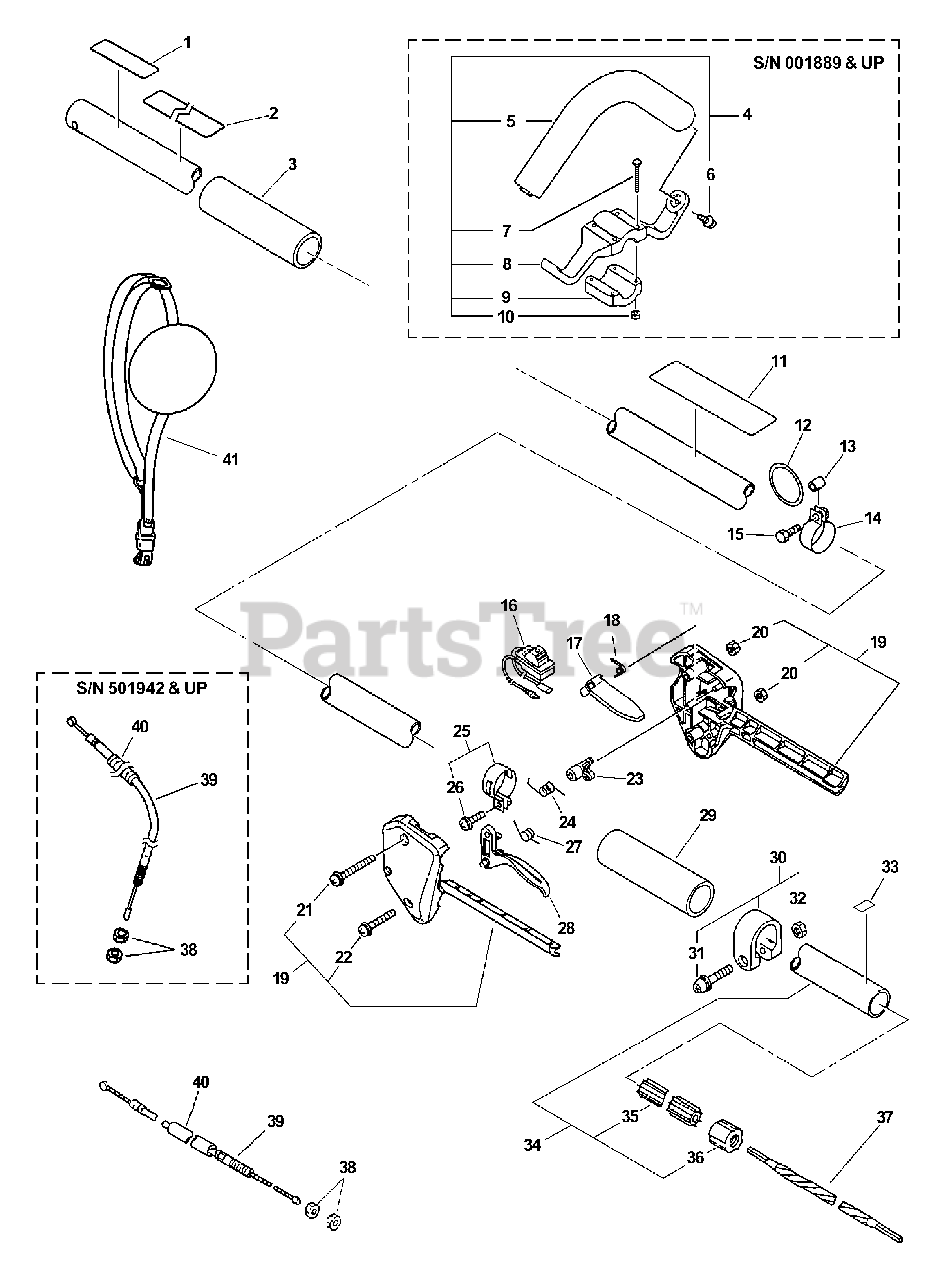

HCA-2400 - Echo Articulating Hedge Trimmer (Original Version) Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

Articulating Hedge Trimmer

Driveshaft, Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo 89022809560

LABEL - CAUTION -- SPANISH

$0.99

$

In Stock, only 2 left!

0

2

Echo 89017854331

LABEL - CAUTION

$1.99

$

Usually ships in 2-4 days

0

3

Echo 35101254330

GRIP, HANDLE

$36.99

$

In Stock, only 3 left!

0

4

Echo 35120107132

LOOP HANDLE ASSY
(Superseded to 35120107133)

Note: Includes ITEMS 5-10

$44.99

$

In Stock, only 1 left!

0

5

Echo 35120507130

HANDLE - FRONT
(Superseded to 35120507131)

$

$

Not available

6

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

7

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

8

Echo 35123207131

BRACKET, HANDLE - UPPER
(Superseded to P021013241)

$18.99

$

In Stock, only 1 left!

0

9

Echo 35122507130

BRACKET, HANDLE - LOWER
(Superseded to C423000300)

$1.99

$

In Stock, only 1 left!

0

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 89016012360

LABEL - CAUTION
(Superseded to X505002530)

$3.49

$

Usually ships in 2-4 days

0

12

Echo 30101652730

RING

$1.49

$

Usually ships in 2-4 days

0

13

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 15

0

14

Echo 30120708930

CLAMP

$4.99

$

In Stock, only 2 left!

0

15

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 10

0

16

Echo 16340412360

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

17

Echo 17809052632

LEVER, TRIGGER LOCKOUT

$2.49

$

In Stock, Qty 20+

0

18

Echo 17801352630

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 10

0

19

Echo 17800312360

THROTTLE BRACKET SET

Note: Includes ITEMS 20-22

$16.99

$

Usually ships in 2-4 days

0

20

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 90024205035

SCREW - 5X35

$0.99

$

In Stock, Qty 20+

0

22

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

23

Echo 17801212360

LOCKOUT, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

24

Echo 17804312360

SPRING, TRIGGER

$2.99

$

Usually ships in 2-4 days

0

25

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes ITEM 26

$9.49

$

In Stock, only 1 left!

0

26

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

27

Echo 17804342230

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

28

Echo 17801052130

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 20+

0

29

Echo 35101254330

GRIP, HANDLE

$36.99

$

In Stock, only 3 left!

0

30

Echo 61027252130

CLAMP KIT

Note: Includes ITEMS 31 - 32

$9.99

$

In Stock, only 1 left!

0

31

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

32

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

33

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

34

Echo 61020612360

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 35 - 36

$

$

Not available

35

Echo 61021712360

LINER - FLEXIBLE
(Superseded to C507000220)

$14.99

$

In Stock, only 1 left!

0

36

Echo 61024644730

BUSHING

$1.49

$

In Stock, Qty 20+

0

37

Echo 61001312360

DRIVESHAFT - FLEXIBLE
(Superseded to C506000360)

$14.99

$

In Stock, only 2 left!

0

38

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

39

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, only 1 left!

0

39

Echo 17800156730

CABLE, THROTTLE

$10.99

$

In Stock, only 2 left!

0

40

Echo 17812750330

TUBE - VINYL

$1.49

$

In Stock, Qty 5

0

41

Echo 30100044530

SHOULDER STRAP ASSY
(Superseded to C062000090)

$

$

Not available
