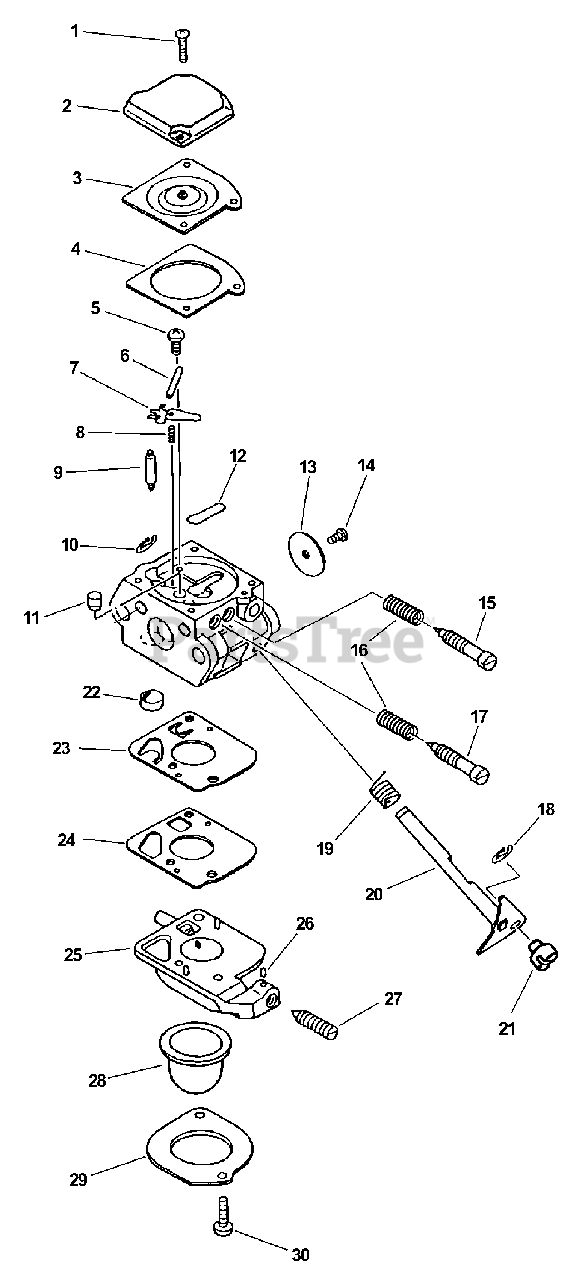

HCA-2400 - Echo Articulating Hedge Trimmer (Original Version) Carburetor S/N: 001001-005909 Parts Diagram

Articulating Hedge Trimmer

Carburetor S/N: 001001-005909 Parts Diagram

  • Title

Echo 12520052131

CARBURETOR C1U-K23A
(Superseded to 12520013313)

Note: Includes ITEMS 1-32

$78.99

$

In Stock, Qty 20+

0

1

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

2

Echo 12534252130

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: Included In ITEM 31 AND 32

$

$

Not available

4

------------------

GASKET, METERING

Note: Included In ITEM 31 AND 32

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

6

------------------

PIN, METERING LEVER

Note: Included In ITEM 32

$

$

Not available

7

------------------

LEVER, METERING

Note: Included In ITEM 32

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: Included In ITEM 32

$

$

Not available

9

------------------

VALVE, INLET NEEDLE

Note: Included In ITEM 32

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

11

Echo 12537651030

NOZZLE, CHECK VALVE

$5.99

$

In Stock, only 1 left!

0

12

------------------

PLUG, WELCH

Note: Included In ITEM 32

$

$

Not available

13

Echo 12531651230

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

14

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12532051230

NEEDLE - HIGH SPEED

$3.99

$

Usually ships in 2-4 days

0

16

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

17

Echo 12531851030

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

18

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

19

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

20

Echo 12531742030

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

21

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

22

------------------

STRAINER

Note: Included In ITEM 32

$

$

Not available

23

------------------

DIAPHRAGM, PURGE

Note: Included In ITEM 31 AND 32

$

$

Not available

24

------------------

GASKET, PURGE

Note: Included In ITEM 31 AND 32

$

$

Not available

25

Echo 12532411610

BASE, PURGE

$21.99

$

In Stock, only 1 left!

0

26

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

27

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

28

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

29

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 6

0

30

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 11

0

31

Echo 12530351030

DIAPHRAGM/GASKET KIT

$18.99

$

In Stock, Qty 7

0

32

Echo 12530051030

REPAIR KIT

$28.99

$

In Stock, only 1 left!

0
