HCA-2400 - Echo Articulating Hedge Trimmer (Original Version) Articulating Gear Case, Tools Parts Diagram

Articulating Hedge Trimmer

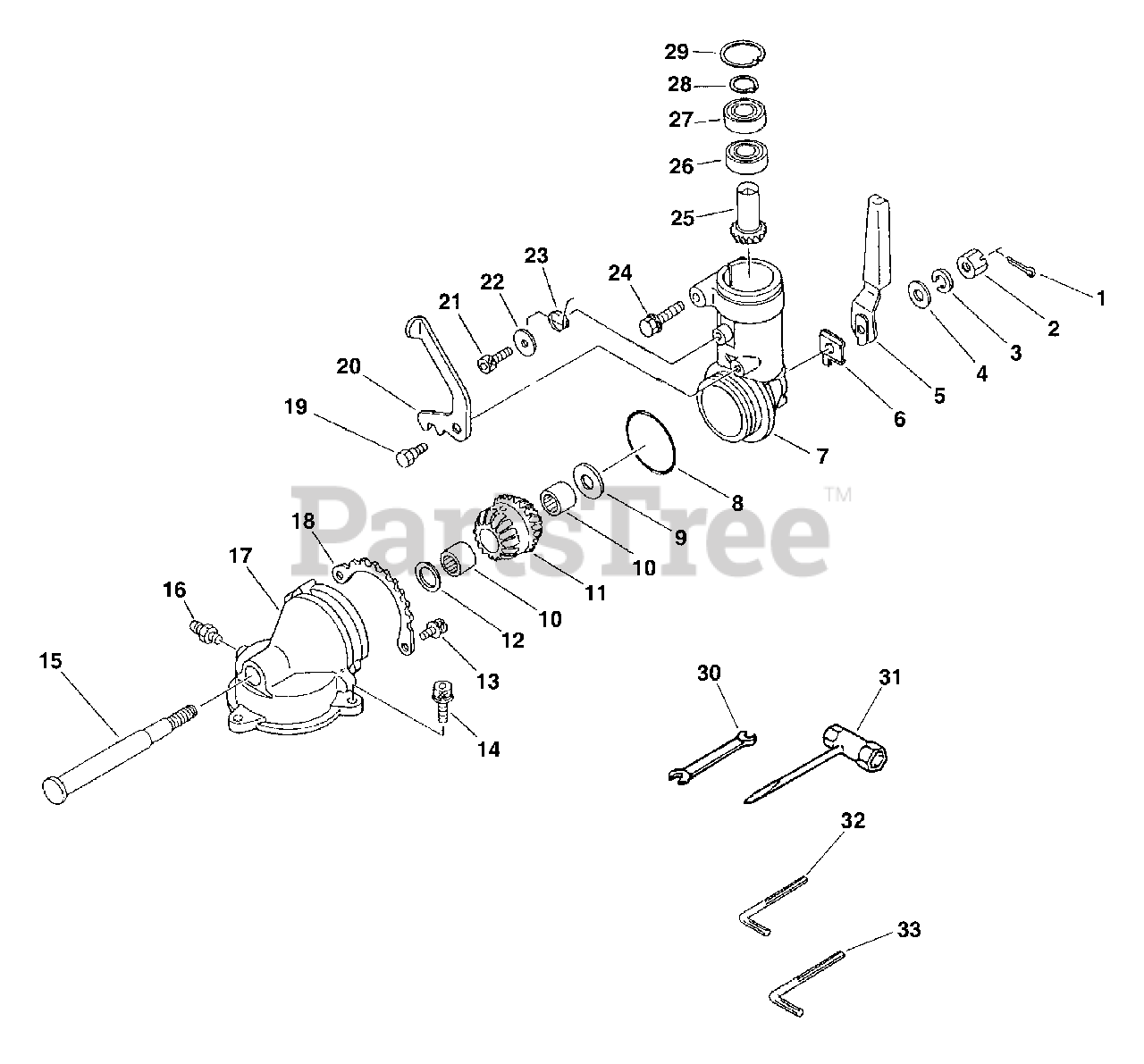

Articulating Gear Case, Tools Parts Diagram

  • Title
1

Echo 90030016016

PIN, SPLIT - 1.6X16

$0.99

$

In Stock, Qty 5

0

2

Echo 90052900006

NUT - 6 -- SLOTTED

$2.49

$

In Stock, only 2 left!

0

3

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

4

Echo 40372007350

WASHER, THRUST

$1.99

$

In Stock, only 4 left!

0

5

Echo 19051112360

PIECE, LEVER
(Superseded to 19051112361)

$31.99

$

In Stock, only 1 left!

0

6

Echo 61047812360

PLATE, ANGLE
(Superseded to 61047812361)

$3.49

$

Usually ships in 2-4 days

0

7

Echo 61041012361

CASE, GEAR

$127.99

$

Usually ships in 2-4 days

0

8

Echo 90072400032

O-RING - 32

$15.99

$

In Stock, only 1 left!

0

9

$2.49

$

Usually ships in 2-4 days

0

10

Echo 10011311520

BEARING, NEEDLE - 8

$11.99

$

In Stock, only 1 left!

0

11

Echo 61036112360

GEAR - BEVEL

$95.99

$

In Stock, only 1 left!

0

12

Echo 61031712360

WASHER
(Superseded to 61031712460)

$2.99

$

Usually ships in 2-4 days

0

13

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 15

0

14

Echo 90016205018

SCREW - 5X18

$0.99

$

In Stock, Qty 9

0

15

Echo 61031012360

GEAR - SHAFT

$45.99

$

Usually ships in 2-4 days

0

16

Echo 88011010860

FITTING, GREASE

$5.49

$

Usually ships in 2-4 days

0

17

Echo 61043112360

LID, GEAR CASE

$137.99

$

Usually ships in 2-4 days

0

18

Echo 61047012360

RESETTER, LATCH
(Superseded to P021000850)

$25.99

$

Usually ships in 2-4 days

0

19

Echo 61047412360

BOLT - 5

$3.49

$

Usually ships in 2-4 days

0

20

Echo 61047212360

PAWL
(Superseded to P021000850)

$25.99

$

Usually ships in 2-4 days

0

21

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

22

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

23

$6.49

$

Usually ships in 2-4 days

0

24

Echo 90014205035

BOLT - 5X35

$0.99

$

Usually ships in 2-4 days

0

25

Echo 61031112360

GEAR - DRIVE

$62.99

$

Usually ships in 2-4 days

0

26

Echo 90085506900

BEARING, BALL - 6900

$18.99

$

In Stock, Qty 5

0

27

Echo 90085806900

BEARING, BALL - 6900Z

$22.99

$

In Stock, Qty 6

0

28

Echo 90070600010

RING, RETAINING - 10

$1.49

$

In Stock, Qty 20+

0

29

Echo 90070200022

RING, RETAINING - 22

$1.99

$

In Stock, Qty 5

0

30

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

31

Echo X602000020

T-WRENCH - 17X19mm

$3.49

$

In Stock, Qty 20+

0

32

Echo 89561203430

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

33

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable
