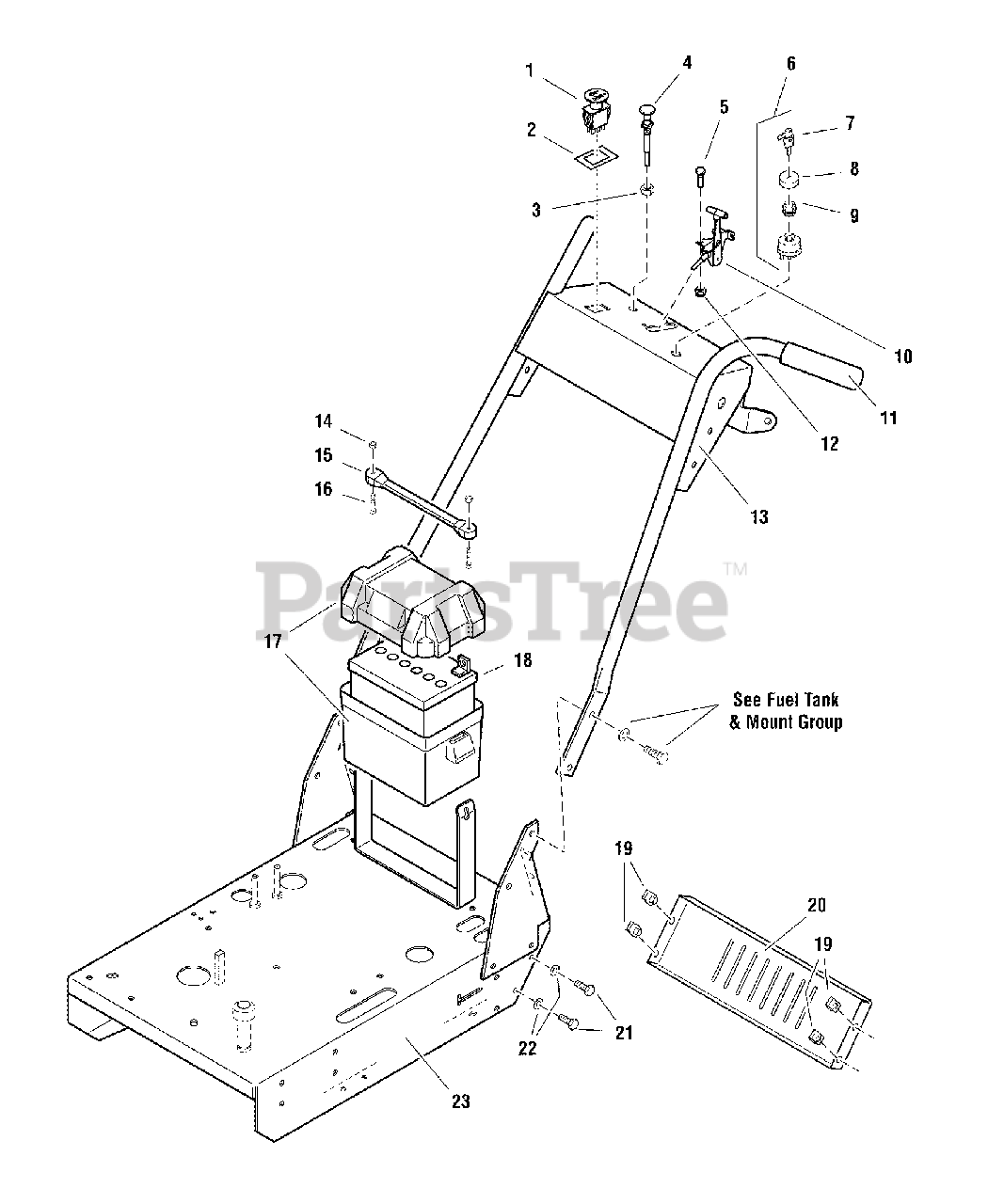

HC 32RDKAV13ECE (5900846) - Snapper 32" Walk-Behind Mower, 13hp Engine Frame & Handle Bars Group - Electric Start Parts Diagram

32" Walk-Behind Mower, 13hp

Engine Frame & Handle Bars Group - Electric Start Parts Diagram

  • Title

1

Snapper 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

2

Snapper 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

3

Snapper 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 5046501

CABLE, CHOKE CONTROL, 47"
(Superseded to 5046501SM)

Note: (Includes Ref. No. 3)

$55.99

$

In Stock, only 1 left!

0

5

Snapper 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

Note: (2 for battery terminals - not shown)

$3.99

$

In Stock, Qty 20+

0

6

Snapper 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

Note: (Includes Ref No. 7 - 9)

$33.99

$

In Stock, Qty 7

0

7

Snapper 5022789

KEY, IGNITION MOLDED SET
(Superseded to 1717163SM)

$8.99

$

In Stock, Qty 20+

0

8

Snapper 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

9

Snapper 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

10

Snapper 5047629

CABLE, THROTTLE CONTROL, 48"
(Superseded to 5047629SM)

$62.99

$

Usually ships in 2-12 days

0

11

Snapper 5021841SM

GRIP, FOAM, .940 X 5 X .187
(Superseded to 84003988)

$8.49

$

In Stock, only 4 left!

0

12

Snapper 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

13

Snapper 5061279D

WELD, HANDLE BAR, TD
(Superseded to 5061279DYP)

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$284.99

$

Usually ships in 2-12 days

0

13

Snapper 5061279B

WELD, HANDLE BAR, TD

Note: (S/N: 2000856282 & Above) (Ferris Red)

$296.99

$

Usually ships in 2-12 days

0

14

Snapper 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$13.99

$

In Stock, only 1 left!

0

16

Snapper 5025270

SCREW, #10-24 X 1" RS
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 5046188

BATTERY BOX W/ DRAIN
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

18

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

19

Snapper 5022308

BODY CLIP, 5/16-18 X 1/2" DEEP
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

20

Snapper 5047735D

SHIELD, REAR
(Superseded to 5047735DYP)

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$34.99

$

Usually ships in 2-12 days

0

20

Snapper 5047735B

SHIELD, REAR

Note: (S/N: 2000856282 & Above) (Ferris Red)

$21.99

$

Usually ships in 2-12 days

0

21

Snapper 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

22

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Snapper 5049229D

WELD, ENGINE DECK, HC36
(Superseded to 5049229DYP)

Note: (S/N: 2000856281 & Below) (Snapper Pro Red)

$626.99

$

Usually ships in 2-12 days

0

23

Snapper 5049229B

WELD, ENGINE DECK, HC36

Note: (S/N: 2000856282 & Above) (Ferris Red)

$883.99

$

Usually ships in 2-12 days

0

24

Snapper 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

Note: (for battery terminals - not shown)

$4.49

$

Usually ships in 2-12 days

0
