HC-2810 - Echo Hedge Trimmer (SN: U28915001001 - U28915999999) Cutter Parts Diagram

Hedge Trimmer

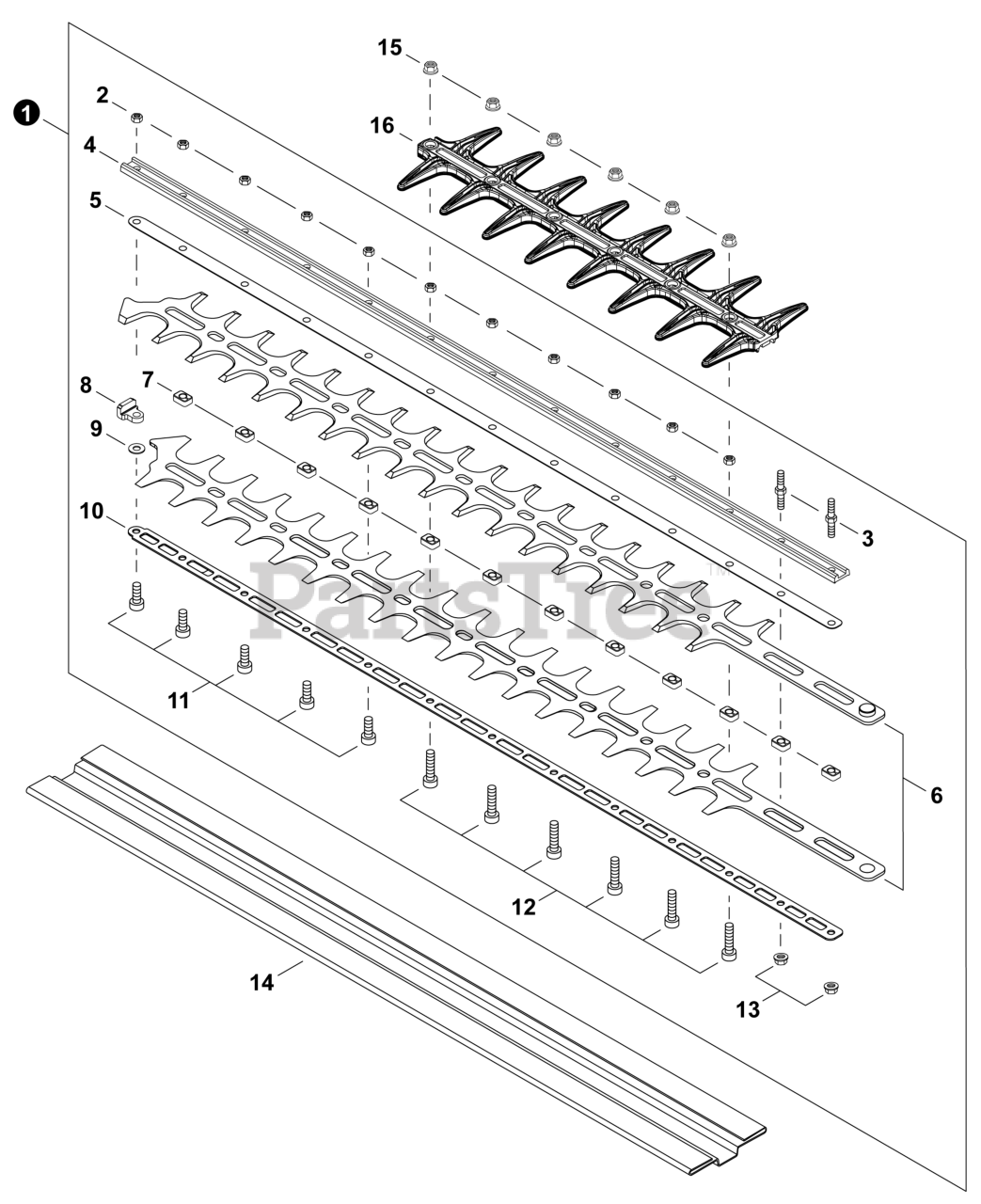

Cutter Parts Diagram

  • Title

1

Echo X041000470

CUTTER ASSY, 30"
(Superseded to X041000780)

Note: Includes Items 2-13

$210.99

$

In Stock, only 1 left!

0

2

Echo 9202205000

NUT

$0.99

$

Usually ships in 2-4 days

0

3

Echo V223000020

STUD, MOUNTING M5×36

$1.99

$

Usually ships in 2-4 days

0

4

Echo X425000540

SUPPORT, BLADE 28"

$57.99

$

Usually ships in 2-4 days

0

5

Echo X425000550

SUPPORT, BLADE 28"

$19.99

$

Usually ships in 2-4 days

0

6

Echo X412000800

CUTTER 30"
(Superseded to X412000940)

$80.99

$

In Stock, only 4 left!

0

7

Echo V376001390

SPACER

$3.49

$

In Stock, only 4 left!

0

8

Echo V376001380

SPACER

$10.99

$

In Stock, only 1 left!

0

9

Echo 9221705000

WASHER

$0.99

$

In Stock, Qty 9

0

10

Echo X425000880

SUPPORT, BLADE 30"

$26.99

$

Usually ships in 2-4 days

0

11

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

12

Echo V805000170

BOLT, TORX 5×25

$0.99

$

Usually ships in 2-4 days

0

13

Echo V263000250

NUT, FLANGE M5

$1.99

$

In Stock, Qty 12

0

14

Echo X495000910

SCABBARD

$8.99

$

Usually ships in 2-4 days

0

15

Echo V263000250

NUT, FLANGE M5

$1.99

$

In Stock, Qty 12

0

16

Echo X431000100

GUARD, CUTTER BLADE

$11.99

$

In Stock, only 3 left!

0
