HC-245 - Echo Hedge Trimmer (SN: T46314001001 - T46314999999) Gear Case Parts Diagram

Hedge Trimmer

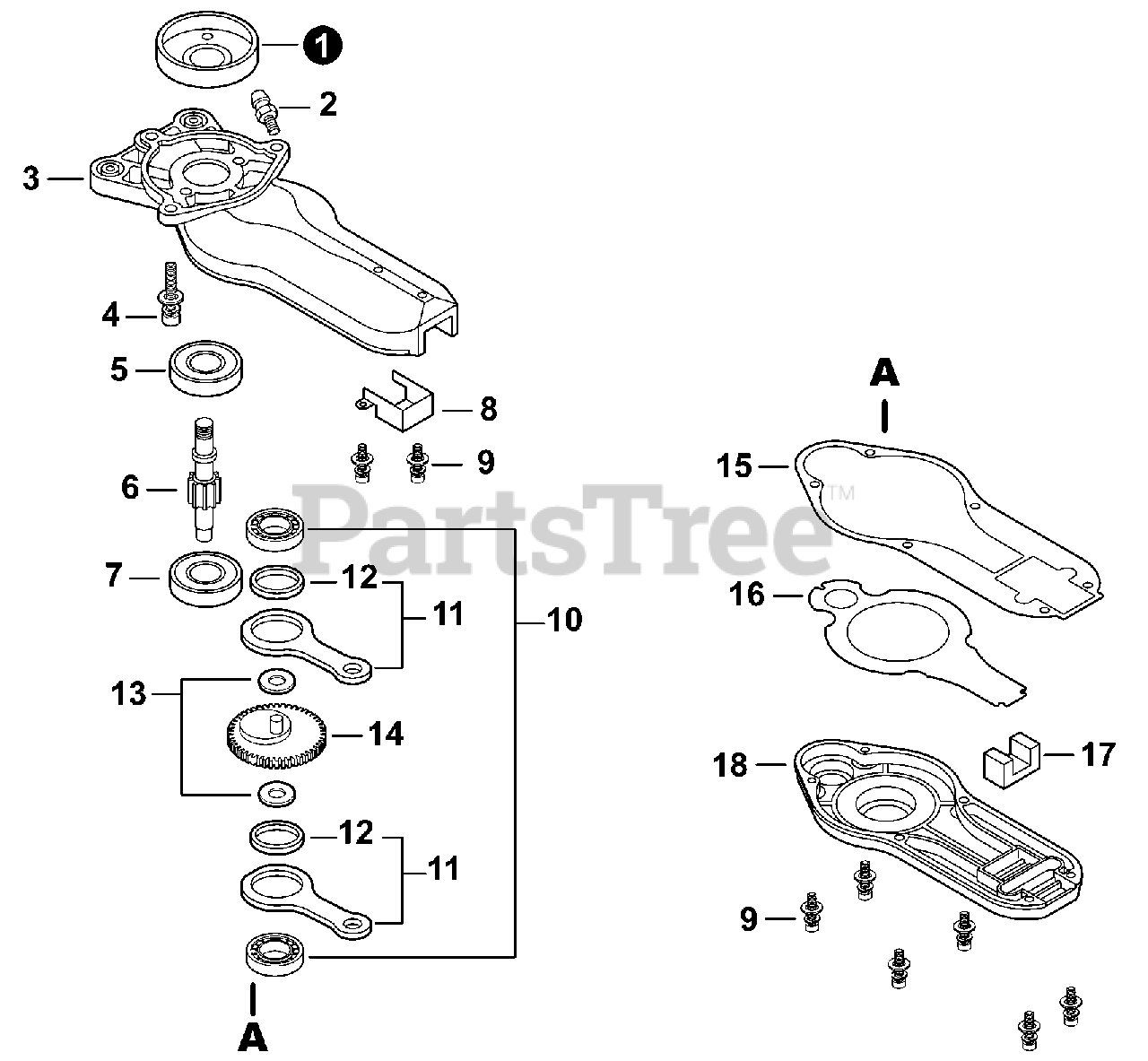

Gear Case Parts Diagram

  • Title

1

Echo A556000500

DRUM, CLUTCH

$38.99

$

Usually ships in 2-4 days

0

2

Echo 88011010860

FITTING, GREASE

$5.49

$

Usually ships in 2-4 days

0

3

Echo C531000270

CASE, GEAR - UPPER

$72.99

$

Usually ships in 2-4 days

0

4

Echo 90016206018

BOLT 6×18

$1.49

$

Usually ships in 2-4 days

0

5

Echo 90081206200

BEARING, BALL 6200

$12.99

$

Usually ships in 2-4 days

0

6

Echo V650000160

GEAR, SPUR

$39.99

$

Usually ships in 2-4 days

0

7

Echo 90080400608

BEARING, BALL 608ZZ

$12.99

$

In Stock, only 1 left!

0

8

Echo C538000090

GUIDE, BLADE

$9.49

$

Usually ships in 2-4 days

0

9

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

10

Echo 90081006200

BEARING, BALL 6200

$10.99

$

Usually ships in 2-4 days

0

11

Echo P021008400

ROD, CONNECTING

Note: Includes ITEM 12

$65.99

$

In Stock, only 1 left!

0

12

Echo 61032701261

BEARING, NEEDLE 30

$19.99

$

In Stock, Qty 12

0

13

Echo V307000050

WASHER, THRUST 10

$4.99

$

In Stock, only 3 left!

0

14

Echo V060000050

GEAR, SPUR

$89.99

$

Usually ships in 2-4 days

0

15

Echo V110000030

GASKET, GEAR CASE

$7.99

$

In Stock, Qty 10

0

16

Echo C542000020

PLATE, GEAR CASE

$11.99

$

Usually ships in 2-4 days

0

17

Echo V541000100

SEAL

$3.49

$

Usually ships in 2-4 days

0

18

Echo C531000280

COVER, GEAR CASE

$44.99

$

In Stock, only 2 left!

0
