HC-245 - Echo Hedge Trimmer (SN: T46314001001 - T46314999999) Cutter Parts Diagram

Hedge Trimmer

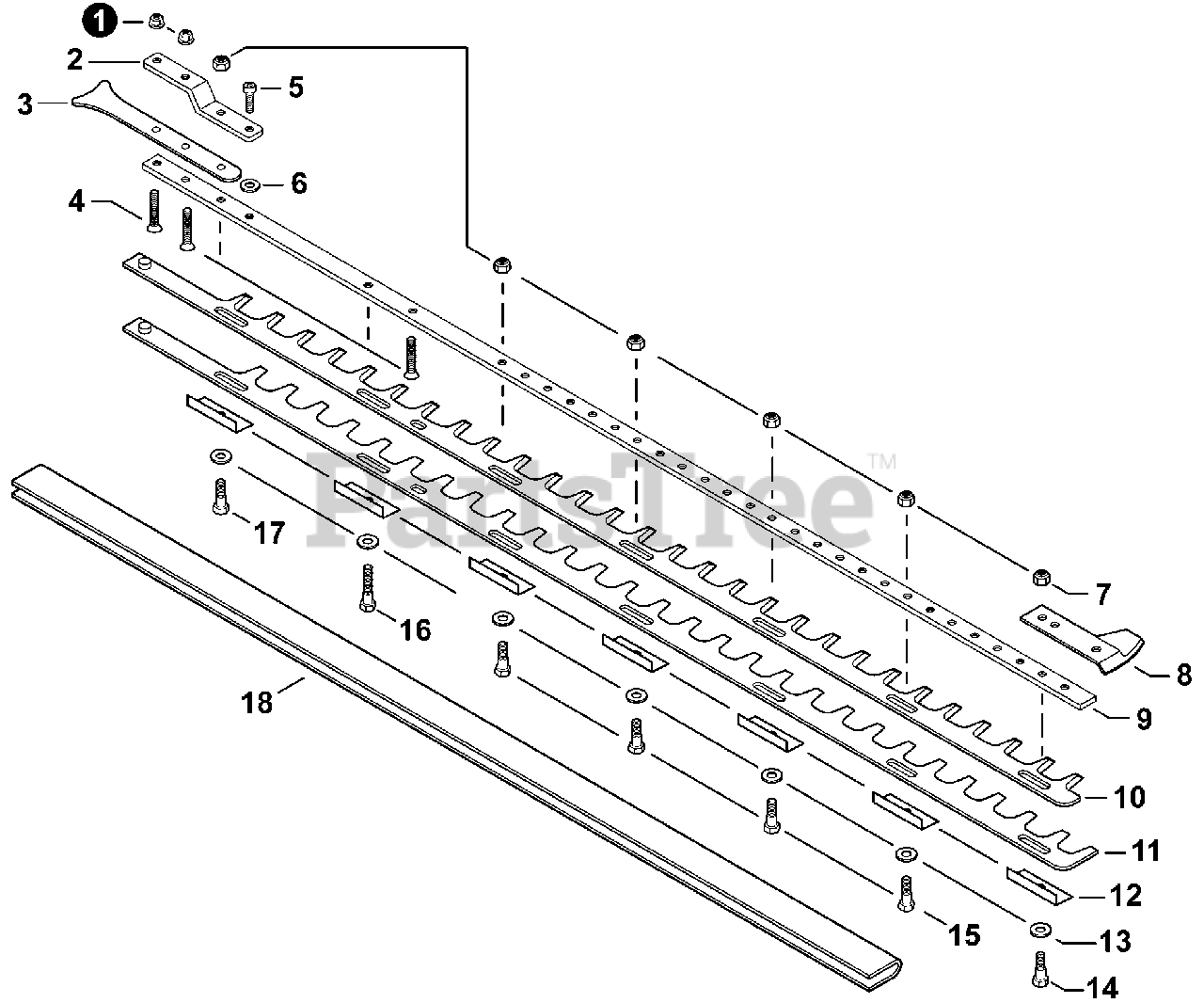

Cutter Parts Diagram

  • Title

1

Echo 90051800006

NUT, FLANGE M6

$1.49

$

In Stock, Qty 14

0

2

Echo 69921308960

BRACKET, BLADE

$5.99

$

Usually ships in 2-4 days

0

3

Echo V150001240

PLATE, EYE

$9.99

$

Usually ships in 2-4 days

0

4

Echo 9110306030

BOLT 6×30

$1.99

$

Usually ships in 2-4 days

0

5

Echo 90010306012

BOLT 6x12

$0.99

$

In Stock, only 2 left!

0

6

Echo 90063000006

WASHER

$0.99

$

In Stock, Qty 10

0

7

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

8

Echo E278000231

GUARD, TIP

$5.99

$

Usually ships in 2-4 days

0

9

Echo X425000280

SUPPORT, BLADE 40"

$81.99

$

Usually ships in 2-4 days

0

10

Echo X411000460

BLADE, UPPER 40"

$67.99

$

Usually ships in 2-4 days

0

11

Echo X411000450

BLADE, LOWER 40"

$67.99

$

Usually ships in 2-4 days

0

12

Echo 69921302063

GUIDE, BLADE

$4.99

$

In Stock, Qty 6

0

13

Echo 69911801261

WASHER

$0.99

$

In Stock, Qty 9

0

14

Echo V204001450

BOLT 6×24

$4.49

$

Usually ships in 2-4 days

0

15

Echo 69911502062

BOLT 6×22

$4.99

$

In Stock, only 1 left!

0

16

Echo 35102702060

BOLT 6×40

$6.49

$

Usually ships in 2-4 days

0

17

Echo 69911505360

BOLT 6×35

$2.49

$

Usually ships in 2-4 days

0

18

Echo 89852308960

SCABBARD

$24.99

$

Usually ships in 2-4 days

0
