HC-2420 - Echo Hedge Trimmer (SN: T84513001001 - T84513999999) Starter Parts Diagram

Hedge Trimmer

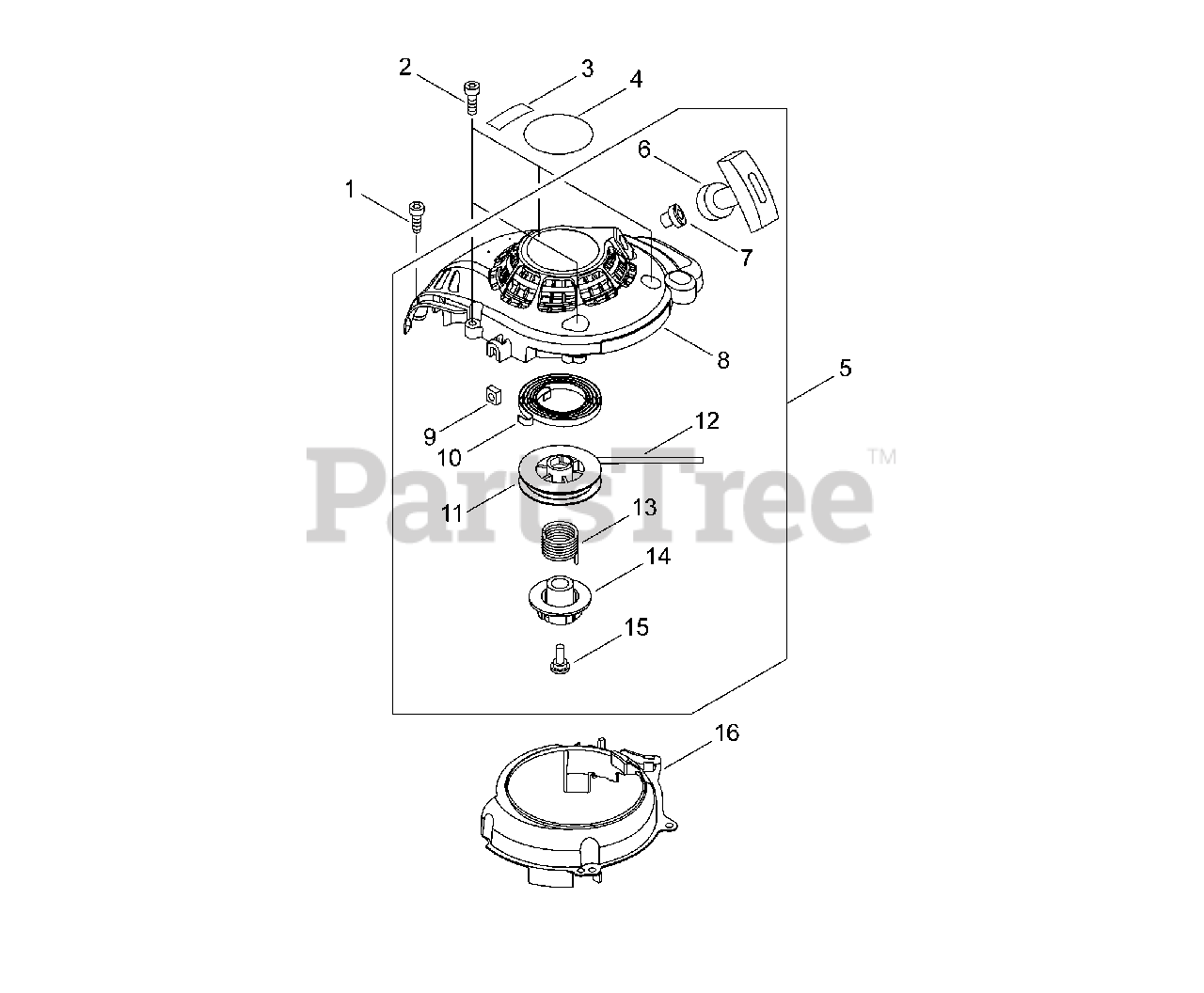

Starter Parts Diagram

  • Title

1

Echo V804000010

BOLT, TORX 4

$0.99

$

In Stock, Qty 7

0

2

Echo V804000060

BOLT, TORX 4

$0.99

$

In Stock, Qty 20+

0

3

Echo X543004580

LABEL, MODEL

$

$

Currently unavailable

4

Echo X502000330

LABEL,ECHO

$0.99

$

In Stock, Qty 20+

0

5

Echo A051002791

STARTER ASY

Note: Includes Items 6-15

$38.99

$

In Stock, only 3 left!

0

6

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

7

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

8

Echo P022036941

CASE, STARTER

$38.99

$

Usually ships in 2-4 days

0

9

Echo 90056500005

NUT
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

10

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 13

0

11

Echo P022027980

DRUM, STARTER

$6.49

$

In Stock, only 3 left!

0

12

Echo P022008260

ROPE

$

$

Not available

13

Echo P022008270

SPRING,DAMPER

$8.99

$

In Stock, Qty 20+

0

14

Echo P022037310

PLATE, CAM

$7.99

$

Usually ships in 2-4 days

0

15

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

16

Echo A172002610

COVER,FAN

$9.49

$

Usually ships in 2-4 days

0
