HC-2420 - Echo Hedge Trimmer (SN: T84513001001 - T84513999999) Fuel System Parts Diagram

Hedge Trimmer

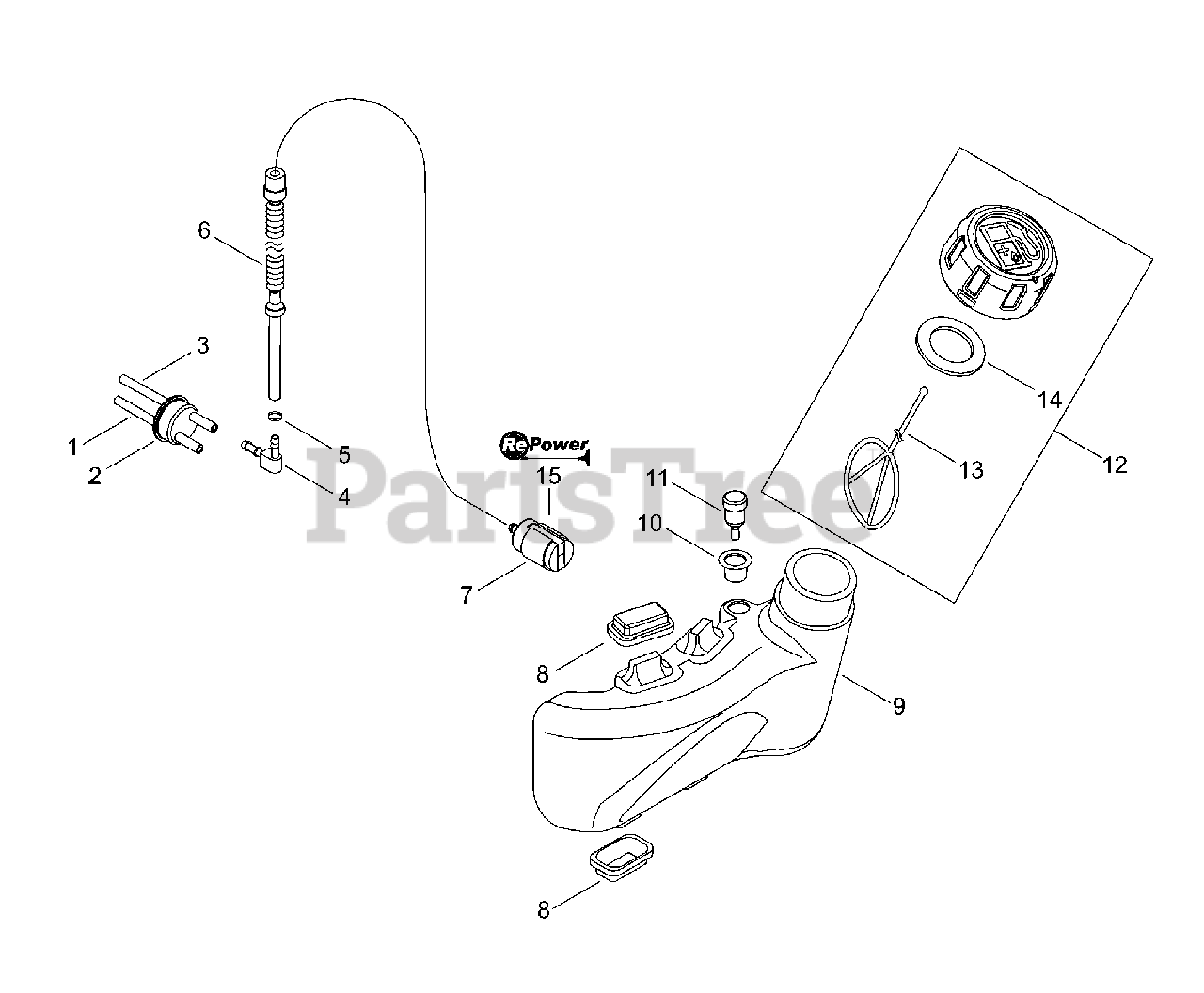

Fuel System Parts Diagram

  • Title

1

Echo 13201049730

PIPE 3×6×85

$2.49

$

In Stock, Qty 7

0

2

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

3

Echo V471004060

PIPE
(Superseded to V471005650)

$3.49

$

In Stock, Qty 20+

0

4

Echo V186000500

JOINT,PIPE

$0.99

$

In Stock, Qty 20+

0

5

Echo V490001230

CLIP

$0.99

$

In Stock, Qty 20+

0

6

Echo V471003510

PIPE
(Superseded to V471003511)

$4.49

$

In Stock, Qty 5

0

7

Echo A369000480

STRAINER, FUEL

$5.49

$

In Stock, Qty 20+

0

8

Echo V420004490

CUSHION

$0.99

$

In Stock, Qty 11

0

9

Echo A350001952

TANK, FUEL
(Superseded to A350001953)

$40.99

$

Usually ships in 2-4 days

0

10

Echo V137000000

GROMMET,FUEL
(Superseded to V137000001)

$1.49

$

Usually ships in 2-4 days

0

11

Echo A356000031

VALVE,CHECK

$7.99

$

In Stock, Qty 20+

0

12

Echo P021049140

FUEL CAP ASY

Note: Includes Items 13-14

$14.99

$

Usually ships in 2-4 days

0

13

Echo A365000060

CONNECTOR,CAP

$1.49

$

In Stock, Qty 10

0

14

Echo V107000150

GASKET,FUEL CAP

$4.49

$

In Stock, Qty 20+

0

15

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$20.99

$

In Stock, Qty 19

0

15

Echo 90162BP

TUNE-UP KIT - REPOWER
(Superseded to Discontinued)

$

$

Not available
