HC-2410 - Echo Hedge Trimmer (Type 2E) Ignition, Starter Assembly, Clutch Parts Diagram

Hedge Trimmer (Type 2E)

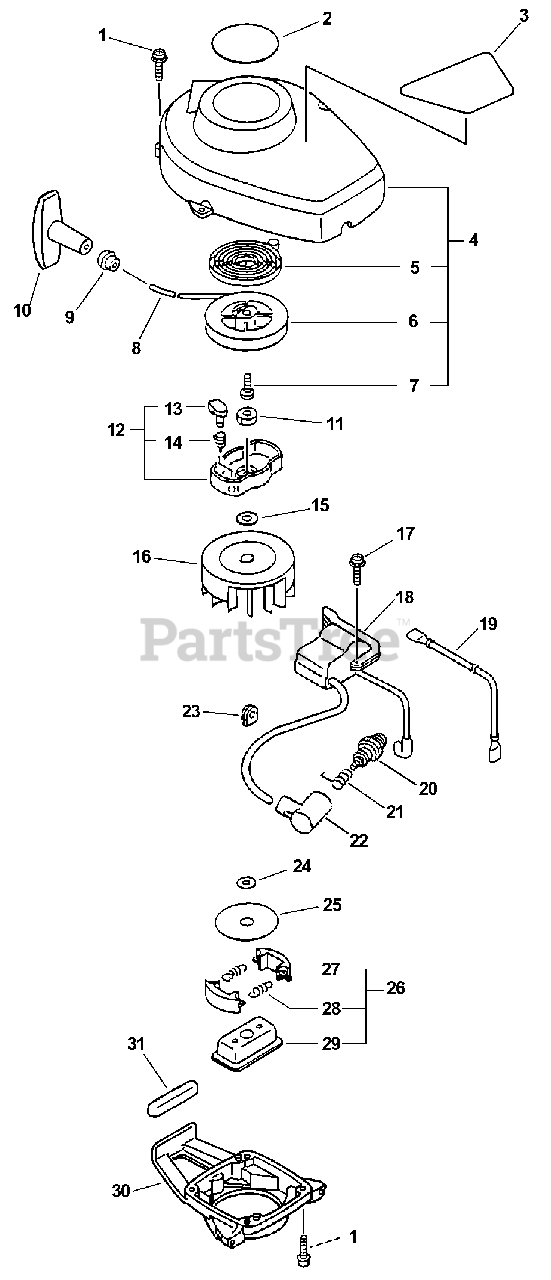

Ignition, Starter Assembly, Clutch Parts Diagram

  • Title

1

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

2

Echo 89011208961

LABEL - MODEL HC-2400

Note: HC-2400

$3.49

$

Usually ships in 2-4 days

0

2

Echo 89011508961

LABEL - MODEL HC-2410
(Superseded to Discontinued)

Note: HC-2410

$

$

Not available

3

Echo 89016007761

LABEL - CAUTION

Note: S/N 001001 - 510943

$2.49

$

Usually ships in 2-4 days

0

3

Echo X505000280

LABEL - CAUTION

Note: S/N 510944 & UP

$2.49

$

Usually ships in 2-4 days

0

4

Echo 17720005962

STARTER ASSY

Note: INCLUDES ITEMS 5 - 10

$79.99

$

Usually ships in 2-4 days

0

5

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

6

Echo 17721505960

REEL, ROPE

$13.99

$

In Stock, only 1 left!

0

7

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

8

Echo 17722605960

ROPE, STARTER - 3.5X1000

Note: RePower BULK OPTION: 99944445000

$6.49

$

Usually ships in 2-4 days

0

9

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

10

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

11

Echo 90051200008

NUT - LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

12

Echo 17720207360

STARTER PAWL ASSY
(Superseded to 17720207361)

Note: Includes ITEMS 13-14

$13.99

$

In Stock, only 1 left!

0

13

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

14

Echo 17723405960

SPRING, RETURN
(Superseded to P022007980)

$3.99

$

In Stock, Qty 6

0

15

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

16

Echo 15680144731

FLYWHEEL

Note: HC-2400 S/N 001001 - 501516, HC-2410 S/N 001001 - 501500

$105.99

$

Usually ships in 2-4 days

0

16

Echo A409000000

FLYWHEEL
(Superseded to A409000100)

Note: HC-2400 S/N 501517 & UP, HC-2410 S/N 501501 & UP

$63.99

$

Usually ships in 2-4 days

0

17

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

18

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 1 left!

0

19

Echo 16202152130

LEAD - GROUND
(Superseded to 16201052830)

$3.99

$

In Stock, Qty 7

0

20

Echo 99944500071

SPARK PLUG -- BPM-7Y

$3.49

$

In Stock, Qty 11

0

20

Echo 15901710230

SPARK PLUG -- RCJ-7Y

$4.99

$

In Stock, Qty 20+

0

21

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 13

0

22

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

23

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 6

0

24

Echo 17501405360

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

25

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

26

Echo 17500002962

CLUTCH ASSY

Note: INCLUDES ITEMS 27 - 29

$62.99

$

Usually ships in 2-4 days

0

27

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

28

Echo 17501805960

SPRING, CLUTCH

$1.99

$

In Stock, Qty 5

0

29

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

30

Echo 61022305960

CASE, CLUTCH

$58.99

$

Usually ships in 2-4 days

0

31

Echo 13192028230

CUSHION, FUEL TANK

$1.49

$

In Stock, only 1 left!

0
