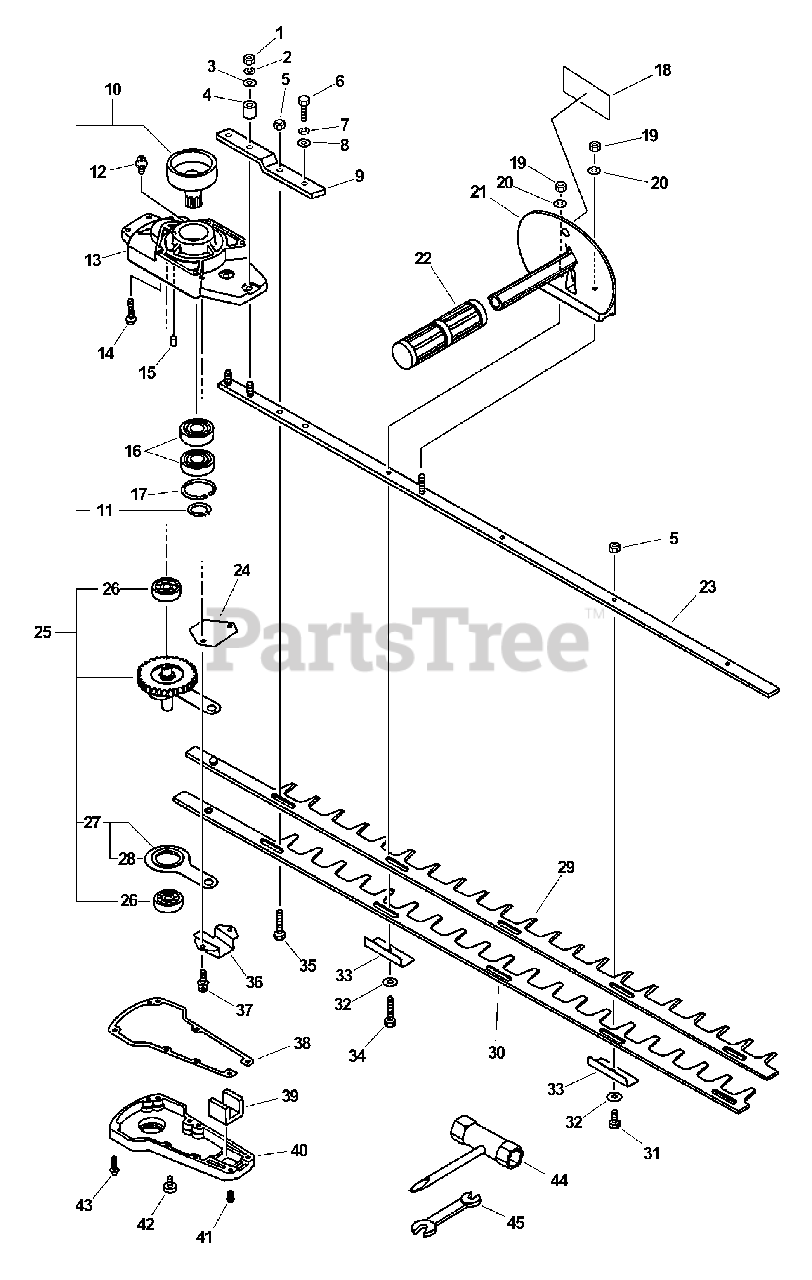

HC-2410 - Echo Hedge Trimmer (Type 1) Gear Case, Blades, Tools Parts Diagram

Hedge Trimmer (Type 1)

Gear Case, Blades, Tools Parts Diagram

  • Title

1

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

3

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

4

Echo 69911108960

SPACER

Note: HC-2410 ONLY

$8.49

$

Usually ships in 2-4 days

0

5

Echo 43302206460

LOCKNUT - 6

Note: HC-2400 (QTY 4)

$1.49

$

In Stock, Qty 20+

0

6

Echo 90010006010

BOLT - 6X10

Note: HC-2410 ONLY

$0.99

$

In Stock, Qty 10

0

7

Echo 90060500006

LOCKWASHER - 6

Note: HC-2410 ONLY

$0.99

$

In Stock, only 2 left!

0

8

Echo 90060000006

WASHER - 6

Note: HC-2410 ONLY

$0.99

$

In Stock, Qty 16

0

9

Echo 69921308960

BRACKET, ANGLE

Note: HC-2410 ONLY

$5.99

$

Usually ships in 2-4 days

0

10

Echo 17500301261

DRUM, CLUTCH

Note: Includes ITEM 11

$82.99

$

Usually ships in 2-4 days

0

11

Echo 90070100016

RING, RETAINING - 16

$1.49

$

Usually ships in 2-4 days

0

12

Echo 88011010860

FITTING, GREASE

Note: S/N 001740 & UP

$5.49

$

Usually ships in 2-4 days

0

13

Echo 61041005960

CASE, GEAR

Note: S/N 001001 - 001739

$71.99

$

Usually ships in 2-4 days

0

13

Echo 61040608560

CASE, GEAR

Note: S/N 001740 & UP

$69.99

$

Usually ships in 2-4 days

0

14

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

15

Echo V622000020

PIN - LOCATING

Note: S/N 001001 - 001739

$0.99

$

In Stock, Qty 7

0

16

Echo 90080206003

BEARING, BALL - 6003

$17.99

$

Usually ships in 2-4 days

0

17

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

18

Echo 89017740630

LABEL - CAUTION

$5.49

$

Usually ships in 2-4 days

0

19

Echo 90056000006

LOCKNUT

$1.49

$

In Stock, Qty 20+

0

20

Echo 90060300006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo 35120002060

HANDLE ASSY - FRONT

Note: Includes ITEM 22

$54.99

$

Usually ships in 2-4 days

0

22

Echo 35101201260

GRIP, HANDLE

$8.99

$

Usually ships in 2-4 days

0

23

Echo 69910502061

SUPPORT, BLADE
(Superseded to X425000100)

Note: HC-2400

$38.99

$

Usually ships in 2-4 days

0

23

Echo 69910508960

SUPPORT, BLADE
(Superseded to X425000050)

Note: HC-2410

$70.99

$

Usually ships in 2-4 days

0

24

Echo 61044001260

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

25

Echo 61030201260

GEAR ASSY
(Superseded to 61030201261)

Note: INCLUDES ITEMS 26-28

$

$

Not available

26

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

27

Echo 61030701260

CONNECTING ROD ASSY
(Superseded to 61030701261)

Note: Includes ITEM 28

$

$

Not available

28

Echo 61032701260

BEARING, NEEDLE
(Superseded to 61032701261)

$19.99

$

In Stock, Qty 12

0

29

Echo 69701002960

BLADE - UPPER
(Superseded to X411000180)

Note: HC-2400

$59.99

$

Usually ships in 2-4 days

0

29

Echo 69701008960

BLADE - UPPER

Note: HC-2410

$81.99

$

Usually ships in 2-4 days

0

30

Echo 69701102960

BLADE - LOWER
(Superseded to X411000190)

Note: HC-2400

$61.99

$

In Stock, only 1 left!

0

30

Echo 69701108960

BLADE - LOWER

Note: HC-2410

$83.99

$

Usually ships in 2-4 days

0

31

Echo 69911502062

BOLT

Note: HC-2400 (QTY 4)

$4.99

$

In Stock, Qty 6

0

32

Echo 69911801261

WASHER

Note: HC-2400 (QTY 5)

$0.99

$

In Stock, Qty 12

0

33

Echo 69921302062

INSULATOR
(Superseded to 69921302063)

Note: HC-2400 (QTY 5)

$4.99

$

In Stock, only 2 left!

0

34

Echo 35102702060

BOLT

$6.49

$

In Stock, only 3 left!

0

35

Echo 69911508960

BOLT - 6

Note: HC-2410 ONLY

$1.99

$

In Stock, Qty 12

0

36

Echo 61044102060

GUIDE
(Superseded to Discontinued)

$

$

Not available

37

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

38

Echo 61041401260

GASKET, GEAR CASE

Note: INCLUDED IN KIT 88900008460

$1.49

$

In Stock, Qty 12

0

39

Echo 61042601260

SEAL, FELT

$2.99

$

In Stock, only 1 left!

0

40

Echo 61041105960

LID, GEAR CASE
(Superseded to 61041105961)

Note: S/N 001001 - 001739

$43.99

$

Usually ships in 2-4 days

0

40

Echo 61043108960

LID, GEAR CASE
(Superseded to 61043108961)

Note: S/N 001740 & UP

$20.99

$

Usually ships in 2-4 days

0

41

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

42

Echo 90010008008

BOLT - 8X8

Note: S/N 001001 - 001739

$0.99

$

In Stock, Qty 11

0

43

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

44

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0

45

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

Echo 88900008460

GASKET KIT

$18.99

$

Usually ships in 2-4 days

0
