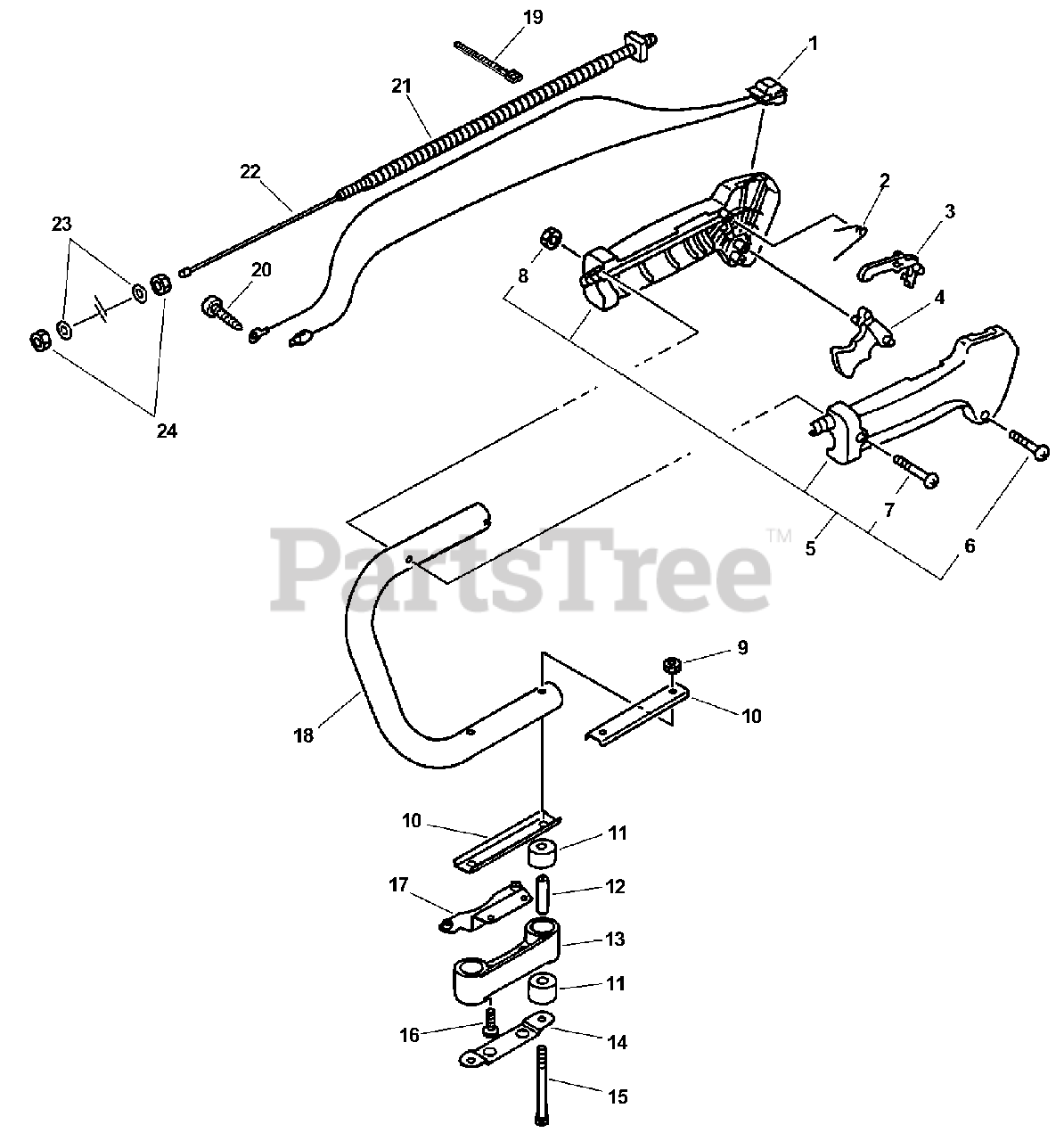

HC-2400 - Echo Hedge Trimmer (Type 2E) Handles, Ignition Switch, Throttle Parts Diagram

Hedge Trimmer (Type 2E)

Handles, Ignition Switch, Throttle Parts Diagram

  • Title

1

Echo 16340005960

IGNITION SWITCH ASSY
(Superseded to A440000320)

$9.49

$

Usually ships in 2-4 days

0

2

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 10

0

3

Echo 17801205960

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 1 left!

0

4

Echo 17801005960

TRIGGER, THROTTLE

$5.49

$

In Stock, Qty 5

0

5

Echo 35110247530

THROTTLE CONTROL ASSY

Note: Includes ITEMS 6-8

$34.99

$

In Stock, only 1 left!

0

6

Echo 90024603025

SCREW - 3X25

$0.99

$

Usually ships in 2-4 days

0

7

Echo 90022005030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

8

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

10

Echo 35124301260

BRACKET, HANDLE - LOWER

$2.99

$

Usually ships in 2-4 days

0

11

Echo 35122801260

CUSHION

$4.49

$

Usually ships in 2-4 days

0

12

Echo 35124101260

SPACER
(Superseded to 35124101261)

$2.99

$

In Stock, Qty 18

0

13

Echo 35121705960

BRACKET, HANDLE

$8.99

$

Usually ships in 2-4 days

0

14

Echo 35124201261

PLATE, CUSHION

$2.99

$

Usually ships in 2-4 days

0

15

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 17

0

16

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

17

Echo 61043801260

BRACKET

$4.99

$

Usually ships in 2-4 days

0

18

Echo 35120508961

HANDLE - REAR

$43.99

$

Usually ships in 2-4 days

0

19

Echo 17812110050

TIE, CABLE

$0.99

$

In Stock, Qty 8

0

20

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

21

Echo 17812705960

TUBE

$2.49

$

Usually ships in 2-4 days

0

22

Echo 17800105960

CABLE, THROTTLE

$19.99

$

Usually ships in 2-4 days

0

23

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

24

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 2 left!

0
