HC-2400 - Echo Hedge Trimmer (Type 1E) Intake, Exhaust, Fuel System Parts Diagram

Hedge Trimmer (Type 1E)

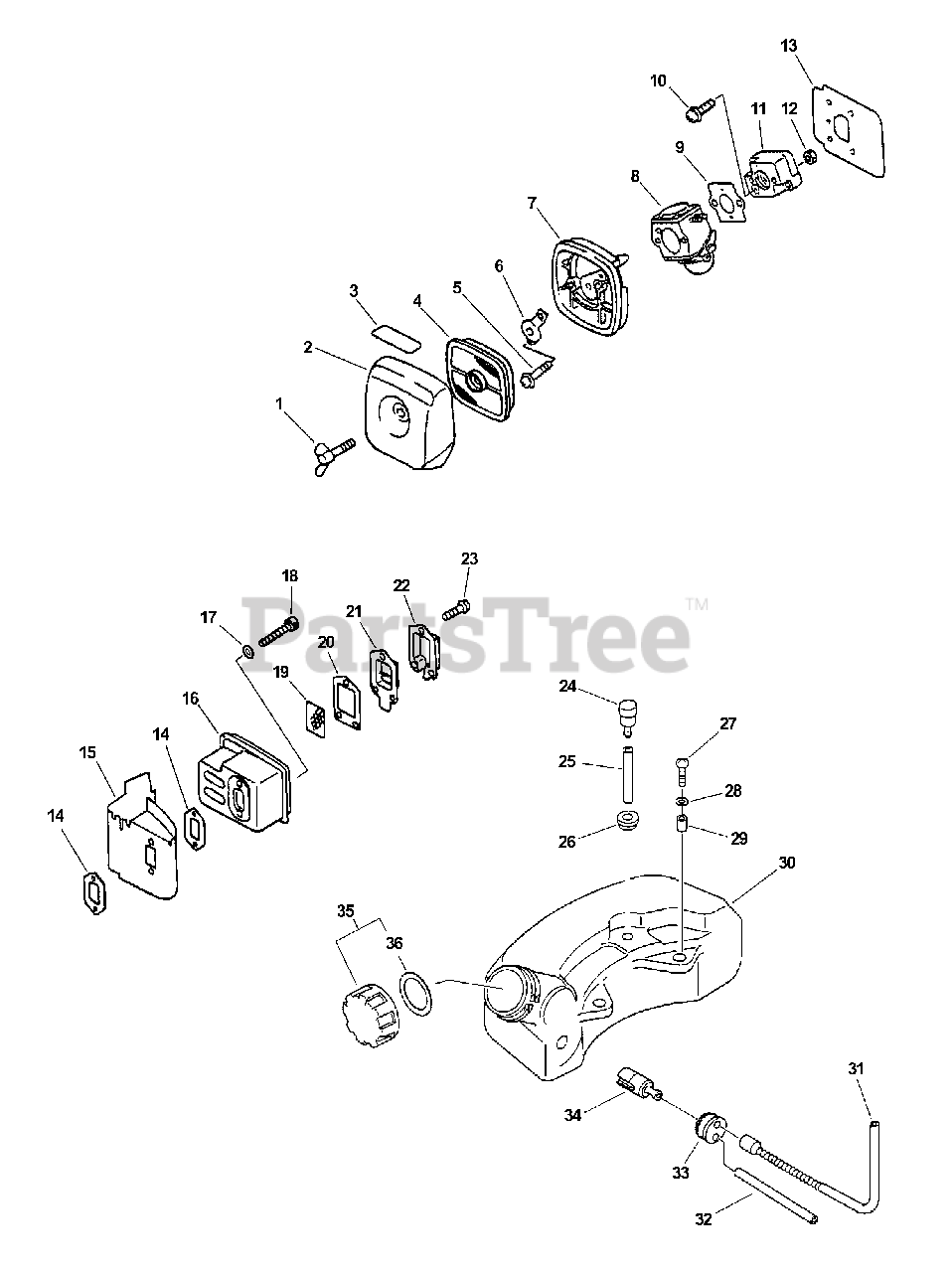

Intake, Exhaust, Fuel System Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 16

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: USE KIT P/N 90008

$7.49

$

In Stock, Qty 20+

0

5

Echo 90024205065

SCREW - 5X65

$0.99

$

In Stock, only 2 left!

0

6

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

7

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$12.99

$

In Stock, Qty 7

0

8

Echo 12520005962

CARBURETOR C1U-K51
(Superseded to 12520005963)

$63.99

$

In Stock, only 1 left!

0

9

Echo 13001642031

GASKET, INTAKE

Note: USE KIT P/N 88900008460

$1.49

$

In Stock, Qty 20+

0

10

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

11

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

12

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: USE KIT P/N 88900008460

$2.49

$

In Stock, only 2 left!

0

14

Echo V104000160

GASKET, EXHAUST

Note: USE KIT P/N 88900008460

$0.99

$

In Stock, Qty 16

0

15

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$4.99

$

In Stock, Qty 14

0

16

Echo 14580642030

MUFFLER

$46.99

$

In Stock, only 1 left!

0

17

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 12

0

19

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

20

Echo 14586642031

GASKET, EXHAUST

Note: USE KIT P/N 88900008460

$2.49

$

In Stock, Qty 5

0

21

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

0

22

Echo 14586308960

GUIDE, EXHAUST - OUTER

$5.49

$

Usually ships in 2-4 days

0

23

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

24

Echo A356000031

VENT, FUEL TANK

Note: USE KIT P/N 90010

$7.99

$

In Stock, Qty 20+

0

25

Echo 13201021160

PIPE - 3X6X35 -- BLACK
(Superseded to V471001180)

Note: RePower BULK OPTION: 90015

$1.99

$

In Stock, Qty 14

0

26

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

27

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

28

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

29

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

30

Echo 13100208960

TANK, FUEL
(Superseded to 13100208961)

Note: Includes ITEM 29

$

$

Not available

31

Echo 13201002160

PIPE, FUEL - CORRUGATED

$6.99

$

In Stock, only 4 left!

0

32

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 16

0

33

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

34

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: USE KIT P/N 90008

$5.49

$

In Stock, Qty 20+

0

35

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: USE KIT P/N 90010 - INCLUDES ITEM 36

$4.49

$

In Stock, only 1 left!

0

36

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available
