HC-234 - Echo Hedge Trimmer (SN: 06001001 - 06999999) Blades, Gear Case, Side Handle, Tools S/N: 06001001 - 06001299 Parts Diagram

Hedge Trimmer

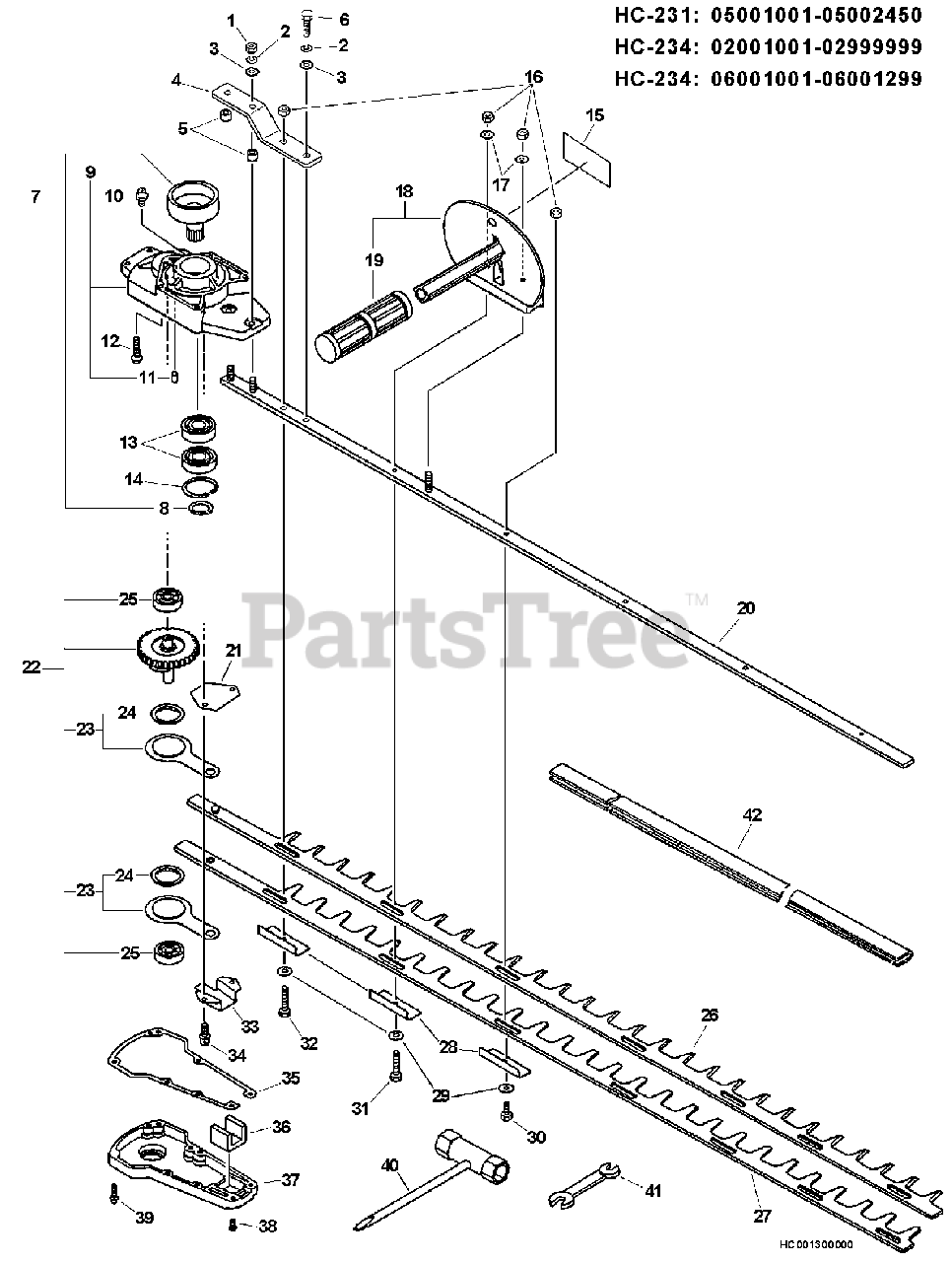

Blades, Gear Case, Side Handle, Tools S/N: 06001001 - 06001299 Parts Diagram

  • Title

1

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

3

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

4

Echo 69921308960

BRACKET, ANGLE

$5.99

$

Usually ships in 2-4 days

0

5

Echo 69911108960

SPACER

$8.49

$

Usually ships in 2-4 days

0

6

Echo 90010006010

BOLT - 6X10

$0.99

$

In Stock, Qty 10

0

7

Echo 17500301261

DRUM, CLUTCH

Note: Includes ITEM 8

$82.99

$

Usually ships in 2-4 days

0

8

Echo 90070100016

RING, RETAINING - 16

$1.49

$

Usually ships in 2-4 days

0

9

Echo 61040708561

CASE, GEAR
(Superseded to 61040708562)

Note: Includes ITEMS 10-11

$62.99

$

Usually ships in 2-4 days

0

10

Echo 88011010860

FITTING, GREASE

$5.49

$

Usually ships in 2-4 days

0

11

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

12

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 3 left!

0

13

Echo 90080206003

BEARING, BALL - 6003

$17.99

$

Usually ships in 2-4 days

0

14

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

15

Echo X505000270

LABEL - CAUTION
(Superseded to X505000271)

$3.99

$

Usually ships in 2-4 days

0

16

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

17

Echo 90060300006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

18

Echo 35120002060

HANDLE ASSY - FRONT

Note: Includes ITEM 19

$54.99

$

Usually ships in 2-4 days

0

19

Echo 35101201260

GRIP, HANDLE

$8.99

$

Usually ships in 2-4 days

0

20

Echo X425000051

SUPPORT, BLADE
(Superseded to X425000290)

$70.99

$

Usually ships in 2-4 days

0

21

Echo 61044008960

PLATE, GUIDE

$4.49

$

Usually ships in 2-4 days

0

22

Echo 61030209661

GEAR ASSY

Note: INCLUDES ITEMS 23-25

$213.99

$

Usually ships in 2-4 days

0

23

Echo 61030701261

CONNECTING ROD ASSY
(Superseded to Discontinued)

Note: Includes ITEM 24

$

$

Not available

24

Echo 61032701261

BEARING, NEEDLE

$19.99

$

In Stock, Qty 12

0

25

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

26

Echo X411000150

BLADE - 40" (101cm) -- LOWER
(Superseded to X411000540)

$68.99

$

Usually ships in 2-4 days

0

27

Echo X411000100

BLADE - 40" (101cm) -- LOWER
(Superseded to X411000560)

$69.99

$

Usually ships in 2-4 days

0

28

Echo 69921302062

INSULATOR
(Superseded to 69921302063)

$4.99

$

In Stock, only 2 left!

0

29

Echo 69911801261

WASHER

$0.99

$

In Stock, Qty 12

0

30

Echo 69911502062

BOLT

$4.99

$

Usually ships in 2-4 days

0

31

Echo 35102702060

BOLT

$6.49

$

In Stock, only 3 left!

0

32

Echo 69911508960

BOLT - 6

$1.99

$

In Stock, Qty 12

0

33

Echo 61044108960

GUIDE, BLADE

$5.99

$

Usually ships in 2-4 days

0

34

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

35

Echo 61041401260

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 12

0

36

Echo 61042601260

SEAL, FELT

$2.99

$

In Stock, only 1 left!

0

37

Echo 61043108960

LID, GEAR CASE
(Superseded to 61043108961)

$20.99

$

Usually ships in 2-4 days

0

38

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

39

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

40

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0

41

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

42

Echo 89852308960

COVER, BLADE

$24.99

$

Usually ships in 2-4 days

0
