HC-233 - Echo Hedge Trimmer (SN: 06001001 - 06999999) Handle, Ignition Switch, Throttle Cable S/N: 06002601 - 06003300 Parts Diagram

Hedge Trimmer

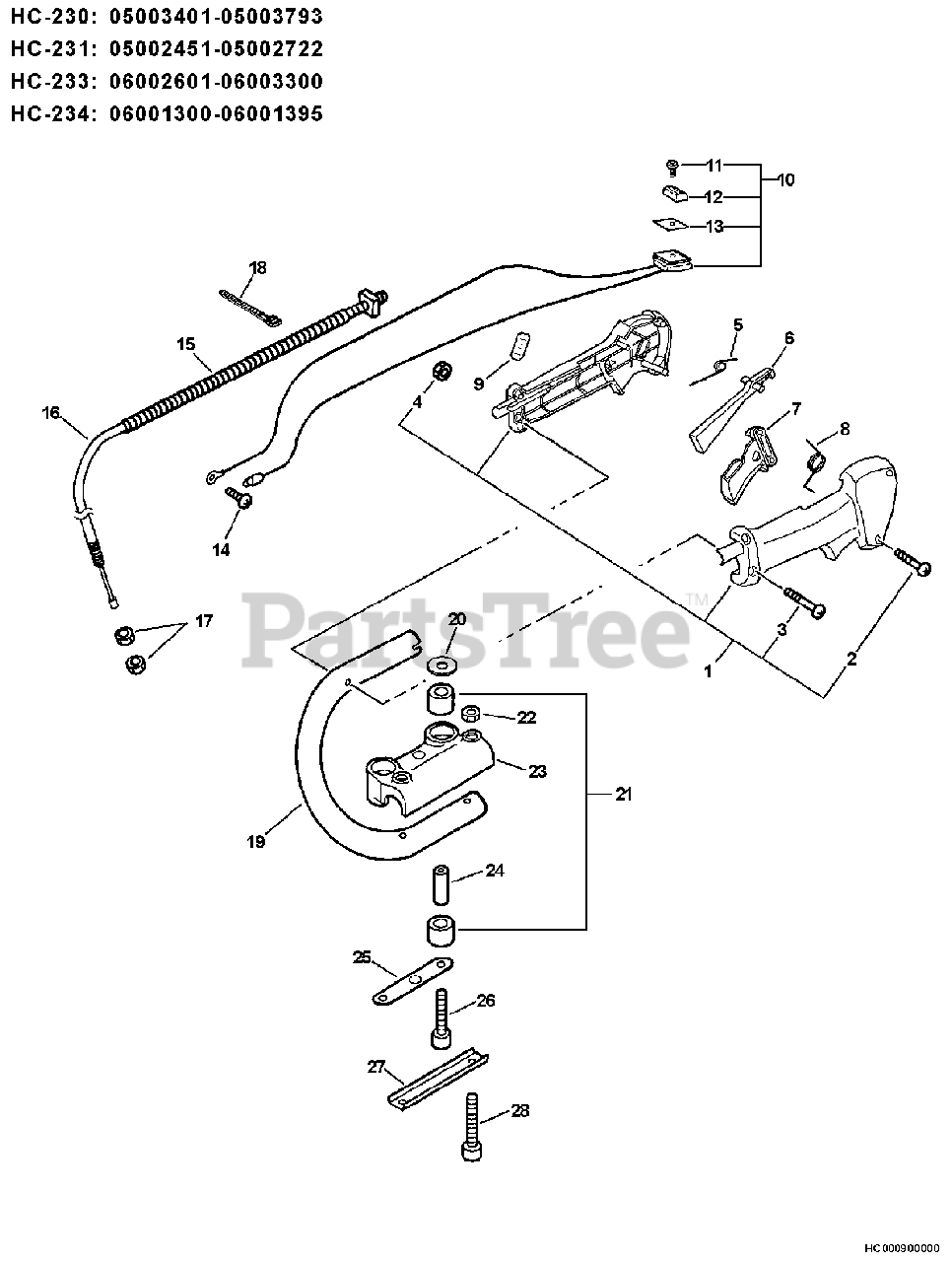

Handle, Ignition Switch, Throttle Cable S/N: 06002601 - 06003300 Parts Diagram

  • Title
1

Echo P021002611

CONTROL HANDLE ASSY
(Superseded to P021002612)

Note: INCLUDES ITEMS 2-4

$33.99

$

In Stock, only 3 left!

0

2

Echo 90025304016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

3

Echo 90022005030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

4

$0.99

$

In Stock, Qty 20+

0

5

Echo V452000050

SPRING, LOCKOUT LEVER

$1.99

$

In Stock, Qty 8

0

6

Echo C460000011

LEVER, TRIGGER LOCKOUT

$4.99

$

In Stock, Qty 6

0

7

Echo C450000022

TRIGGER, THROTTLE

$11.99

$

In Stock, only 3 left!

0

8

Echo V452000060

SPRING, TRIGGER

$1.49

$

In Stock, Qty 15

0

$2.49

$

In Stock, only 1 left!

0

10

Echo A440000121

IGNITION SWITCH ASSY

Note: Includes ITEMS 11-13

$13.99

$

Usually ships in 2-4 days

0

11

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

12

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

13

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 13

0

14

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

15

Echo V475000840

TUBE, PROTECTIVE - CORRUGATED
(Superseded to Discontinued)

$

$

Not available

16

Echo V430000090

CABLE, THROTTLE

$16.99

$

In Stock, only 1 left!

0

17

$0.99

$

In Stock, only 3 left!

0

18

Echo 17812143230

TIE, CABLE - SMALL

$3.49

$

In Stock, only 4 left!

0

19

Echo C410000170

HANDLE - REAR

$37.99

$

Usually ships in 2-4 days

0

20

$0.99

$

In Stock, Qty 20+

0

21

$2.99

$

In Stock, Qty 20+

0

22

$0.99

$

In Stock, Qty 20+

0

23

Echo 35121707761

BRACKET, HANDLE - UPPER

$13.99

$

Usually ships in 2-4 days

0

24

Echo 35124101260

SPACER
(Superseded to 35124101261)

$2.99

$

In Stock, Qty 18

0

25

$2.49

$

In Stock, only 2 left!

0

26

Echo 90016205045

SCREW - 5X40

$1.49

$

In Stock, only 3 left!

0

27

Echo 35124301260

BRACKET, HANDLE - LOWER

$2.99

$

Usually ships in 2-4 days

0

28

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 6

0
