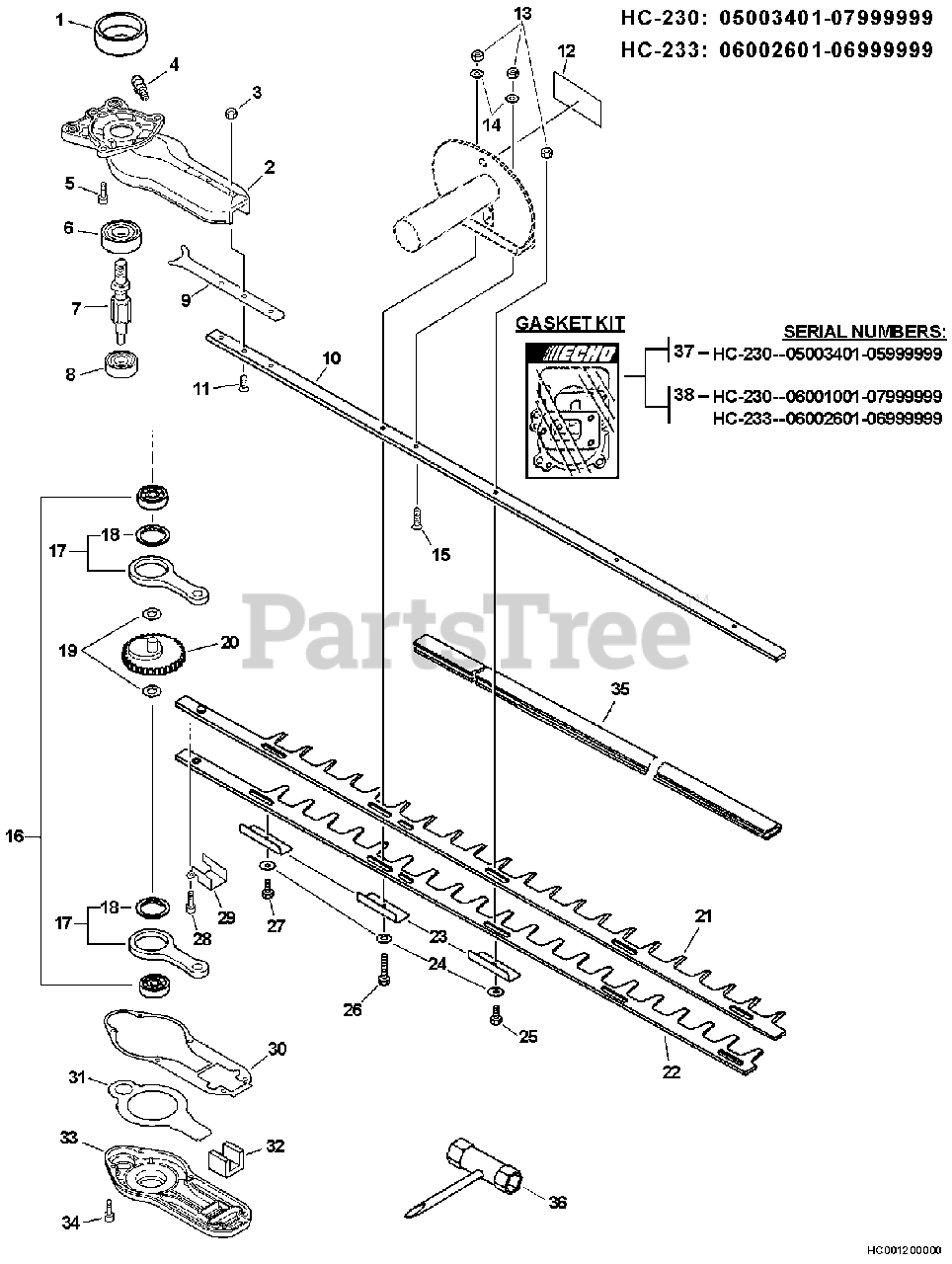

HC-233 - Echo Hedge Trimmer (SN: 06001001 - 06999999) Blades, Gear Case, Tools S/N: 06002601 - 06999999 Parts Diagram

Hedge Trimmer

Blades, Gear Case, Tools S/N: 06002601 - 06999999 Parts Diagram

  • Title

1

Echo A556000301

DRUM, CLUTCH

$36.99

$

In Stock, only 1 left!

0

2

Echo C531000210

CASE, GEAR - UPPER
(Superseded to C531000270)

$72.99

$

Usually ships in 2-4 days

0

3

Echo 90051800006

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 11

0

4

Echo 88011010860

FITTING, GREASE

$5.49

$

Usually ships in 2-4 days

0

5

Echo 90016206018

SCREW - 6X18

$1.49

$

Usually ships in 2-4 days

0

6

Echo 90081206200

BEARING, BALL - 6200

$12.99

$

Usually ships in 2-4 days

0

7

Echo V650000160

GEAR - SPUR

$39.99

$

Usually ships in 2-4 days

0

8

Echo 90080400608

BEARING, BALL - 608ZZ

$12.99

$

In Stock, only 1 left!

0

9

Echo V150001240

PLATE

$9.99

$

Usually ships in 2-4 days

0

10

Echo X425000130

SUPPORT, BLADE - 30" (76cm)
(Superseded to X425000270)

$48.99

$

Usually ships in 2-4 days

0

11

Echo 9110306030

SCREW - 6X30

$1.99

$

In Stock, Qty 12

0

12

Echo X505000270

LABEL - CAUTION
(Superseded to X505000271)

$3.99

$

Usually ships in 2-4 days

0

13

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

14

Echo 90060300006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

15

Echo 9110306030

SCREW - 6X30

$1.99

$

In Stock, Qty 12

0

16

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

17

Echo C532000080

ROD, CONNECTING
(Superseded to P021008400)

Note: Includes ITEM 18

$65.99

$

Usually ships in 2-4 days

0

18

Echo 61032701261

BEARING, NEEDLE

$19.99

$

In Stock, Qty 12

0

19

Echo V307000050

WASHER - 10

$4.99

$

In Stock, only 3 left!

0

20

Echo V060000030

GEAR - SPUR
(Superseded to V060000050)

$89.99

$

Usually ships in 2-4 days

0

21

Echo X411000200

BLADE - 30" (76mm) -- UPPER
(Superseded to X411000420)

$57.99

$

In Stock, only 2 left!

0

22

Echo X411000210

BLADE - 30" (76mm) -- LOWER
(Superseded to X411000430)

$57.99

$

In Stock, only 2 left!

0

23

Echo 69921302062

INSULATOR
(Superseded to 69921302063)

$4.99

$

In Stock, only 2 left!

0

24

Echo 69911801261

WASHER

$0.99

$

In Stock, Qty 12

0

25

Echo 69911502062

BOLT

$4.99

$

In Stock, Qty 6

0

26

Echo 35102702060

BOLT

$6.49

$

In Stock, only 3 left!

0

27

Echo 69911508960

BOLT - 6

$1.99

$

In Stock, Qty 12

0

28

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

29

Echo C538000090

GUIDE, BLADE

$9.49

$

Usually ships in 2-4 days

0

30

Echo V110000030

GASKET, GEAR CASE

$7.99

$

In Stock, Qty 9

0

31

Echo C542000020

PLATE, GEAR CASE

$11.99

$

Usually ships in 2-4 days

0

32

Echo V541000100

SEAL

$3.49

$

Usually ships in 2-4 days

0

33

Echo C531000220

CASE, GEAR - LOWER
(Superseded to C531000280)

$44.99

$

In Stock, only 2 left!

0

34

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

35

Echo 89852302961

COVER, BLADE

$20.99

$

Usually ships in 2-4 days

0

36

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0

37

Echo P021006450

GASKET KIT

$32.99

$

Usually ships in 2-4 days

0

38

Echo P021006470

GASKET KIT

$32.99

$

Usually ships in 2-4 days

0
