HC-233 - Echo Hedge Trimmer (SN: 02001001 - 02999999) Fan Case, Ignition, Clutch Parts Diagram

Hedge Trimmer

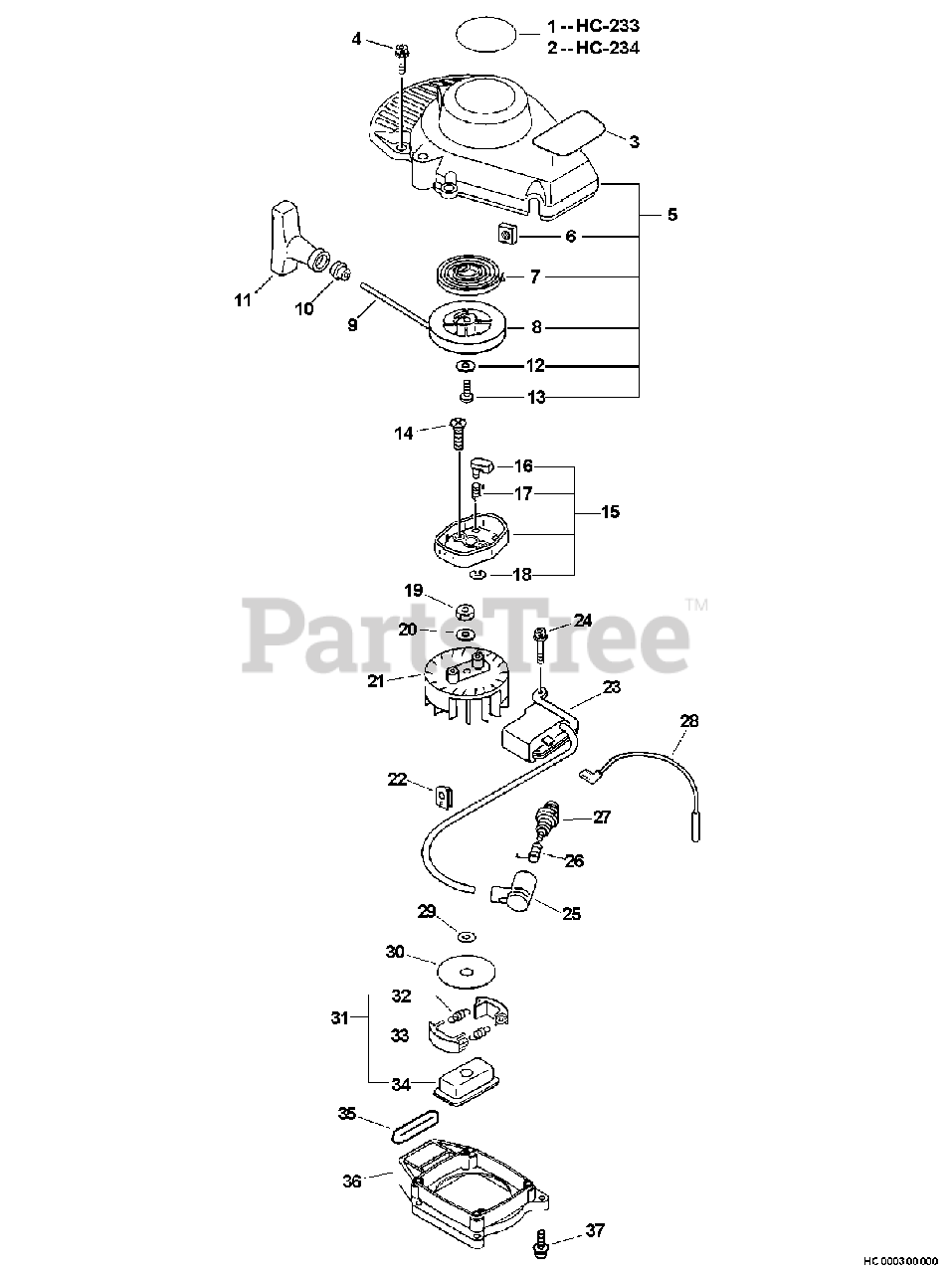

Fan Case, Ignition, Clutch Parts Diagram

  • Title
1

Echo X503001610

LABEL - MODEL HC-233

$4.49

$

Usually ships in 2-4 days

0

2

Echo X503001620

LABEL - MODEL HC-234
(Superseded to Discontinued)

$

$

Not available

3

Echo X505000280

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0

4

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

5

Echo A051000020

STARTER ASSY

Note: Includes ITEMS 6-13

$87.99

$

Usually ships in 2-4 days

0

6

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 17722040630

SPRING, REWIND

$14.99

$

In Stock, Qty 11

0

8

Echo 17721540630

REEL, ROPE

$9.99

$

In Stock, Qty 5

0

9

Echo 17722610120

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$5.99

$

In Stock, Qty 5

0

10

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

11

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

12

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

13

$3.49

$

In Stock, only 1 left!

0

14

Echo 90021206014

SCREW - 6X14

$0.99

$

Usually ships in 2-4 days

0

15

Echo A052000000

STARTER PAWL ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 16-18

$

$

Not available

16

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, Qty 6

0

17

Echo 17723411410

SPRING, RETURN

$3.49

$

Usually ships in 2-4 days

0

18

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

19

Echo 90051200008

NUT - LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

20

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

21

Echo A409000020

FLYWHEEL

$68.99

$

Usually ships in 2-4 days

0

22

$1.49

$

In Stock, only 2 left!

0

23

Echo A411000010

COIL, IGNITION

$83.99

$

Usually ships in 2-4 days

0

24

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

25

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 11

0

26

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

27

Echo 99944500071

SPARK PLUG -- BPM-7Y

$2.49

$

In Stock, Qty 8

0

28

Echo 16201056430

LEAD - IGNITION

$6.49

$

In Stock, only 4 left!

0

29

Echo 17521410130

WASHER
(Superseded to 17504403430)

$6.99

$

Usually ships in 2-4 days

0

30

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

31

Echo 17500002962

CLUTCH ASSY

Note: INCLUDES ITEMS 32-34

$62.99

$

Usually ships in 2-4 days

0

32

Echo 17501805960

SPRING, CLUTCH

$1.99

$

In Stock, Qty 5

0

33

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

34

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

35

Echo 13192061830

CUSHION, FUEL TANK

$5.99

$

Usually ships in 2-4 days

0

36

Echo A570000020

CASE, CLUTCH

$14.99

$

Usually ships in 2-4 days

0

37

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0
