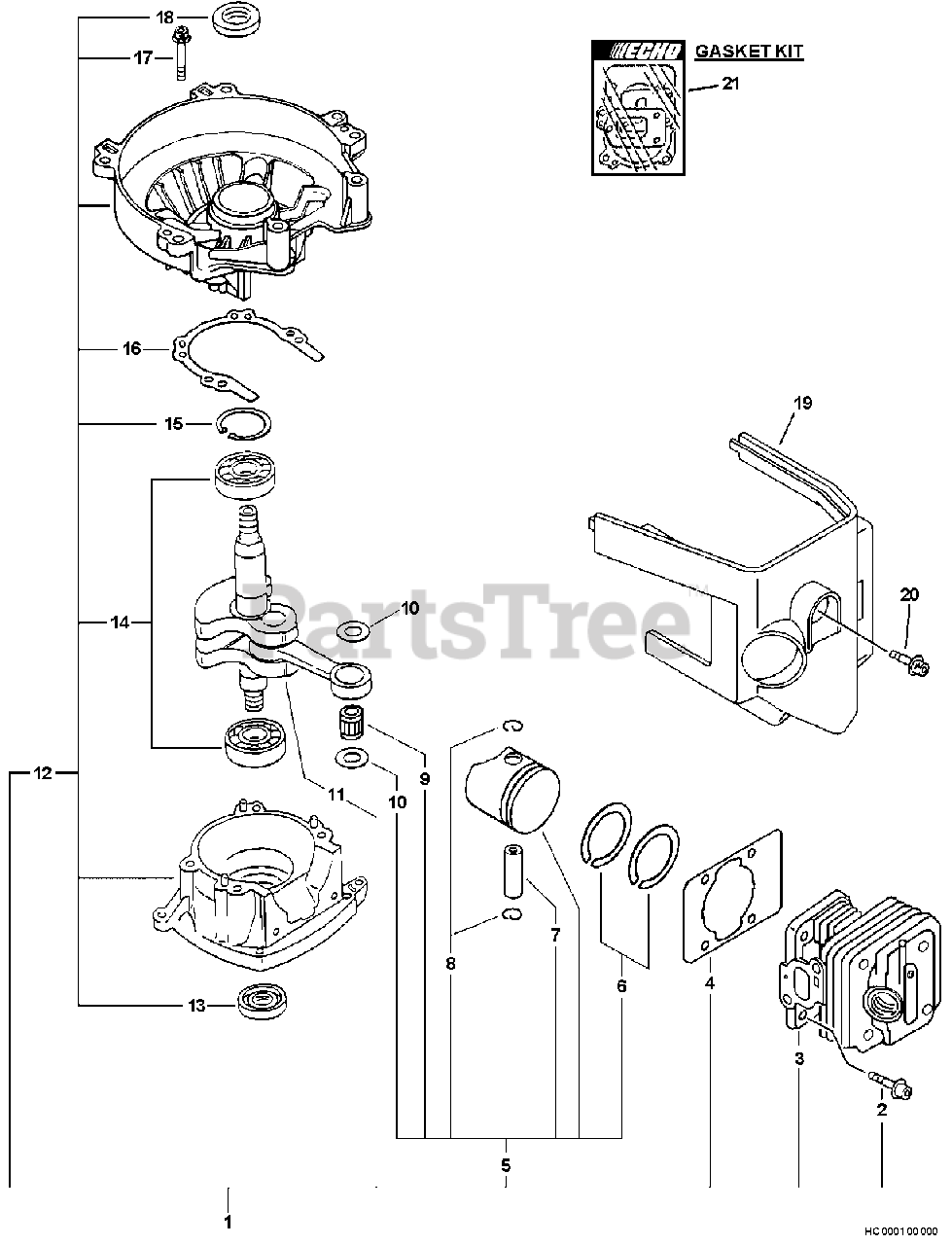

HC-233 - Echo Hedge Trimmer (SN: 02001001 - 02999999) Engine, Short Block, Cylinder Cover Parts Diagram

Hedge Trimmer

Engine, Short Block, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1046

SHORT BLOCK -- SB1046

Note: Includes ITEM 2-18

$179.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000074

CYLINDER
(Superseded to A130000075)

$157.99

$

Usually ships in 2-4 days

0

4

Echo V100000010

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

5

Echo P021001080

PISTON KIT
(Superseded to P021001081)

Note: Includes ITEMS 6-10

$74.99

$

Usually ships in 2-4 days

0

6

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

9

Echo 10001255930

BEARING, NEEDLE
(Superseded to V553000020)

$10.99

$

In Stock, only 1 left!

0

10

Echo 10001455930

SPACER, PISTON

$3.49

$

Usually ships in 2-4 days

0

11

Echo A011000060

CRANKSHAFT ASSY
(Superseded to A011000061)

$175.99

$

Usually ships in 2-4 days

0

12

Echo P021001090

CRANKCASE KIT

Note: Includes ITEMS 13-18

$161.99

$

Usually ships in 2-4 days

0

13

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, Qty 10

0

14

Echo 90080036001

BEARING, BALL - 6001C3

$9.49

$

In Stock, only 3 left!

0

15

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 13

0

16

Echo 10024255930

GASKET, CRANKCASE

$3.49

$

In Stock, only 1 left!

0

17

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

18

Echo 10021228230

SEAL, OIL - 12

$4.49

$

In Stock, only 2 left!

0

19

Echo A160000080

COVER, ENGINE

$16.99

$

Usually ships in 2-4 days

0

20

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

21

Echo P021002240

GASKET KIT
(Superseded to P021002241)

$27.99

$

Usually ships in 2-4 days

0
