HC-231 - Echo Hedge Trimmer (SN: S78113001001 - S78113999999) Intake Parts Diagram

Hedge Trimmer

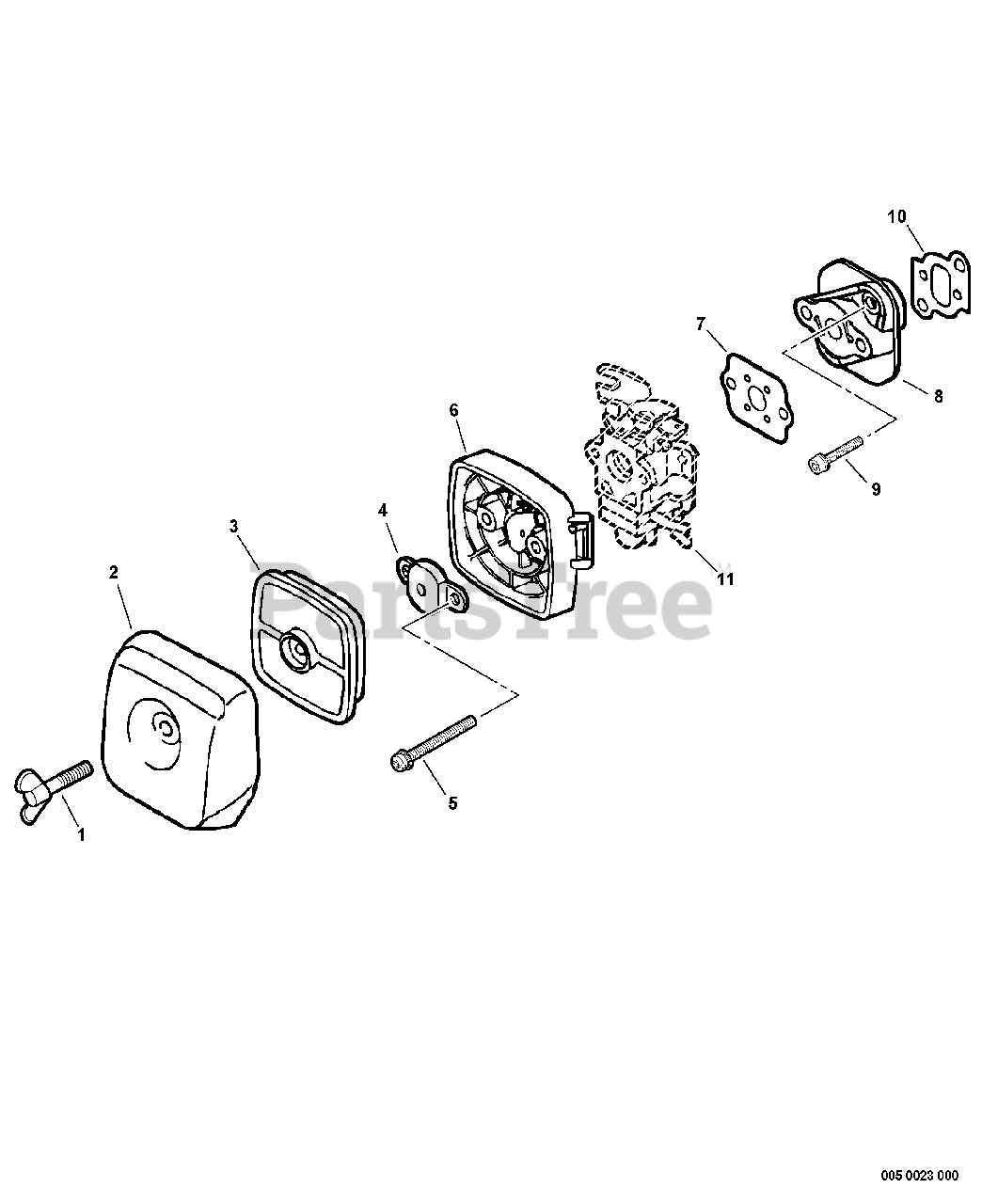

Intake Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

4

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

5

Echo 90024205060

SCREW - 5X60

$0.99

$

In Stock, Qty 12

0

6

Echo P021000991

CASE, AIR FILTER - GRAY

$9.49

$

In Stock, Qty 20+

0

7

Echo V103000010

GASKET, INTAKE

$1.99

$

Usually ships in 2-4 days

0

8

Echo A200000010

INSULATOR, INTAKE

$12.99

$

Usually ships in 2-4 days

0

9

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

10

Echo 13001055930

GASKET, INTAKE

$1.49

$

In Stock, Qty 17

0

11

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

12

Echo 90074

RePower TUNE-UP KIT
(Superseded to 90152)

Note: Includes ITEM 3

$20.99

$

In Stock, Qty 19

0

13

Echo 90074C

RePower TUNE-UP KIT
(Superseded to 90152)

Note: Includes ITEM 3

$20.99

$

In Stock, Qty 19

0
