HC-231 - Echo Hedge Trimmer (SN: 06001001 - 06999999) Engine, Short Block, Cylinder Cover Parts Diagram

Hedge Trimmer

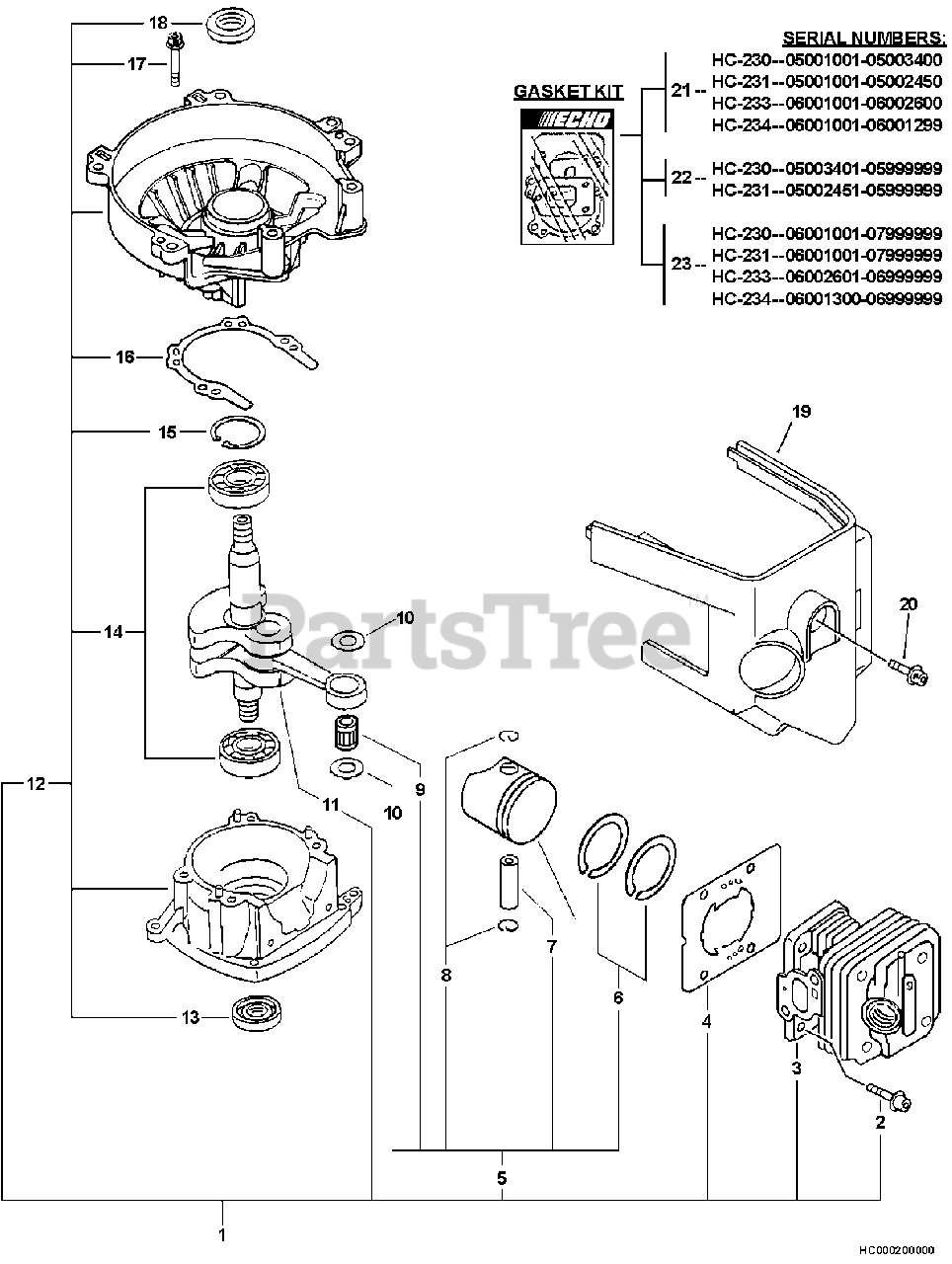

Engine, Short Block, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1063

SHORT BLOCK -- SB1063

Note: Includes ITEM 2-18

$181.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000341

CYLINDER

$166.99

$

Usually ships in 2-4 days

0

4

Echo V100000060

GASKET, CYLINDER

$6.49

$

In Stock, Qty 6

0

5

Echo P021003860

PISTON KIT
(Superseded to P021003861)

Note: Includes ITEMS 6-10

$58.99

$

Usually ships in 2-4 days

0

6

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

9

Echo V553000020

BEARING, NEEDLE - 8
(Superseded to V553000140)

$10.99

$

In Stock, only 1 left!

0

10

Echo 10001455930

SPACER, PISTON

$3.49

$

Usually ships in 2-4 days

0

11

Echo A011000061

CRANKSHAFT ASSY
(Superseded to A011000062)

$175.99

$

Usually ships in 2-4 days

0

12

Echo P021001091

CRANKCASE KIT

Note: Includes ITEMS 13-18

$

$

Currently unavailable

13

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, only 1 left!

0

14

Echo 90080036001

BEARING, BALL - 6001C3

$9.49

$

In Stock, only 1 left!

0

15

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 15

0

16

Echo 10024255930

GASKET, CRANKCASE

$3.49

$

In Stock, only 1 left!

0

17

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

18

Echo 10021228230

SEAL, OIL - 12

$4.49

$

In Stock, only 2 left!

0

19

Echo A160000080

COVER, ENGINE

$16.99

$

Usually ships in 2-4 days

0

20

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

21

Echo P021003880

GASKET KIT

$35.99

$

Usually ships in 2-4 days

0

22

Echo P021006450

GASKET KIT

$32.99

$

Usually ships in 2-4 days

0

23

Echo P021006470

GASKET KIT

$32.99

$

Usually ships in 2-4 days

0
