HC-230 - Echo Hedge Trimmer (SN: S76512001001 - S76512999999) Gear Case, Blades, Front Handle Parts Diagram

Hedge Trimmer

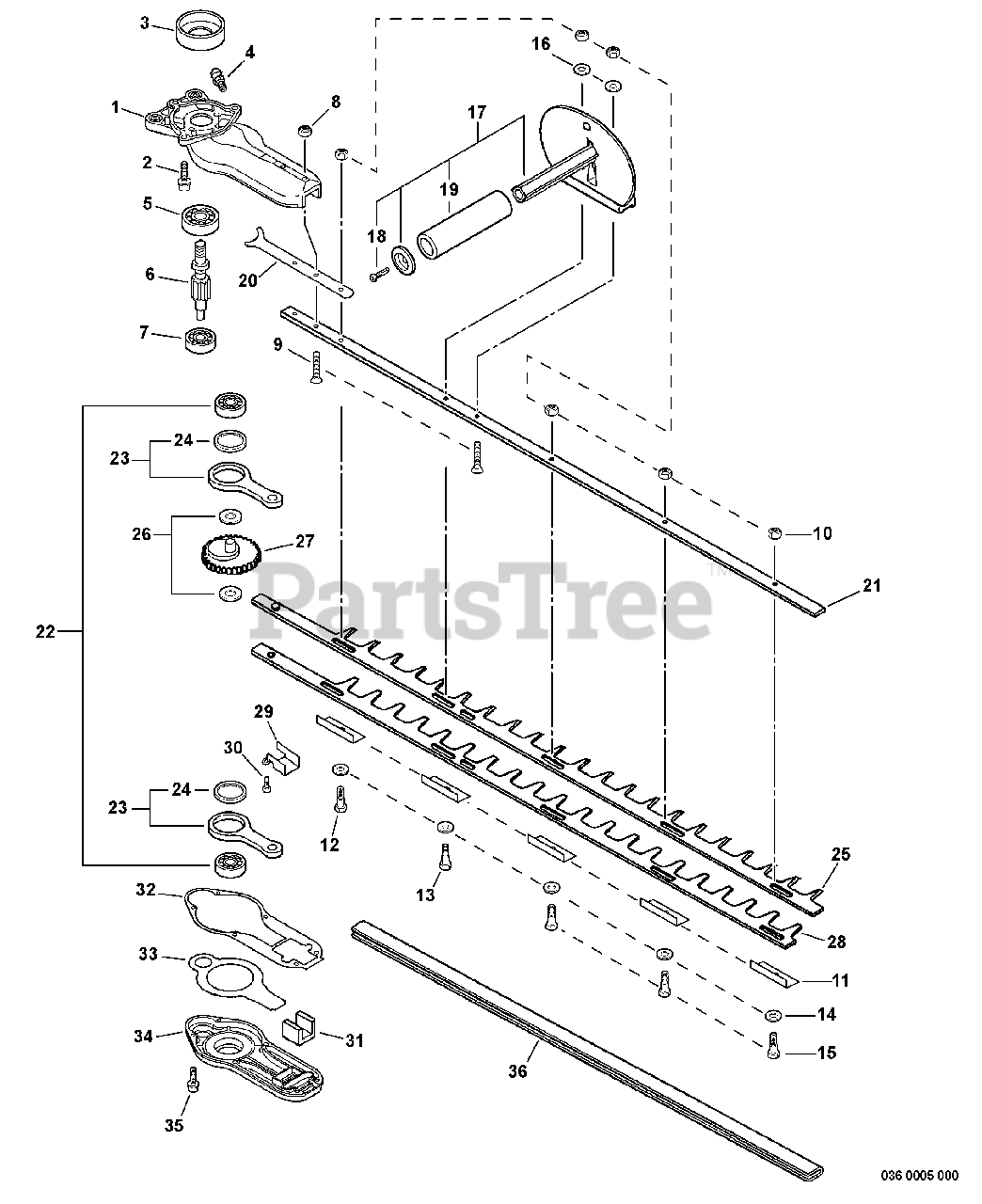

Gear Case, Blades, Front Handle Parts Diagram

  • Title
1

Echo C531000270

CASE, GEAR - UPPER

$72.99

$

Usually ships in 2-4 days

0

2

Echo 90016206018

SCREW - 6X18

$1.49

$

Usually ships in 2-4 days

0

3

Echo A556000301

DRUM, CLUTCH

$36.99

$

In Stock, only 1 left!

0

4

Echo 88011010860

FITTING, GREASE

$5.49

$

Usually ships in 2-4 days

0

5

Echo 90081206200

BEARING, BALL - 6200

$12.99

$

Usually ships in 2-4 days

0

6

Echo V650000160

GEAR - SPUR

$39.99

$

Usually ships in 2-4 days

0

7

Echo 90080400608

BEARING, BALL - 608ZZ

$12.99

$

In Stock, only 1 left!

0

8

Echo 90051800006

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 13

0

9

Echo 9110306030

SCREW - 6X30

$1.99

$

In Stock, Qty 12

0

10

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

11

Echo 69921302063

INSULATOR

$4.99

$

In Stock, only 2 left!

0

12

Echo 69911508960

BOLT - 6

$1.99

$

In Stock, Qty 12

0

$6.49

$

In Stock, only 3 left!

0

14

$0.99

$

In Stock, Qty 12

0

$4.99

$

In Stock, Qty 6

0

16

Echo 90060300006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

17

Echo 35120007361

HANDLE ASSY - FRONT
(Superseded to 35120007362)

Note: INCLUDES ITEMS 18-19

$22.99

$

Usually ships in 2-4 days

0

18

Echo 90025305014

SCREW - 5X14

$1.49

$

In Stock, Qty 6

0

19

Echo 35101207361

GRIP, HANDLE

$7.99

$

In Stock, Qty 5

0

20

$9.99

$

Usually ships in 2-4 days

0

21

Echo X425000270

SUPPORT, BLADE - 30" (76cm)

$48.99

$

Usually ships in 2-4 days

0

22

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

23

Echo C532000080

ROD, CONNECTING
(Superseded to P021008400)

Note: Includes ITEM 24

$65.99

$

In Stock, only 1 left!

0

24

Echo 61032701261

BEARING, NEEDLE

$19.99

$

In Stock, Qty 12

0

25

Echo X411000420

BLADE - 30" (76mm) -- UPPER
(Superseded to X411000730)

$57.99

$

Usually ships in 2-4 days

0

26

Echo V307000050

WASHER - 10

$4.99

$

In Stock, only 3 left!

0

27

Echo V060000030

GEAR - SPUR
(Superseded to V060000050)

$89.99

$

Usually ships in 2-4 days

0

28

Echo X411000430

BLADE - 30" (76mm) -- LOWER
(Superseded to X411000740)

$57.99

$

In Stock, only 2 left!

0

29

Echo C538000090

GUIDE, BLADE

$9.49

$

Usually ships in 2-4 days

0

30

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

31

$3.49

$

Usually ships in 2-4 days

0

32

Echo V110000030

GASKET, GEAR CASE

$7.99

$

In Stock, Qty 10

0

33

Echo C542000020

PLATE, GEAR CASE

$11.99

$

Usually ships in 2-4 days

0

34

Echo C531000280

CASE, GEAR - LOWER

$44.99

$

In Stock, only 2 left!

0

35

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

36

Echo 89852302961

COVER, BLADE

$20.99

$

Usually ships in 2-4 days

0
